Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 21, 2017, 08:52 AM

  • 0_29 0285 _21092017_020843.mp4

Date
09/21/2017
W/O
658119
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00375
PipeID
P24195
Time
1:52 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4886
Sewer Name
29 ORANGE AVENUE SEWER
City
SIGNAL HILL
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 29
Page No.
03
Purpose
Routine Assessment
Project
WO_658119_TV29040_SEP2017
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Width
8 in.
Upstream MH
29 0285
Downstream MH
0
Dir. of Survey
Upstream
Length Surveyed
312.5 ft.
Total Length
312.5 ft.
Structural Index
3
Structural Quick
3J00
Structural Rating
162
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
162
Pipe schematic from manhole 29 0285 to 0
MH: 29 0285MH: 0upstream0 ft. AEP - End of Pipe - 00 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: NO, 6"34.7 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish37.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"40.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"58.3 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: NO, 6"66.7 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: NO, 6"121 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"147.9 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: NO, 6"189.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"246.4 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"252 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"301.9 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start305.4 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES305.9 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"312.5 ft. MWM - Water Mark, 10 %of cross sectional area312.5 ft. AMH - Downstream Manhole, Survey Begins - 29 0285312.5 ft. MWL - Water Level, 5 %of cross sectional area

Observation photos (2)

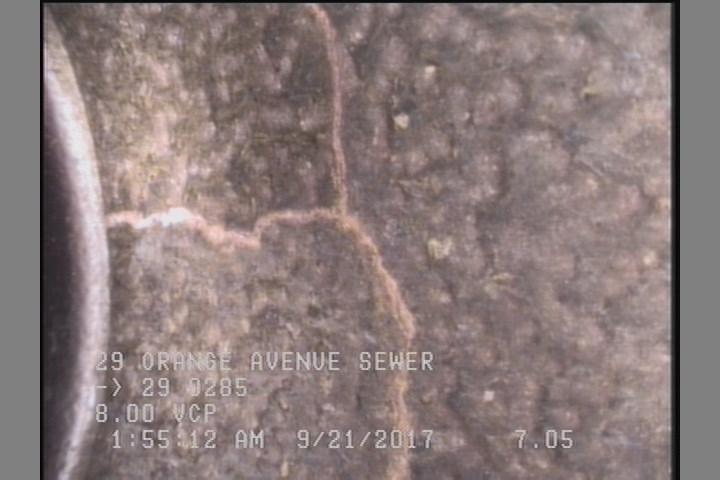

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    7.1 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

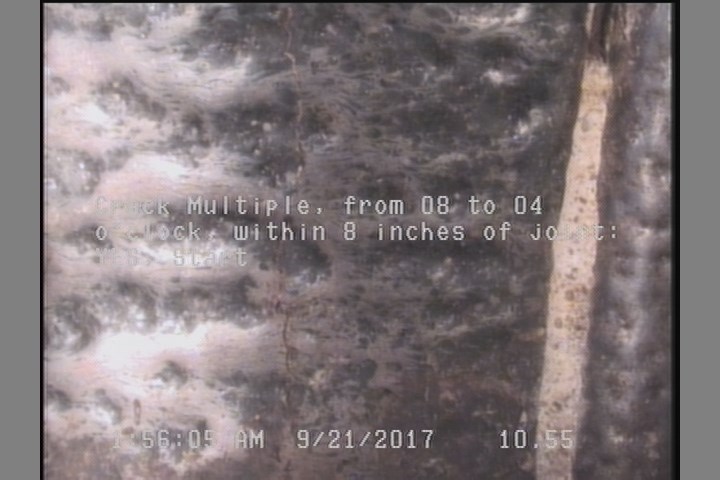

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    10.6 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P24195Work order 658119

Observations (18)

DistanceCodeObservation
274.8TFC—
0MWM—
254.2TFC—
312.5AEP0
7.1CM—
10.6CM—
60.5TF—
6.6TFA—
66.1TF—
272.2TFC—
245.8TF—
191.5TF—
277.8CM—
164.6TF—
123.1TFC—
0AMH29 0285
312.5TF—
0MWL—

Properties (5)

additional_info
SC345946
custom_field_two
3
customer
LACSD
datetime
2017-09-21T01:52:55-07:00
year_laid
39295
