Wastewater/Activity/PacpInspection/1.0Sep 27, 2017, 10:38 AM
05 0714_05 0713_27092017_033915.mpg
- Date
- 09/27/2017
- W/O
- 658045
- Weather
- Dry
- Operator/Surveyor
- CORTEZ ESTEBAN
- Sewer ID
- Z00521
- PipeID
- P05937
- Time
- 3:38 AM
- Certificate
- U-209-8148
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4942
- Sewer Name
- 05 SOUTH INGLEWOOD-ORANGE AVENUE TRUNK, EXTENSION #1
- City
- INGLEWOOD
- Loc. details
- Main Highway - Suburban/Rural
- Location Code
- B
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 07
- Purpose
- Routine Assessment
- Project
- WO_658045_TV05308_SEP2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 8 in.
- Width
- 8 in.
- Upstream MH
- 05 0713
- Downstream MH
- 05 0714
- Dir. of Survey
- Upstream
- Length Surveyed
- 359.7 ft.
- Total Length
- 359.7 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2M00
- O&M Rating
- 140
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 140
Observation photos (2)

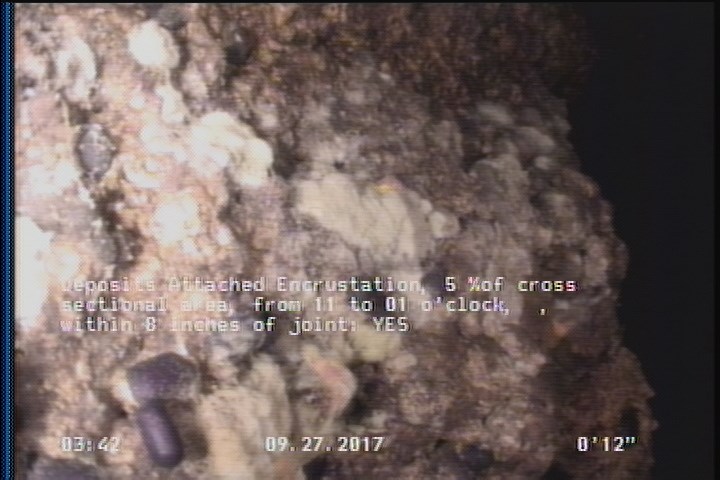

1 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 11 to 01 o'clock, , within 8 inches of joint: YES

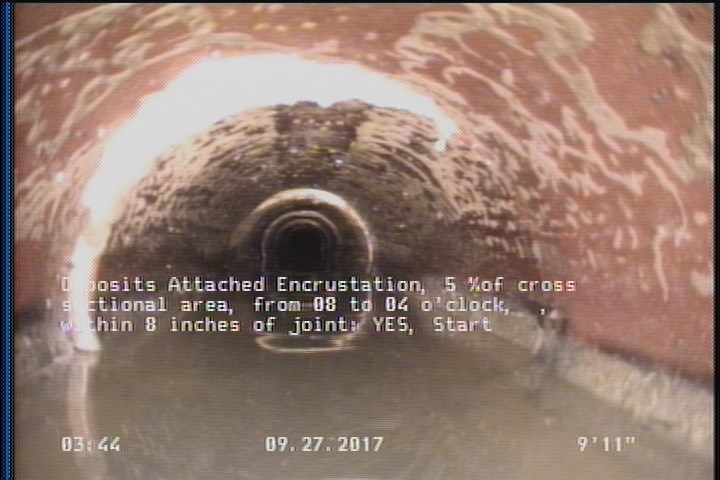

9.9 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 96 | MGO | — |
| 1 | DAE | — |
| 359.7 | AMH | 05 0714 |
| 0 | AMH | 05 0713 |
| 9.9 | DAE | — |
| 0 | MWL | — |
| 0.1 | MWM | — |
| 0 | MGO | SERVICE CONNECTION AT 3 O' CLOCK AT MH |
| 356.8 | DAE | — |
Properties (4)
- additional_info
- SC345850
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-09-27T03:38:46-07:00
