Wastewater/Activity/PacpInspection/1.0Sep 15, 2017, 08:15 AM
22 0914A_22 0914 _09152017_011628.mp4
- Date
- 09/15/2017
- W/O
- 657826
- Weather
- Dry
- Operator/Surveyor
- JUAN B
- Sewer ID
- Z00799
- PipeID
- P17286
- Time
- 1:15 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K4973
- Sewer Name
- 22 CONEY TRUNK, SECTS 2&3
- City
- AZUSA
- Loc. details
- Parking Lot
- Location Code
- G
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 11
- Purpose
- Routine assessment
- Project
- 657826
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 22 0914A
- Downstream MH
- 22 0914
- Dir. of Survey
- Downstream
- Length Surveyed
- 397.4 ft.
- Total Length
- 397.4 ft.
- Structural Index
- 2
- Structural Quick
- 2111
- Structural Rating
- 3
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 5
Observation photos (3)

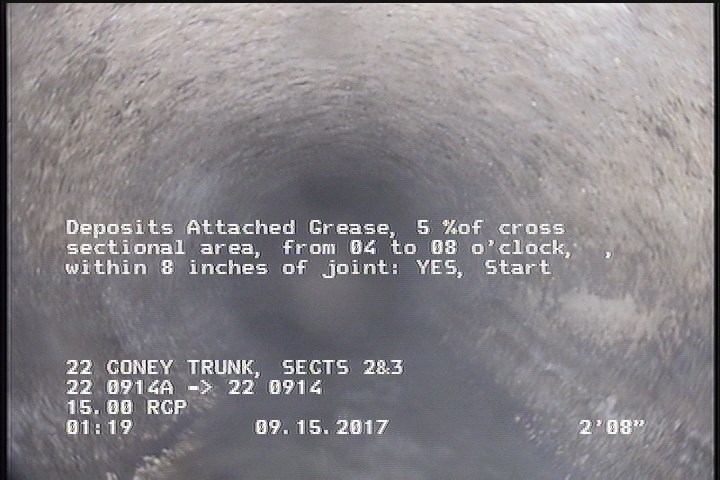

2.7 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

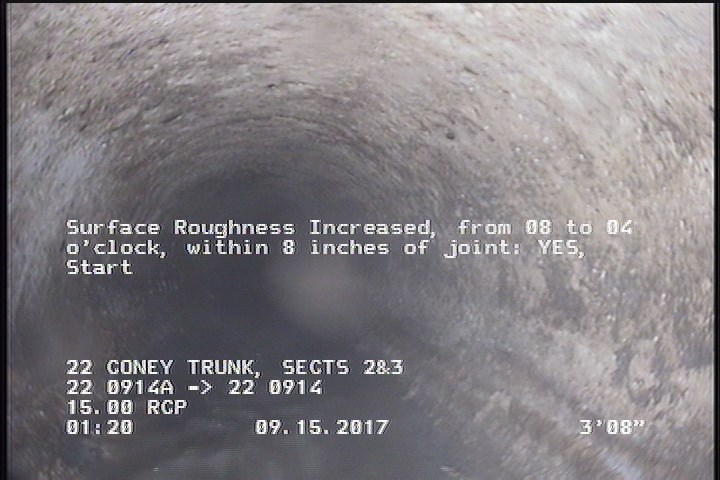

3.6 ft. - Surface Roughness Increased, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

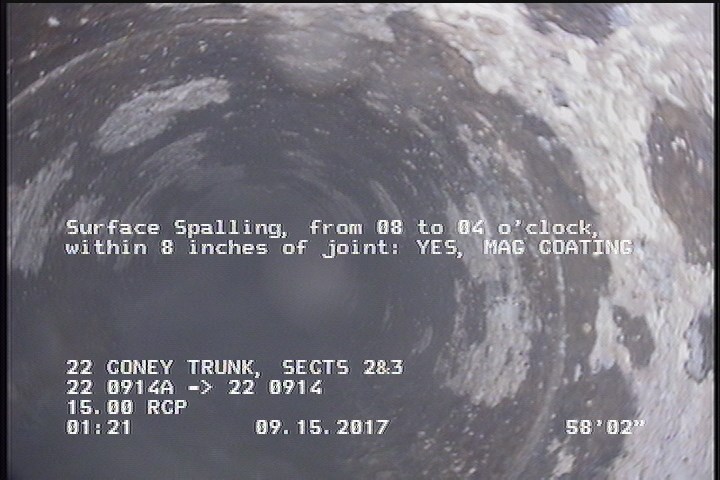

58.1 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - MAG COATING
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 0 | AMH | 22 0914A |
| 397.4 | DAGS | — |
| 397.4 | SRI | — |
| 397.4 | AMH | 22 0914 |
| 217.7 | MGO | RESUMING VIDEO |
| 58.1 | SSS | MAG COATING |
| 3.6 | SRI | — |
| 397.4 | SSS | — |
| 0 | MWL | — |
| 2.7 | DAGS | — |
| 295.5 | TFC | — |
| 1 | MGO | CONNECTION AT 3 OC |
Properties (4)
- additional_info
- SC345965
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-09-15T01:15:58-07:00
