Wastewater/Activity/PacpInspection/1.0Sep 26, 2017, 07:37 AM
05 2231_05 2297 _26092017_004739.mp4
- Date
- 09/26/2017
- W/O
- 655127
- Weather
- Dry
- Operator/Surveyor
- R.VARGAS
- Sewer ID
- Z00429
- PipeID
- P07421
- Time
- 12:37 AM
- Certificate
- U-209-211
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4276
- Sewer Name
- 05 COLDEN AVENUE TRUNK
- City
- LOS ANGELES
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 09
- Purpose
- Routine Assessment
- Project
- WO_655127_TV05142_SEP2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 05 2231
- Downstream MH
- 05 2297
- Dir. of Survey
- Downstream
- Length Surveyed
- 292.3 ft.
- Total Length
- 292.3 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2J11
- O&M Rating
- 115
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 115
Observation photos (2)

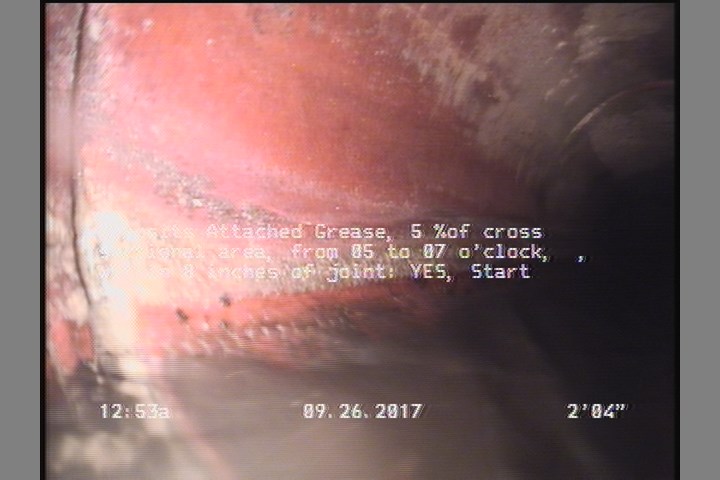

2.4 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

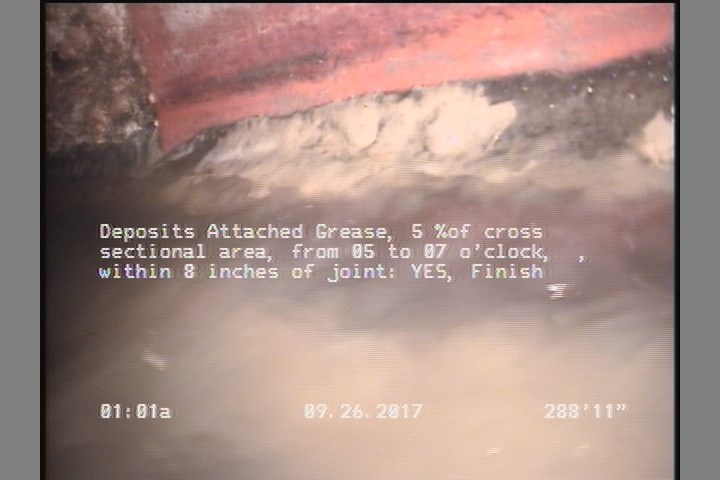

288.9 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Finish
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 0 | VC | — |
| 2.4 | DAGS | — |
| 288.9 | DAGS | — |
| 0 | MWL | — |
| 0 | AMH | 05 2231 |
| 289 | MGO | MAG COAT FINISH |
| 145.5 | MGO | MAG COAT START |
| 292.3 | AMH | 05 2297 |
| 0 | MGO | CONNECTION AT MH 9 O'CLOCK ACTIVE |
| 79.6 | MGO | MAG COAT FINISH |
| 0 | MWM | — |
| 2.4 | MGO | MAG COAT START |
Properties (5)
- additional_info
- SC352122
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-09-26T00:37:23-07:00
- year_laid
- 28956
