Wastewater/Activity/PacpInspection/1.0Sep 5, 2017, 10:05 AM
E 0046_E 0045_05092017_030559.mp4
- Date
- 09/05/2017
- W/O
- 654302
- Weather
- Dry
- Operator/Surveyor
- CORTEZ ESTEBAN
- Sewer ID
- Z00028
- PipeID
- P11273
- Time
- 3:05 AM
- Certificate
- U-209-8148
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4913
- Sewer Name
- E JOINT OUTFALL E - UNIT 2
- City
- W COMPTON
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 16
- Purpose
- Routine Assessment
- Project
- WO_654302_TV01123_AUG2017
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 48 in.
- Width
- 48 in.
- Upstream MH
- E 0045
- Downstream MH
- E 0046
- Dir. of Survey
- Upstream
- Length Surveyed
- 61.9 ft.
- Total Length
- 61.9 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 2
- O&M Quick
- 2200
- O&M Rating
- 4
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 7
Observation photos (2)

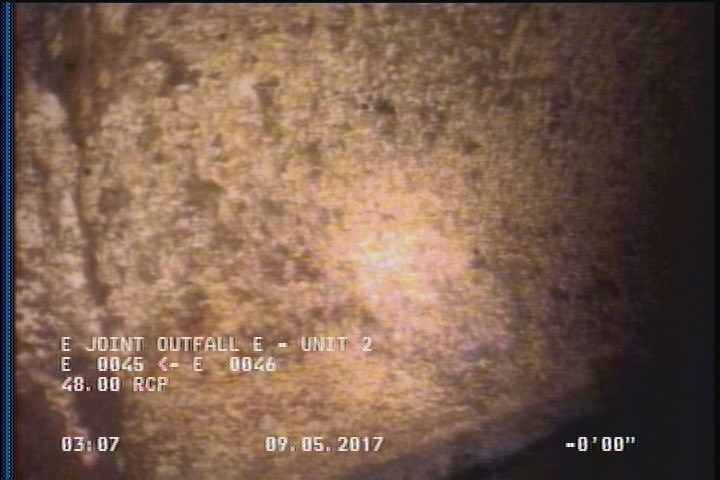

0 ft. - Surface Aggregate Visible, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

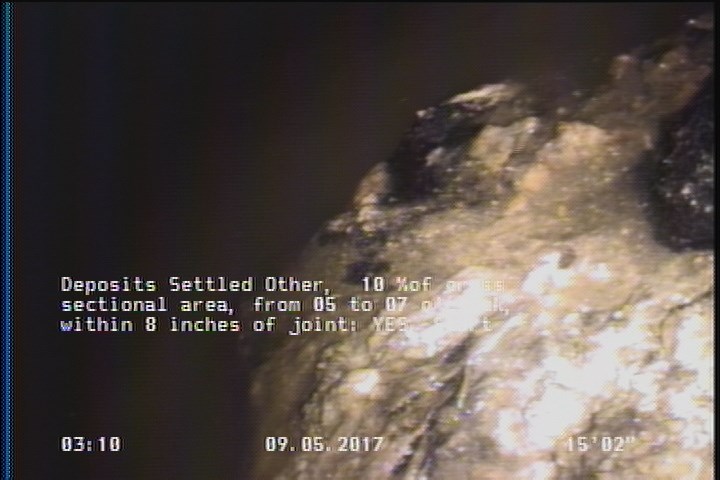

15.2 ft. - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 0 | MGO | SERVICE CONNECTION AT 3 O' CLOCK AT MH |
| 61.9 | SAV | — |
| 0 | SAV | — |
| 15.2 | DSZ | — |
| 61.9 | MSA | A/S SEVERE DEBRIS UNABLE TO CONTINUE |
| 0 | MWM | — |
| 0 | AMH | E 0045 |
| 0 | MGO | — |
| 61.9 | DSZ | — |
| 61.9 | DSZ | — |
Properties (4)
- additional_info
- SC345819
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-09-05T03:05:33-07:00
