Wastewater/Activity/PacpInspection/1.0Sep 26, 2017, 06:02 AM
05 2240_05 2239 _25092017_223801.mp4
- Date
- 09/25/2017
- W/O
- 655127
- Weather
- Dry
- Operator/Surveyor
- R.VARGAS
- Sewer ID
- Z00429
- PipeID
- P07364
- Time
- 11:02 PM
- Certificate
- U-209-211
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4276
- Sewer Name
- 05 COLDEN AVENUE TRUNK
- City
- LOS ANGELES
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 09
- Purpose
- Routine Assessment
- Project
- WO_655127_TV05142_SEP2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 05 2240
- Downstream MH
- 05 2239
- Dir. of Survey
- Downstream
- Length Surveyed
- 259.2 ft.
- Total Length
- 259.2 ft.
- Structural Index
- 5
- Structural Quick
- 5100
- Structural Rating
- 5
- O&M Index
- 2
- O&M Quick
- 2211
- O&M Rating
- 5
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 10
Observation photos (3)

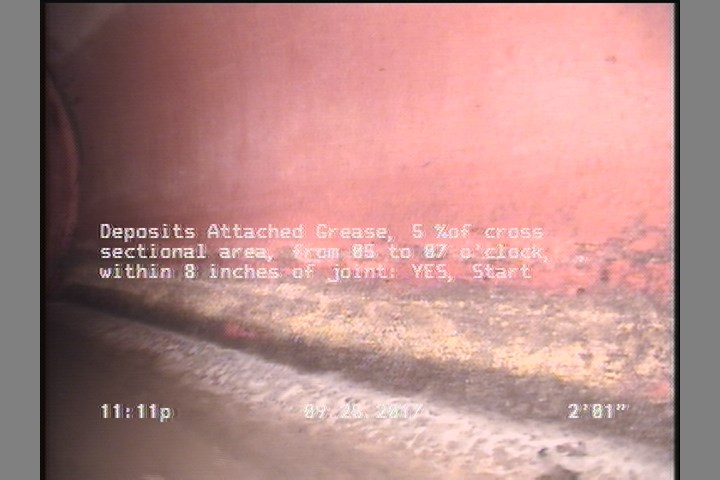

2.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

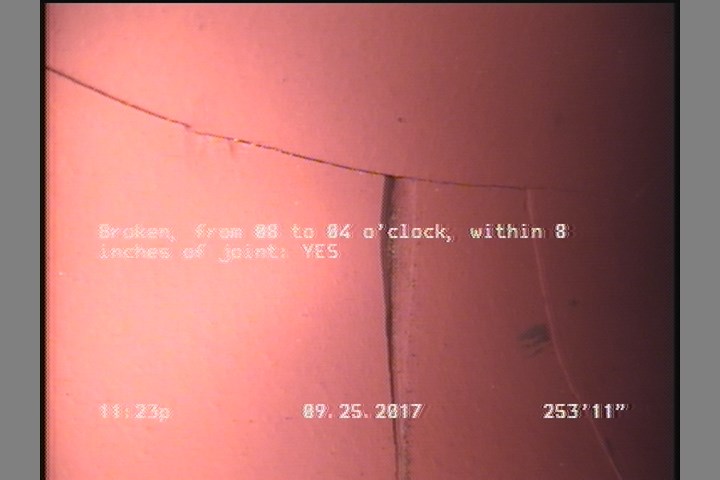

253.9 ft. - Broken, from 08 to 04 o'clock, within 8 inches of joint: YES

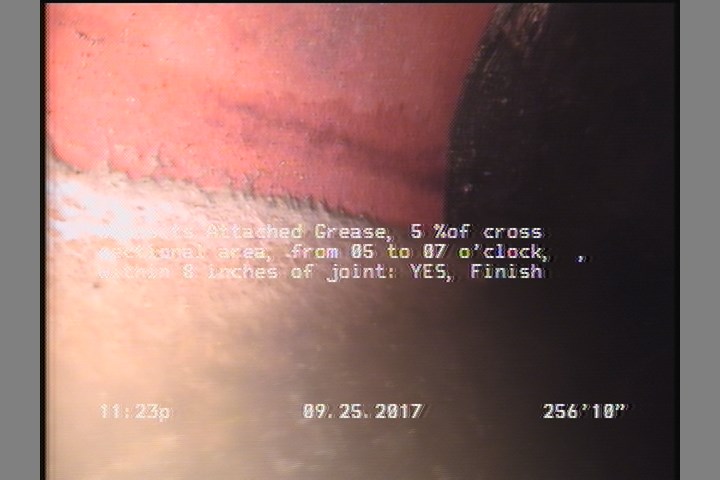

256.8 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Finish
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 256.8 | DAGS | — |
| 259.2 | AMH | 05 2239 |
| 253.9 | B | — |
| 2.1 | DAGS | — |
| 0 | VC | — |
| 0 | AMH | 05 2240 |
| 0 | MWM | — |
Properties (6)
- additional_info
- SC352122
- custom_field_two
- 1
- customer
- LACSD
- datetime
- 2017-09-25T23:02:19-07:00
- sewer_category
- Gravity
- year_laid
- 28419
