Wastewater/Activity/PacpInspection/1.0Jun 1, 2016, 05:59 PM
02 0337_02 0336_25052016_005343.mp4
- Date
- 06/01/2016
- W/O
- 574757
- Weather
- Dry
- Operator/Surveyor
- N. ZAHREDDINE
- Sewer ID
- Z00259
- PipeID
- P02648
- Time
- 10:59 AM
- Certificate
- N/A
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3205
- Sewer Name
- 02 EAST COMPTON BOULEVARD RELIEF TRUNK
- City
- BELLFLOWER
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 37
- Purpose
- Routine Assessment
- Project
- WO_574757_TV02059_JUNE2016
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- 02 0337
- Downstream MH
- 02 0336
- Dir. of Survey
- Downstream
- Length Surveyed
- 389.8 ft.
- Total Length
- 389.8 ft.
- Structural Index
- 3
- Structural Quick
- 4422
- Structural Rating
- 20
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 20
Observation photos (6)

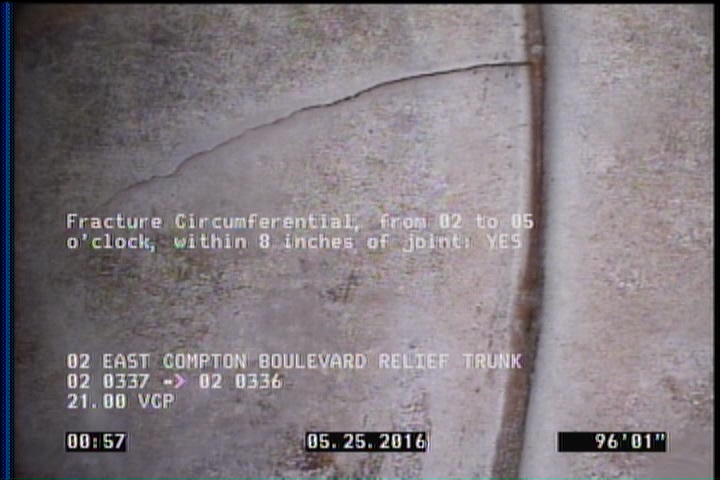

96 ft. - Fracture Circumferential, from 02 to 05 o'clock, within 8 inches of joint: YES

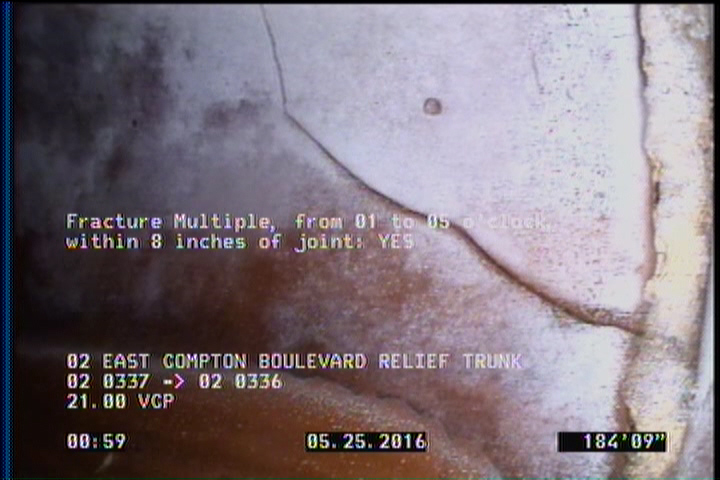

184.1 ft. - Fracture Multiple, from 01 to 05 o'clock, within 8 inches of joint: YES

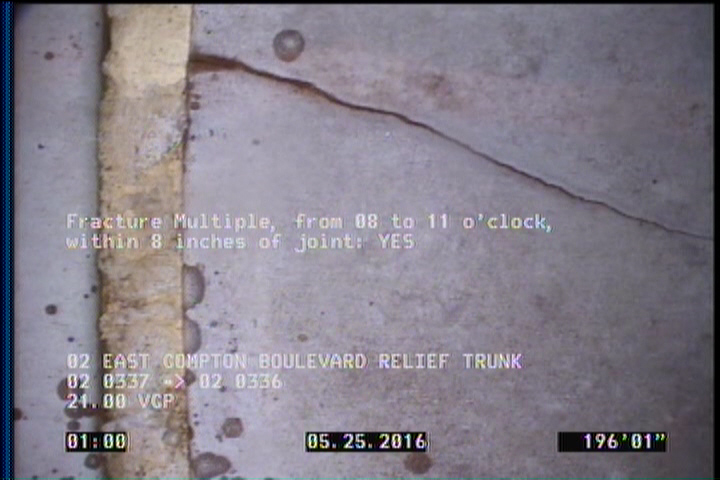

196 ft. - Fracture Multiple, from 08 to 11 o'clock, within 8 inches of joint: YES

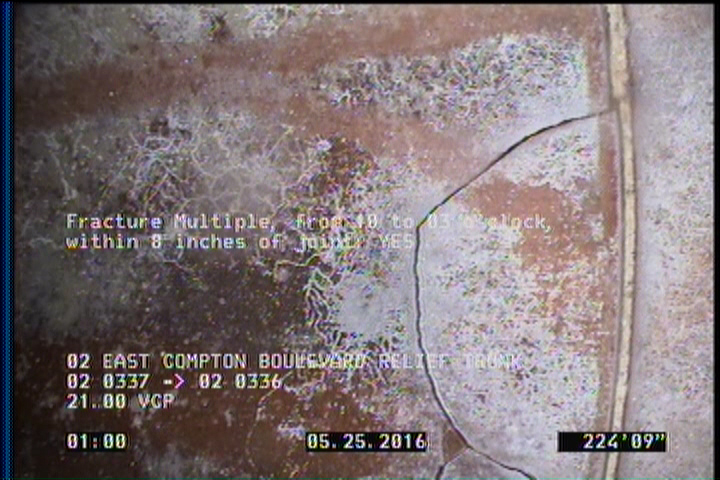

224.1 ft. - Fracture Multiple, from 10 to 03 o'clock, within 8 inches of joint: YES

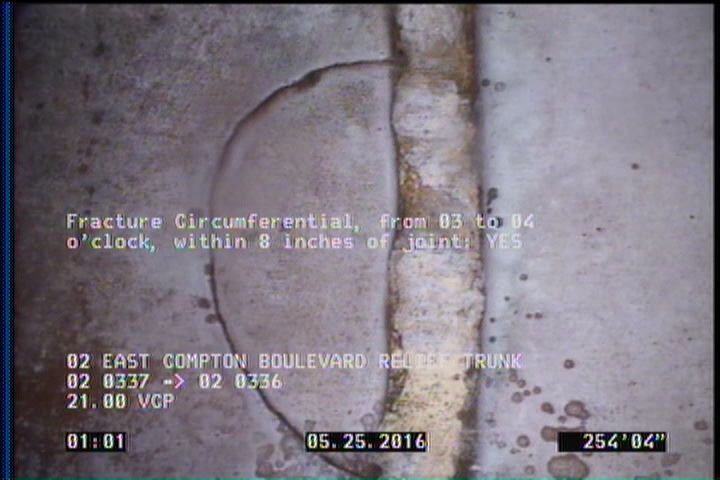

254 ft. - Fracture Circumferential, from 03 to 04 o'clock, within 8 inches of joint: YES

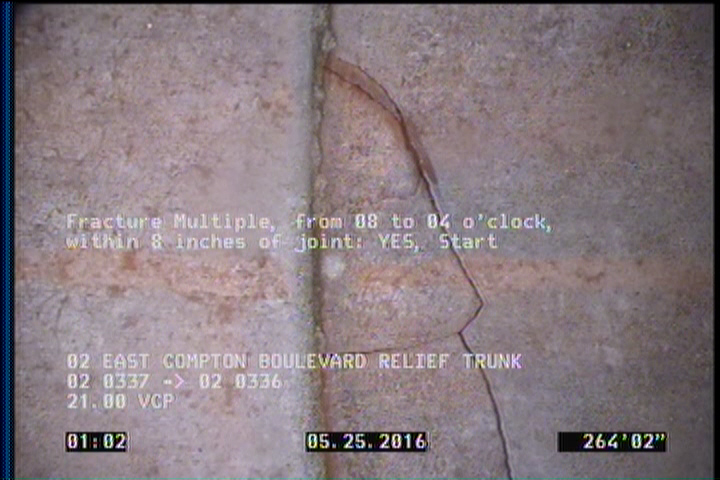

264 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 196 | FM | — |
| 264 | FM | — |
| 0 | AMH | 02 0337 |
| 96 | FC | — |
| 0 | MWL | — |
| 224.1 | FM | — |
| 389.8 | AMH | 02 0336 |
| 254 | FC | — |
| 0 | MWM | — |
| 184.1 | FM | — |
Properties (5)
- additional_info
- SC300664
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2016-06-01T10:59:20-07:00
- sewer_category
- Gravity
