Wastewater/Activity/PacpInspection/1.0Jul 8, 2016, 05:42 AM
02 0347_02 0346 _070716_224251.mp4
- Date
- 07/07/2016
- W/O
- 574757
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00259
- PipeID
- P02661
- Time
- 10:42 PM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3562
- Sewer Name
- 02 EAST COMPTON BOULEVARD RELIEF TRUNK
- City
- BELLFLOWER
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 33
- Purpose
- Routine Assessment
- Project
- WO_574757_TV02059_JUNE2016
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 02 0346
- Downstream MH
- 02 0347
- Dir. of Survey
- Upstream
- Length Surveyed
- 142.3 ft.
- Total Length
- 142.3 ft.
- Structural Index
- 3
- Structural Quick
- 3300
- Structural Rating
- 9
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 9
Observation photos (3)

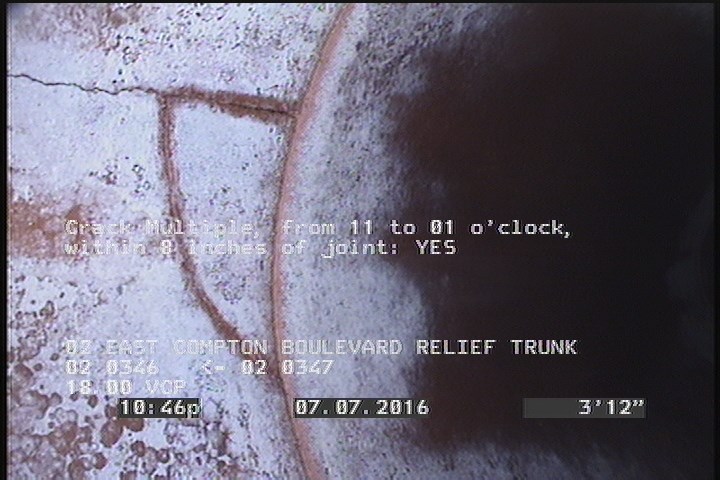

4 ft. - Crack Multiple, from 11 to 01 o'clock, within 8 inches of joint: YES

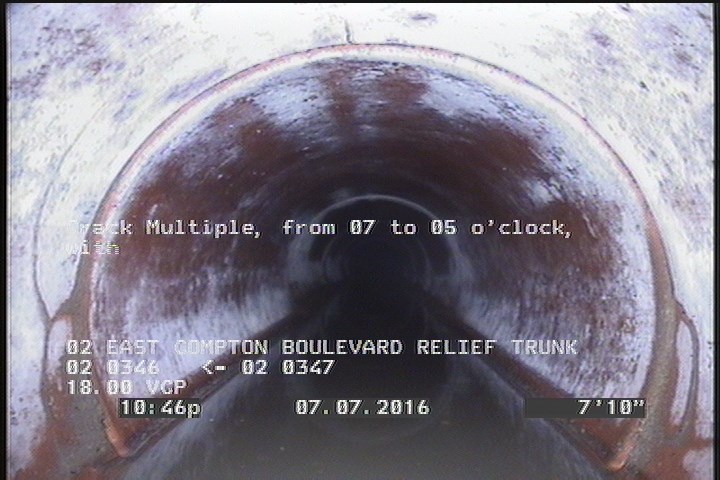

7.8 ft. - Crack Multiple, from 07 to 05 o'clock, within 8 inches of joint: YES

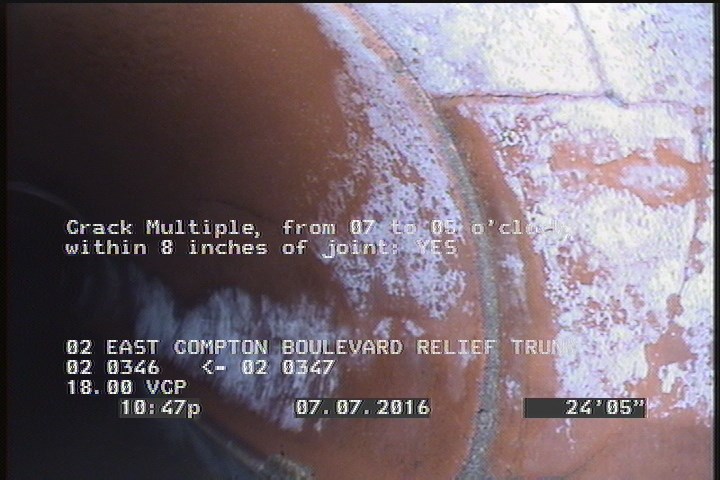

24.4 ft. - Crack Multiple, from 07 to 05 o'clock, within 8 inches of joint: YES
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 0 | MGO | CONNECTION AT THE MH 3 OC'LOCK |
| 24.4 | CM | — |
| 4 | CM | — |
| 0 | MWM | — |
| 0 | AMH | 02 0346 |
| 0 | MWL | — |
| 7.8 | CM | — |
| 142.3 | AMH | 02 0347 |
Properties (5)
- additional_info
- SC305868
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-07-07T22:42:08-07:00
- sewer_category
- Gravity
