Wastewater/Activity/PacpInspection/1.0Jun 1, 2016, 05:59 PM
02 0327_02 0326_26052016_001946.mp4
- Date
- 06/01/2016
- W/O
- 574757
- Weather
- Dry
- Operator/Surveyor
- N. ZAHREDDINE
- Sewer ID
- Z00259
- PipeID
- P02638
- Time
- 10:59 AM
- Certificate
- N/A
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3406
- Sewer Name
- 02 EAST COMPTON BOULEVARD RELIEF TRUNK
- City
- BELLFLOWER
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 37
- Purpose
- Routine Assessment
- Project
- WO_574757_TV02059_JUNE2016
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 24 in.
- Width
- 24 in.
- Upstream MH
- 02 0327
- Downstream MH
- 02 0326
- Dir. of Survey
- Downstream
- Length Surveyed
- 430 ft.
- Total Length
- 430 ft.
- Structural Index
- 3
- Structural Quick
- 423K
- Structural Rating
- 192
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 192
Observation photos (6)

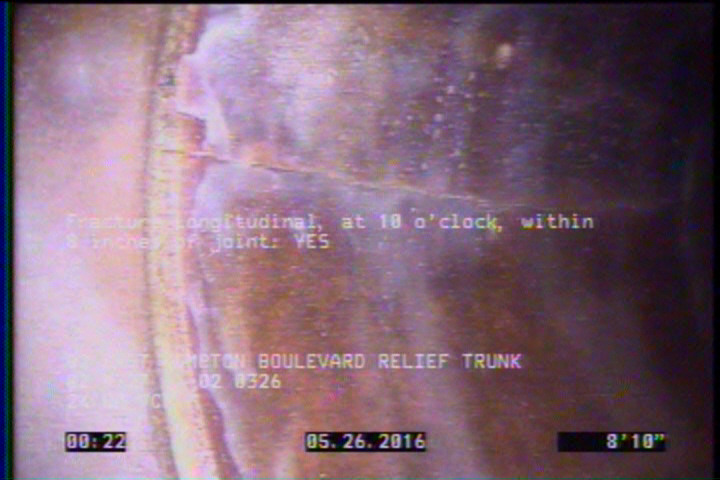

8.1 ft. - Fracture Longitudinal, at 10 o'clock, within 8 inches of joint: YES

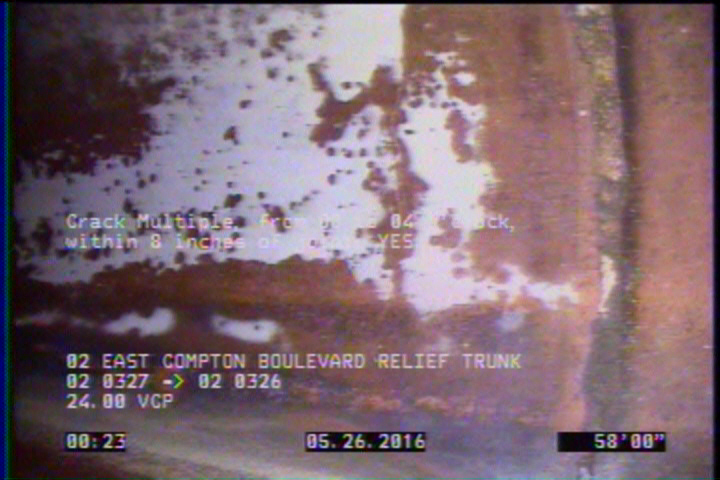

58 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

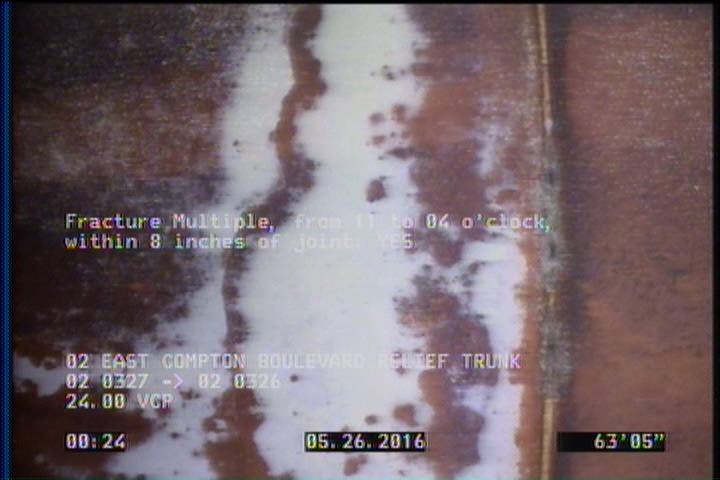

63.1 ft. - Fracture Multiple, from 11 to 04 o'clock, within 8 inches of joint: YES
87.1 ft. - Crack Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES

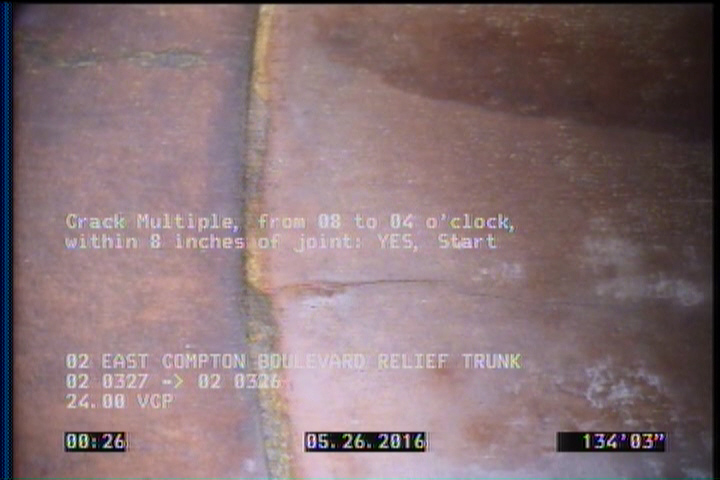

134 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

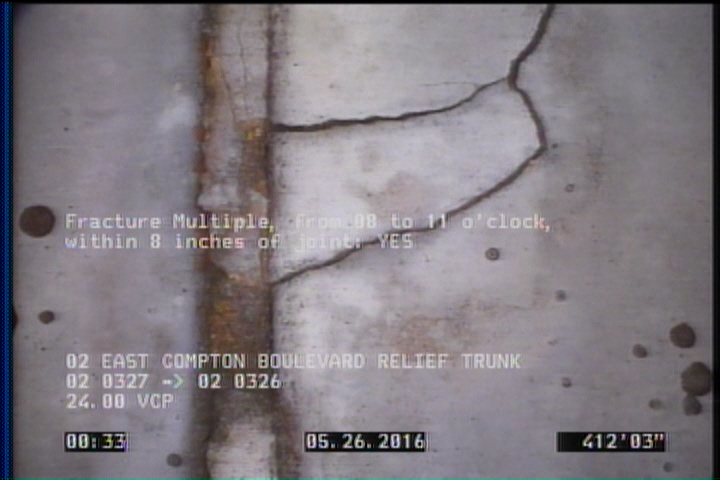

412 ft. - Fracture Multiple, from 08 to 11 o'clock, within 8 inches of joint: YES
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 8.1 | FL | — |
| 0 | AMH | 02 0327 |
| 0 | MWL | — |
| 63.1 | FM | — |
| 412 | FM | — |
| 58 | CM | — |
| 430 | AMH | 02 0326 |
| 428.1 | CM | — |
| 430 | MGO | CONNECTION AT MH 9 O'CLOCK |
| 87.1 | CC | — |
| 0 | MWM | — |
| 134 | CM | — |
Properties (5)
- additional_info
- SC300666
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-06-01T10:59:16-07:00
- sewer_category
- Gravity
