Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 1, 2016, 05:59 PM

  • 02 0338_02 0337_25052016_003256.mp4

Date
06/01/2016
W/O
574757
Weather
Dry
Operator/Surveyor
N. ZAHREDDINE
Sewer ID
Z00259
PipeID
P02649
Time
10:59 AM
Certificate
N/A
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3205
Sewer Name
02 EAST COMPTON BOULEVARD RELIEF TRUNK
City
BELLFLOWER
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
37
Purpose
Routine Assessment
Project
WO_574757_TV02059_JUNE2016
Material
Vitrified Clay Pipe
Shape
Circular
Height
21 in.
Width
21 in.
Upstream MH
02 0338
Downstream MH
02 0337
Dir. of Survey
Downstream
Length Surveyed
401.8 ft.
Total Length
401.8 ft.
Structural Index
3
Structural Quick
413B
Structural Rating
53
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
3
Overall Quick
—
Overall Rating
55
Pipe schematic from manhole 02 0338 to 02 0337
MH: 02 0338MH: 02 0337downstream0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 02 033816.1 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES176 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES177.1 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 4"241.1 ft. CC - Crack Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES257 ft. CC - Crack Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES261.1 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start330 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish360.1 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES395.1 ft. CM - Crack Multiple, from 01 to 05 o'clock, within 8 inches of joint: YES401.8 ft. AMH - Downstream Manhole, Survey Ends - 02 0337

Observation photos (7)

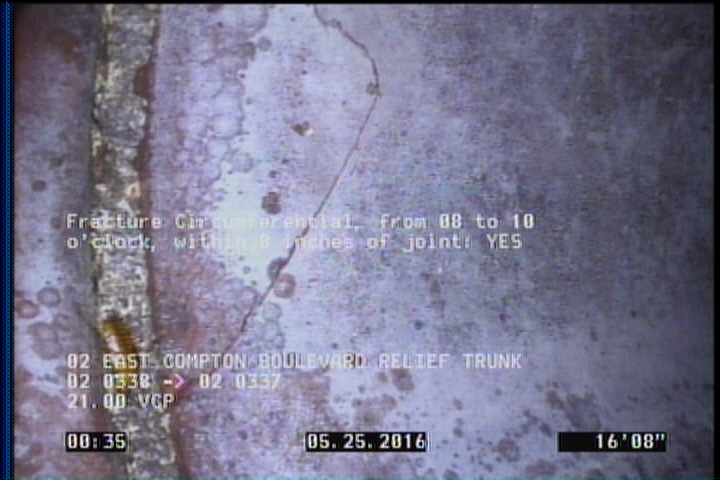

  • Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES

    16.1 ft. - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES

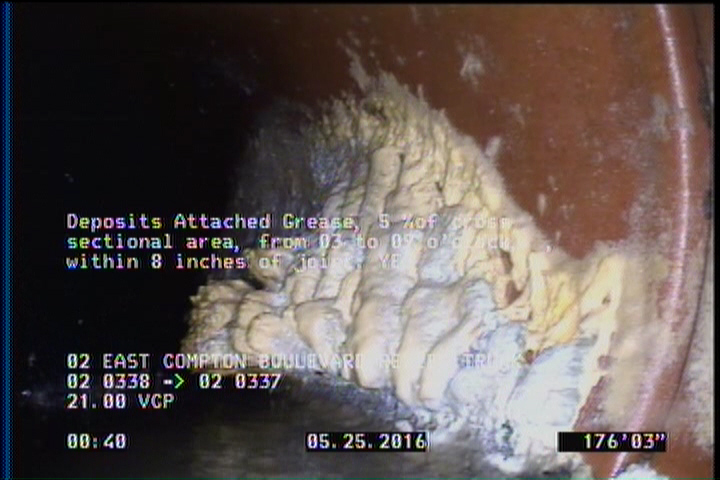

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES

    176 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES

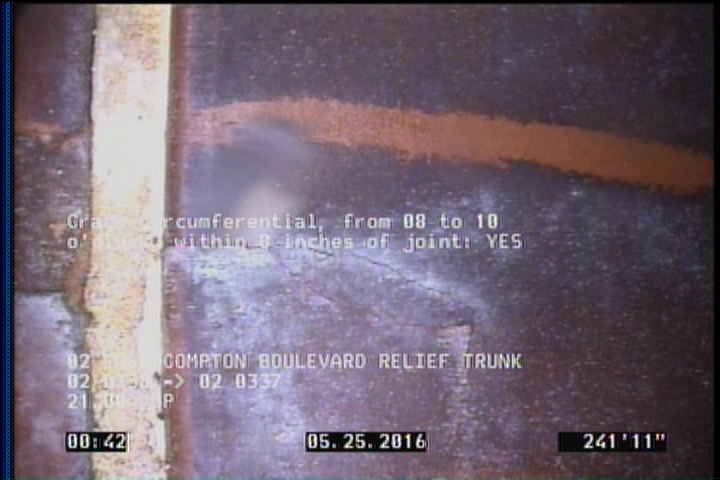

  • Crack Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES

    241.1 ft. - Crack Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES

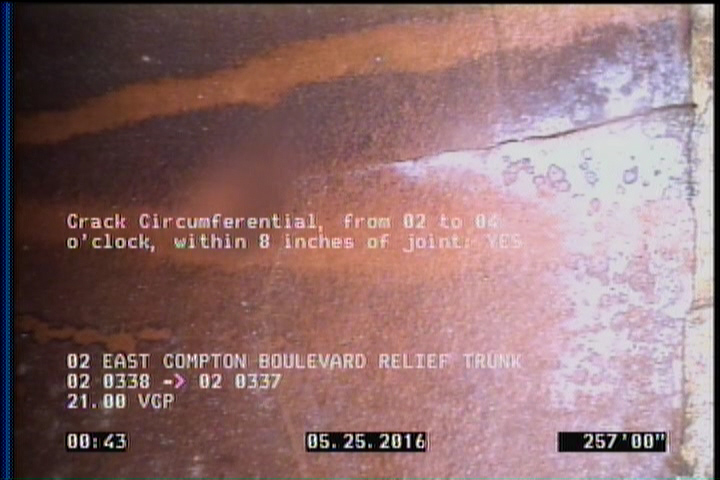

  • Crack Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES

    257 ft. - Crack Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES

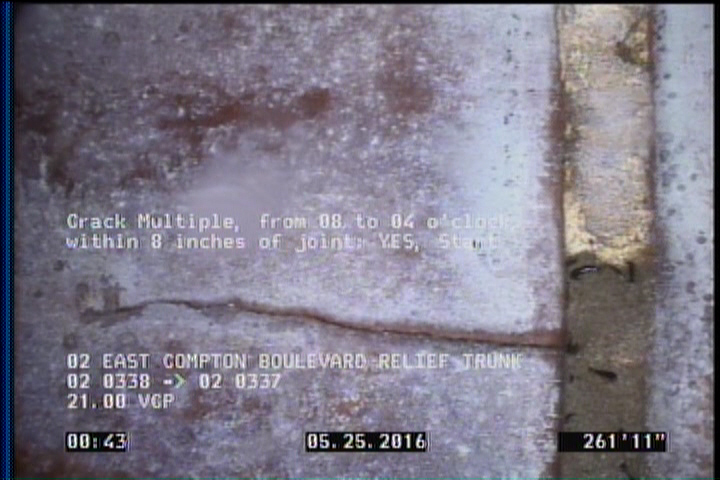

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    261.1 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

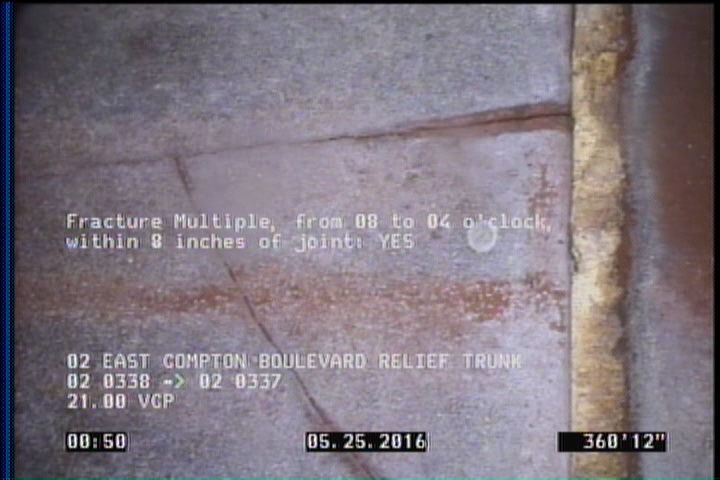

  • Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    360.1 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

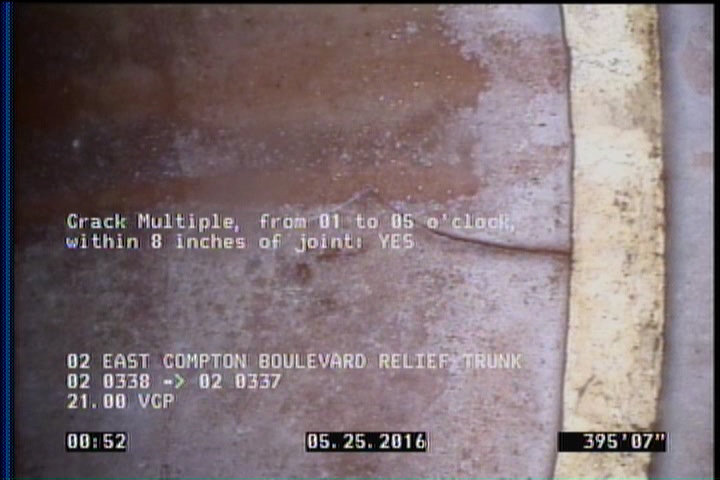

  • Crack Multiple, from 01 to 05 o'clock, within 8 inches of joint: YES

    395.1 ft. - Crack Multiple, from 01 to 05 o'clock, within 8 inches of joint: YES

All inspections of P02649Work order 574757

Observations (13)

DistanceCodeObservation
241.1CC—
261.1CM—
360.1FM—
16.1FC—
0MWL—
0MWM—
401.8AMH02 0337
0AMH02 0338
330CM—
395.1CM—
177.1TFA—
176DAGS—
257CC—

Properties (5)

additional_info
SC300664
custom_field_two
3
customer
LACSD
datetime
2016-06-01T10:59:20-07:00
sewer_category
Gravity
