Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 8, 2015, 09:40 AM
Date
12/08/2015
W/O
531059
Weather
Dry
Operator/Surveyor
R.VARGAS
Sewer ID
Z00664
PipeID
P13670
Time
1:40 AM
Certificate
U-209-211
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K2842
Sewer Name
16 PASADENA EAST-WEST INTERCEPTOR TRUNK
City
PASADENA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 16
Page No.
09
Purpose
Routine Assessment
Project
WO_531059_TV16030_OCT2015
Material
Reinforced Concrete Pipe
Shape
Circular
Height
27 in.
Upstream MH
16 0620
Downstream MH
16 0619
Dir. of Survey
Downstream
Length Surveyed
413.4 ft.
Total Length
413.4 ft.
Structural Index
3
Structural Quick
3O00
Structural Rating
243
O&M Index
2
O&M Quick
2O13
O&M Rating
165
Overall Index
2
Overall Quick
—
Overall Rating
408
Pipe schematic from manhole 16 0620 to 16 0619
MH: 16 0620MH: 16 0619downstream0 ft. VC - Vermin Cockroach0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 15 %of cross sectional area0 ft. MGO - General Observation - LATERAL AT MH 9 OCLOCK ACTIVE0 ft. AMH - Upstream Manhole, Survey Begins - 16 06202.2 ft. MGO - General Observation - MAGNEZIUM H.O. START2.2 ft. SAV - Surface Aggregate Visible, from 07 to 05 o'clock, within 8 inches of joint: YES, Start2.2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start8.7 ft. VC - Vermin Cockroach408.9 ft. MGO - General Observation - MAGNEZIUM H.O. FINISH408.9 ft. SAV - Surface Aggregate Visible, from 07 to 05 o'clock, within 8 inches of joint: YES, Finish408.9 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Finish413.4 ft. AMH - Downstream Manhole, Survey Ends - 16 0619413.4 ft. VC - Vermin Cockroach413.4 ft. MGO - General Observation - LATERAL AT MH 9 OCLOCK ACTIVE

Observation photos (2)

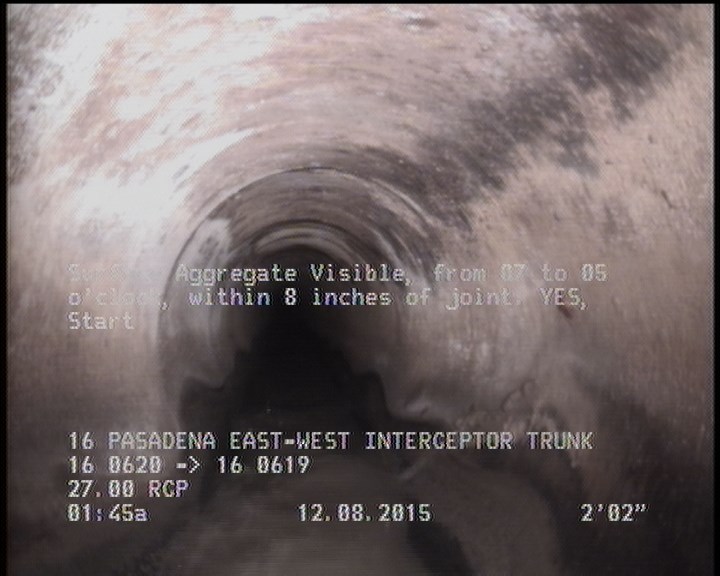

  • Surface Aggregate Visible, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

    2.2 ft. - Surface Aggregate Visible, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

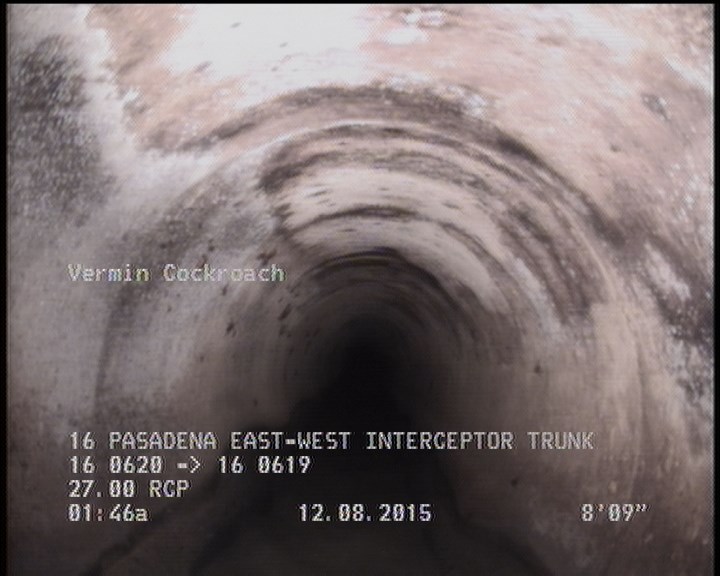

  • Vermin Cockroach

    8.7 ft. - Vermin Cockroach

All inspections of P13670Work order 531059

Observations (15)

DistanceCodeObservation
408.9MGOMAGNEZIUM H.O. FINISH
413.4AMH16 0619
2.2MGOMAGNEZIUM H.O. START
408.9SAV—
413.4VC—
8.7VC—
2.2SAV—
0VC—
408.9DAGS—
2.2DAGS—
0MWL—
0MWM—
0MGOLATERAL AT MH 9 OCLOCK ACTIVE
0AMH16 0620
413.4MGOLATERAL AT MH 9 OCLOCK ACTIVE

Properties (5)

additional_info
SC205696
custom_field_two
3
customer
LACSD
datetime
2015-12-08T01:40:44-08:00
sewer_category
GRAVITY
