Wastewater/Activity/PacpInspection/1.0Sep 8, 2017, 05:26 AM
21 0333_H 0947 _09072017_223202.mp4
- Date
- 09/07/2017
- W/O
- 635405
- Weather
- Dry
- Operator/Surveyor
- JUAN B
- Sewer ID
- Z00783
- PipeID
- P15534
- Time
- 10:26 PM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K4960
- Sewer Name
- 21 RAILROAD STREET TRUNK
- City
- CITY OF INDUSTRY
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 21
- Page No.
- 34
- Purpose
- Routine Assessment
- Project
- WO_635405_TV21031_AUG2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 21 0333
- Downstream MH
- H 0947
- Dir. of Survey
- Downstream
- Length Surveyed
- 245 ft.
- Total Length
- 245 ft.
- Structural Index
- 4
- Structural Quick
- 4131
- Structural Rating
- 7
- O&M Index
- 2
- O&M Quick
- 2300
- O&M Rating
- 6
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 13
Observation photos (3)

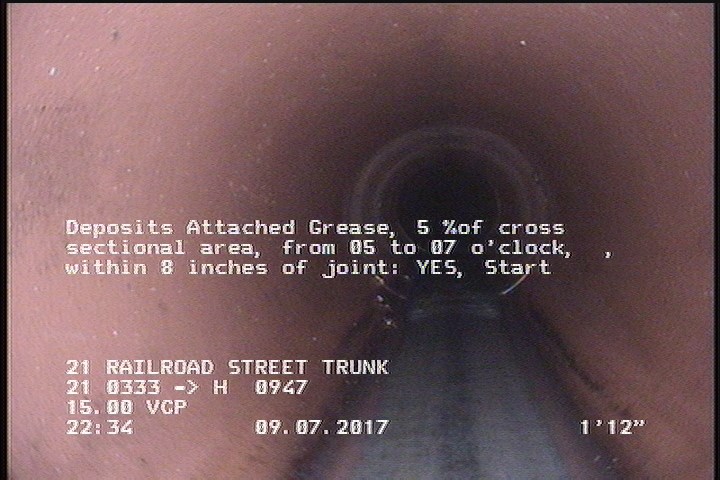

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

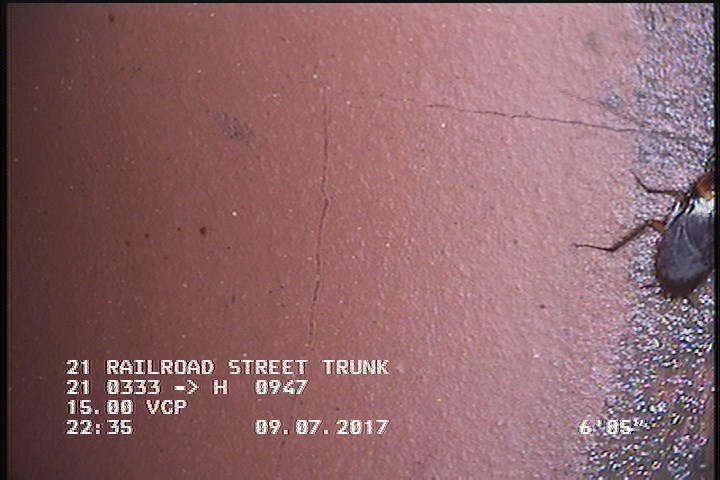

6.4 ft. - Crack Multiple, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

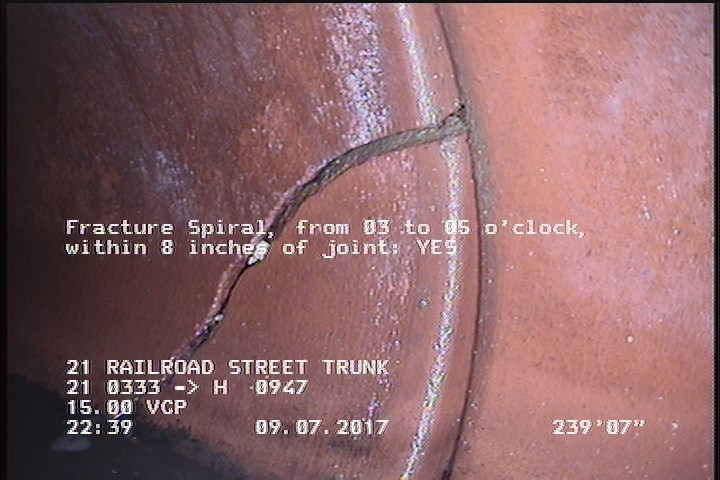

239.4 ft. - Broken, from 03 to 04 o'clock, within 8 inches of joint: YES
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 121.1 | TB | — |
| 0 | AMH | 21 0333 |
| 245 | DAGS | — |
| 245 | CM | — |
| 6.4 | CM | — |
| 2 | DAGS | — |
| 0 | MWM | — |
| 196.3 | TBC | — |
| 45.9 | TBC | — |
| 239.4 | B | — |
| 245 | AMH | H 0947 |
Properties (5)
- additional_info
- SC345951
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2017-09-07T22:26:06-07:00
- sewer_category
- Gravity
