Wastewater/Activity/PacpInspection/1.0Sep 7, 2017, 08:11 AM
21 0343_21 0342 _09072017_020105.mp4
- Date
- 09/07/2017
- W/O
- 635405
- Weather
- Dry
- Operator/Surveyor
- JUAN B
- Sewer ID
- Z00783
- PipeID
- P15544
- Time
- 1:11 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K4959
- Sewer Name
- 21 RAILROAD STREET TRUNK
- City
- CITY OF INDUSTRY
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 21
- Page No.
- 34
- Purpose
- Routine Assessment
- Project
- WO_635405_TV21031_AUG2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- 21 0342
- Downstream MH
- 21 0343
- Dir. of Survey
- Upstream
- Length Surveyed
- 351.5 ft.
- Total Length
- 351.5 ft.
- Structural Index
- 2
- Structural Quick
- 3122
- Structural Rating
- 7
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 9
Observation photos (4)

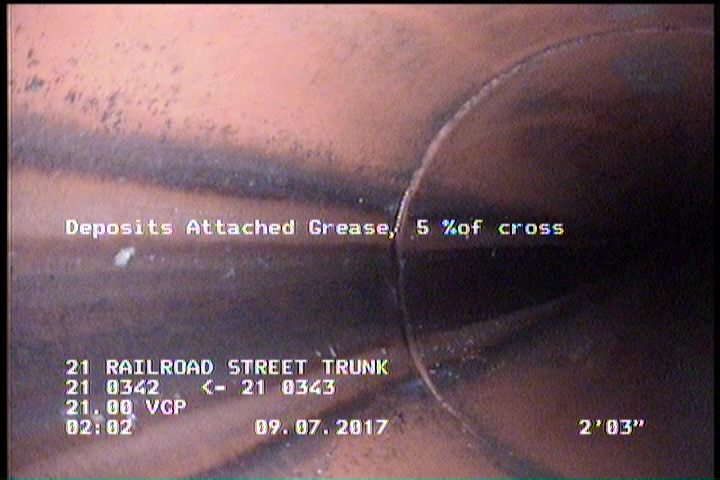

2.3 ft. - Deposits Attached Grease, 5 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES, Start

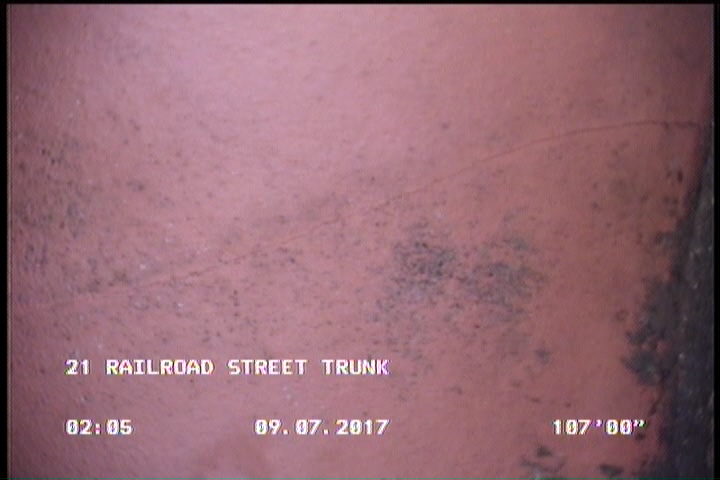

106.9 ft. - Crack Longitudinal, at 09 o'clock, within 8 inches of joint: YES

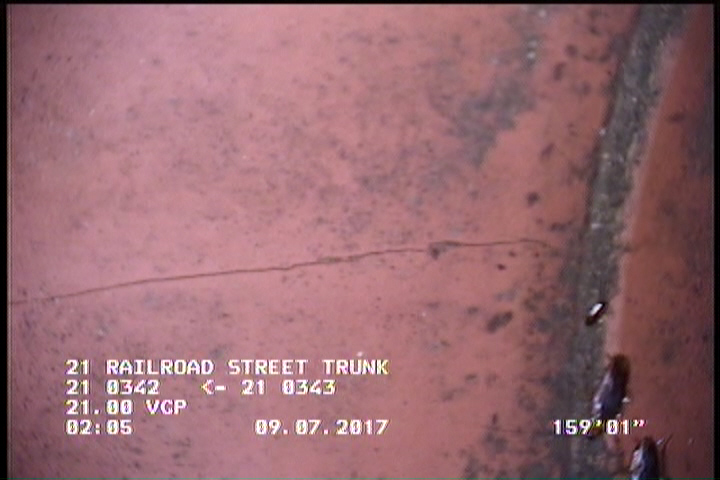

159 ft. - Crack Longitudinal, at 09 o'clock, within 8 inches of joint: YES

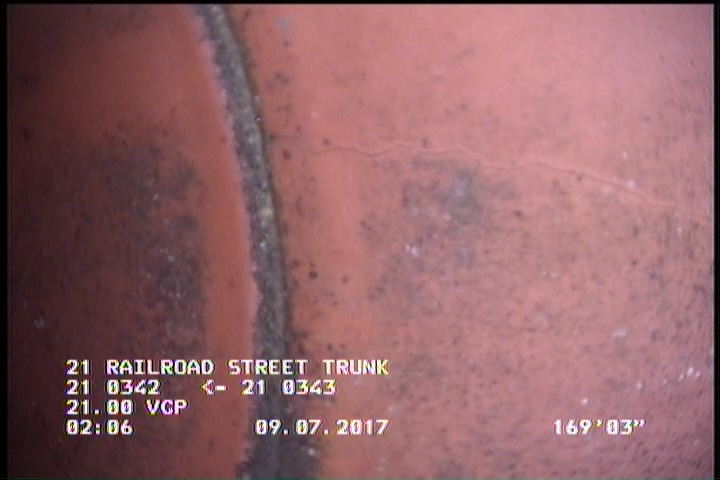

169.2 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 159 | CL | — |
| 106.9 | CL | — |
| 169.2 | CM | — |
| 0 | MWM | — |
| 351.5 | CM | — |
| 209.2 | TB | — |
| 53.9 | TB | — |
| 2.3 | DAGS | — |
| 0 | AMH | 21 0342 |
| 351.5 | AMH | 21 0343 |
| 0 | MWL | — |
| 59.6 | TB | — |
| 351.5 | DAGS | — |
Properties (5)
- additional_info
- SC345650
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-09-07T01:11:32-07:00
- sewer_category
- Gravity
