Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 21, 2016, 10:44 AM

  • G 0166_G 0165_21072016_034451.mp4

Date
07/21/2016
W/O
582914
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z01180
PipeID
P01071
Time
3:44 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3618
Sewer Name
G JOINT OUTFALL G - UNIT 8
City
COMPTON
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
16
Purpose
Routine Assessment
Project
WO_582914_TV01100_JULY2016
Material
Vitrified Clay Pipe
Shape
Circular
Height
24 in.
Width
24 in.
Upstream MH
G 0166
Downstream MH
G 0165
Dir. of Survey
Downstream
Length Surveyed
326.5 ft.
Total Length
326.5 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
332L
O&M Rating
139
Overall Index
2
Overall Quick
—
Overall Rating
139
Pipe schematic from manhole G 0166 to G 0165
MH: G 0166MH: G 0165downstream0 ft. MGO - General Observation - COCKROACHES IN MANHOLE0 ft. MWM - Water Mark, 40 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - G 01660 ft. MWL - Water Level, 20 %of cross sectional area2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start312.8 ft. DSZ - Deposits Settled Other, 15 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start326.5 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 3 O'CLOCK326.5 ft. DSZ - Deposits Settled Other, 15 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Finish326.5 ft. MGO - General Observation - COCKROACHES IN MANHOLE326.5 ft. MGO - General Observation - CONNECTION AT MH 12 O'CLOCK326.5 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish326.5 ft. AMH - Downstream Manhole, Survey Ends - G 0165

Observation photos (3)

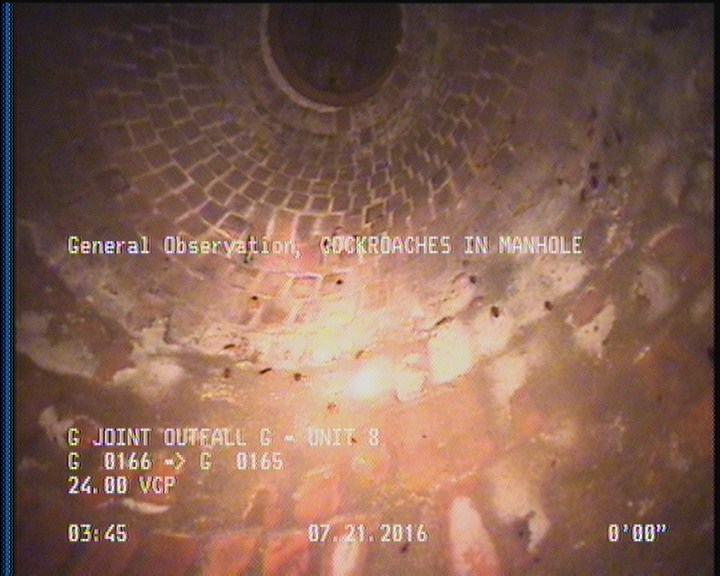

  • General Observation - COCKROACHES IN MANHOLE

    0 ft. - General Observation - COCKROACHES IN MANHOLE

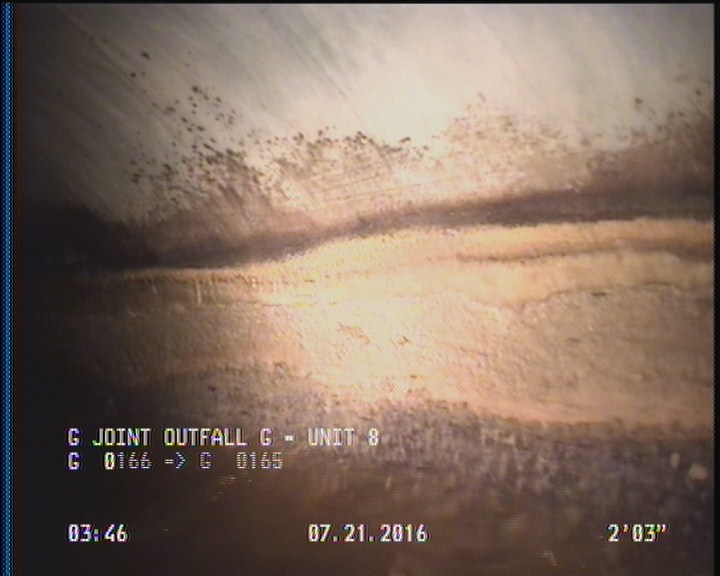

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

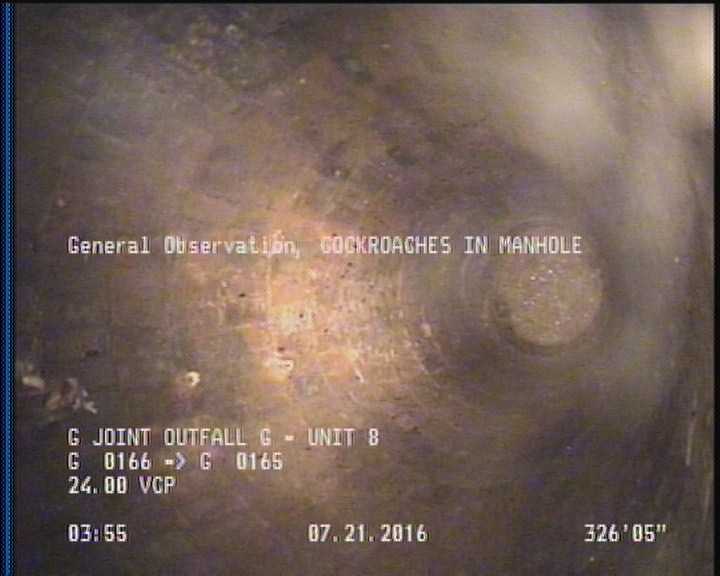

  • General Observation - COCKROACHES IN MANHOLE

    326.5 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P01071Work order 582914

Observations (12)

DistanceCodeObservation
312.8DSZ—
326.5MGOACTIVE CONNECTION AT MH 3 O'CLOCK
326.5DSZ—
326.5MGOCOCKROACHES IN MANHOLE
326.5MGOCONNECTION AT MH 12 O'CLOCK
326.5DAGS—
2DAGS—
0MGOCOCKROACHES IN MANHOLE
0MWM—
0AMHG 0166
0MWL—
326.5AMHG 0165

Properties (5)

additional_info
SC305797
custom_field_two
4
customer
LACSD
datetime
2016-07-21T03:44:32-07:00
sewer_category
Gravity
