Wastewater/Activity/PacpInspection/1.0Jul 21, 2016, 10:29 AM
G 0168_G 0167_21072016_032956.mp4
- Date
- 07/21/2016
- W/O
- 582914
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z01180
- PipeID
- P01073
- Time
- 3:29 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3618
- Sewer Name
- G JOINT OUTFALL G - UNIT 8
- City
- COMPTON
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 16
- Purpose
- Routine Assessment
- Project
- WO_582914_TV01100_JULY2016
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 24 in.
- Width
- 24 in.
- Upstream MH
- G 0168
- Downstream MH
- G 0167
- Dir. of Survey
- Downstream
- Length Surveyed
- 38.8 ft.
- Total Length
- 38.8 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 4127
- O&M Rating
- 18
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 18
Observation photos (2)

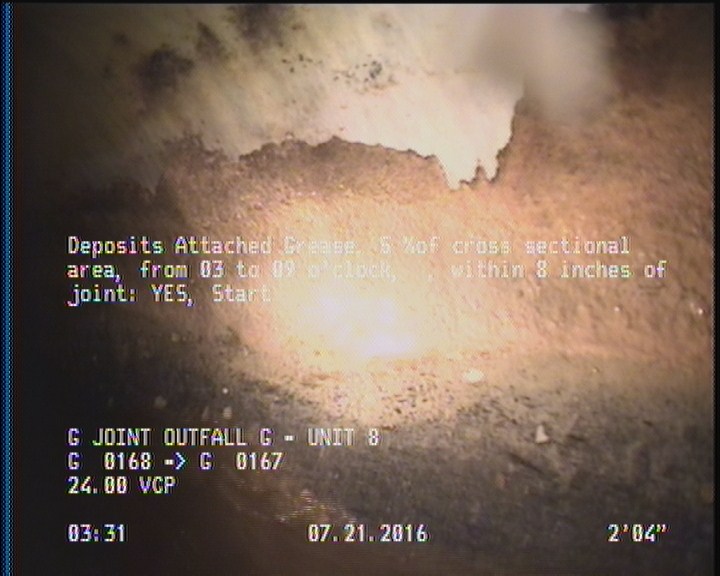

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

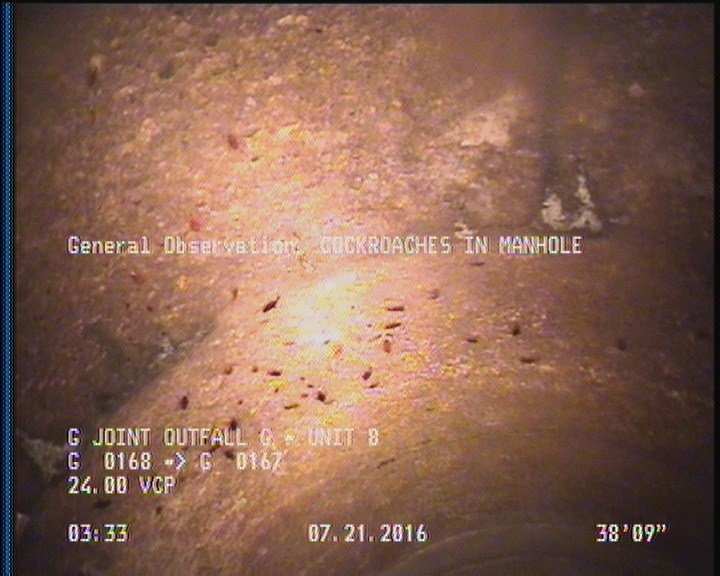

38.8 ft. - General Observation - COCKROACHES IN MANHOLE
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 38.2 | MGO | ACTIVE CONNECTION AT MH 5 O'CLOCK |
| 38.8 | MGO | COCKROACHES IN MANHOLE |
| 0 | MWL | — |
| 0 | MWM | — |
| 0 | AMH | G 0168 |
| 35.6 | DAGS | — |
| 0 | MGO | ACTIVE CONNECTION AT MH 3 O'CLOCK |
| 38.8 | AMH | G 0167 |
| 2 | DAGS | — |
| 0 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
Properties (5)
- additional_info
- SC305797
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-07-21T03:29:37-07:00
- sewer_category
- Gravity
