Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 21, 2016, 06:55 AM

  • G 0197_G 0196_21072016_000158.mp4

Date
07/20/2016
W/O
582914
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z01180
PipeID
P01102
Time
11:55 PM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3618
Sewer Name
G JOINT OUTFALL G - UNIT 8
City
LYNWOOD
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
13
Purpose
Routine Assessment
Project
WO_582914_TV01100_JULY2016
Material
Vitrified Clay Pipe
Shape
Circular
Height
24 in.
Width
24 in.
Upstream MH
G 0197
Downstream MH
G 0196
Dir. of Survey
Downstream
Length Surveyed
263 ft.
Total Length
263 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
4124
O&M Rating
12
Overall Index
2
Overall Quick
—
Overall Rating
12
Pipe schematic from manhole G 0197 to G 0196
MH: G 0197MH: G 0196downstream0 ft. MWL - Water Level, 30 %of cross sectional area0 ft. MGO - General Observation - COCKROACHES IN MANHOLE0 ft. MWM - Water Mark, 50 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - G 01970 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 2 O'CLOCK2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start58.9 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start262 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Finish262 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish262.9 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 3 O'CLOCK263 ft. AMH - Downstream Manhole, Survey Ends - G 0196263 ft. MGO - General Observation - COCKROACHES IN MANHOLE

Observation photos (3)

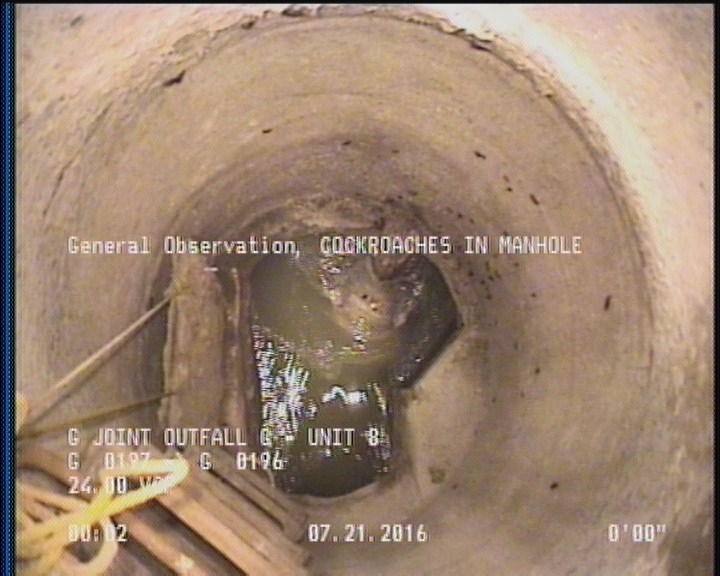

  • General Observation - COCKROACHES IN MANHOLE

    0 ft. - General Observation - COCKROACHES IN MANHOLE

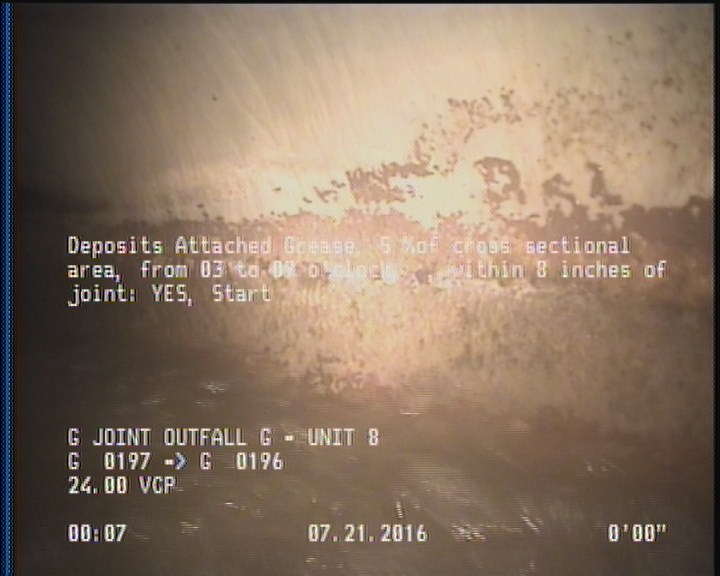

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

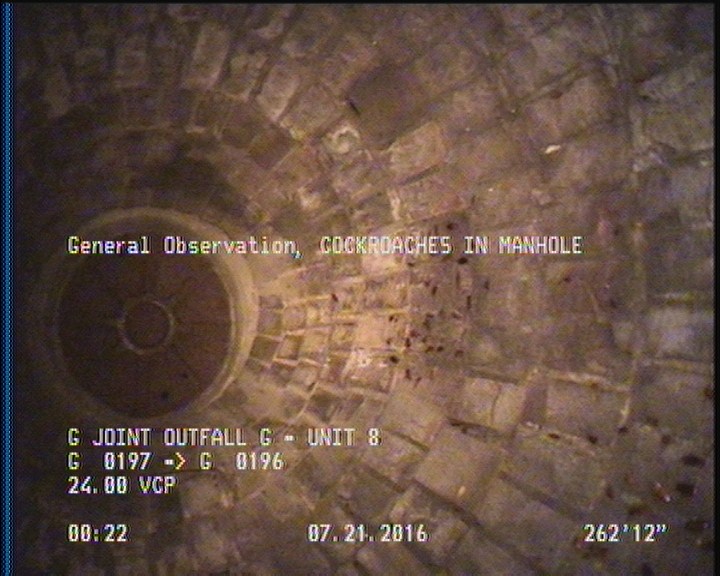

  • General Observation - COCKROACHES IN MANHOLE

    263 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P01102Work order 582914

Observations (12)

DistanceCodeObservation
263AMHG 0196
2DAGS—
262DSZ—
0MWL—
0MGOCOCKROACHES IN MANHOLE
262.9MGOACTIVE CONNECTION AT MH 3 O'CLOCK
0MWM—
0AMHG 0197
262DAGS—
0MGOACTIVE CONNECTION AT MH 2 O'CLOCK
58.9DSZ—
263MGOCOCKROACHES IN MANHOLE

Properties (5)

additional_info
SC305797
custom_field_two
4
customer
LACSD
datetime
2016-07-20T23:55:05-07:00
sewer_category
Gravity
