Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 20, 2016, 06:54 AM

  • G 0192_G 0191_19072016_235453.mp4

Date
07/19/2016
W/O
582914
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z01180
PipeID
P01095
Time
11:54 PM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3617
Sewer Name
G JOINT OUTFALL G - UNIT 8
City
LYNWOOD
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
13
Purpose
Routine Assessment
Project
WO_582914_TV01100_JULY2016
Material
Vitrified Clay Pipe
Shape
Circular
Height
24 in.
Width
24 in.
Upstream MH
G 0192
Downstream MH
G 0191
Dir. of Survey
Downstream
Length Surveyed
409.6 ft.
Total Length
409.6 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
412_
O&M Rating
326
Overall Index
2
Overall Quick
—
Overall Rating
326
Pipe schematic from manhole G 0192 to G 0191
MH: G 0192MH: G 0191downstream0 ft. MWM - Water Mark, 50 %of cross sectional area0 ft. MWL - Water Level, 30 %of cross sectional area0 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK0 ft. AMH - Upstream Manhole, Survey Begins - G 01922 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start8.4 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start407 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Finish407 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish409.6 ft. MGO - General Observation - COCKROACHES IN MANHOLE409.6 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 3 O'CLOCK409.6 ft. AMH - Downstream Manhole, Survey Ends - G 0191

Observation photos (2)

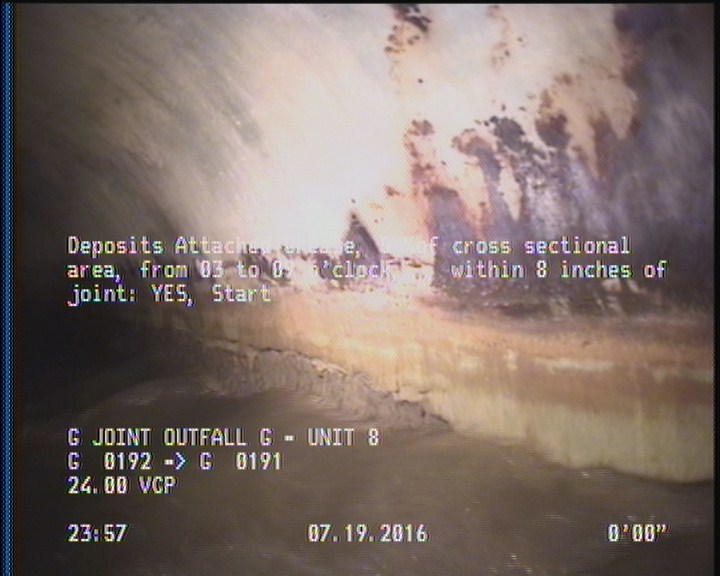

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

  • General Observation - COCKROACHES IN MANHOLE

    409.6 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P01095Work order 582914

Observations (11)

DistanceCodeObservation
0MWM—
409.6MGOCOCKROACHES IN MANHOLE
409.6MGOACTIVE CONNECTION AT MH 3 O'CLOCK
0MWL—
2DAGS—
8.4DSZ—
407DSZ—
0MGOCONNECTION AT MH 9 O'CLOCK
407DAGS—
409.6AMHG 0191
0AMHG 0192

Properties (5)

additional_info
SC305796
custom_field_two
4
customer
LACSD
datetime
2016-07-19T23:54:28-07:00
sewer_category
Gravity
