Wastewater/Activity/PacpInspection/1.0Sep 12, 2016, 08:54 AM
20 0656_20 0655_09122016_020024.mp4
- Date
- 09/12/2016
- W/O
- 579971
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z01139
- PipeID
- P25435
- Time
- 1:54 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3655
- Sewer Name
- 20 35TH STREET EAST RELIEF TRUNK
- City
- PALMDALE
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 20
- Page No.
- 08
- Purpose
- Routine Assessment
- Project
- WO_579971_TV20048_JULY2016
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 27 in.
- Width
- 27 in.
- Upstream MH
- 20 0656
- Downstream MH
- 20 0655
- Dir. of Survey
- Downstream
- Length Surveyed
- 455.3 ft.
- Total Length
- 455.3 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2a00
- O&M Rating
- 342
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 342
Observation photos (2)

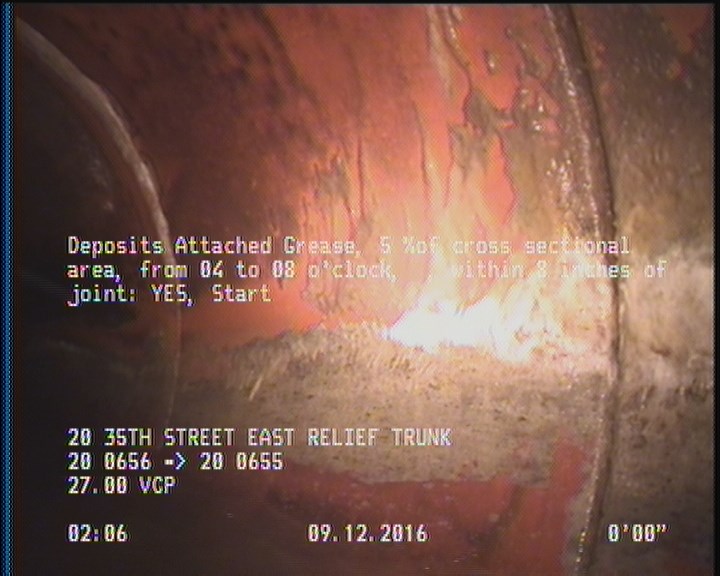

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

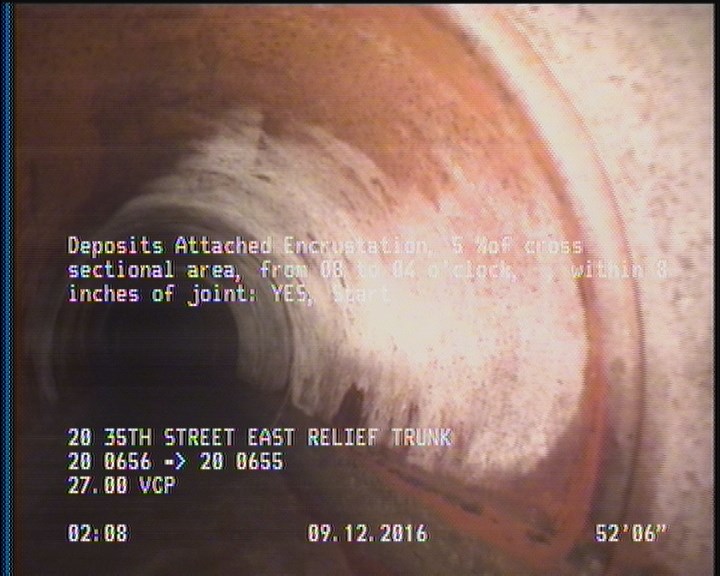

48.5 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 2 | DAGS | — |
| 455.3 | AMH | 20 0655 |
| 454.5 | DAGS | — |
| 0 | AMH | 20 0656 |
| 48.5 | DAE | — |
| 454.3 | DAE | — |
| 0 | MWM | — |
Properties (6)
- additional_info
- SC306096
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-09-12T01:54:45-07:00
- sewer_category
- Gravity
- year_laid
- 38677
