Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 30, 2017, 09:02 AM

  • 08 0539_08 0538_10302017_020956.mp4

Date
10/30/2017
W/O
0635424
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00021
PipeID
P00601
Time
2:02 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0665
Sewer Name
08 VICTORIA STREET TRUNK
City
RANCHO DOMINGUEZ
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 08
Page No.
02
Purpose
Capital Improvement Program Assesment
Project
10282017VMR_VICTORIA_STREET_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Upstream MH
08 0539
Downstream MH
08 0538
Dir. of Survey
Downstream
Length Surveyed
277 ft.
Total Length
277 ft.
Structural Index
2
Structural Quick
322F
Structural Rating
76
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
76
Pipe schematic from manhole 08 0539 to 08 0538
MH: 08 0539MH: 08 0538downstream0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 2:10AM0 ft. MWM - Water Mark, 20 %of cross sectional area2 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES - SLIGHT6 ft. FC - Fracture Circumferential, from 08 to 12 o'clock, within 8 inches of joint: YES - SL8 ft. MGO - General Observation - 12" VCP10.1 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - HAIRLINE14.2 ft. FC - Fracture Circumferential, from 10 to 12 o'clock, within 8 inches of joint: YES - SL18.5 ft. FC - Fracture Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES - H30.8 ft. FC - Fracture Circumferential, from 11 to 03 o'clock, within 8 inches of joint: YES - SL51 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES - H79.1 ft. FC - Fracture Circumferential, from 09 to 11 o'clock, within 8 inches of joint: YES - SL87.5 ft. FC - Fracture Circumferential, from 01 to 04 o'clock, within 8 inches of joint: YES - SL107.7 ft. FC - Fracture Circumferential, from 10 to 12 o'clock, within 8 inches of joint: YES - SL107.7 ft. FC - Fracture Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES - SL112.1 ft. FC - Fracture Circumferential, from 08 to 12 o'clock, within 8 inches of joint: YES - H128.3 ft. FC - Fracture Circumferential, from 11 to 03 o'clock, within 8 inches of joint: YES - H128.3 ft. FC - Fracture Circumferential, from 09 to 11 o'clock, within 8 inches of joint: YES - SL148.8 ft. FC - Fracture Circumferential, from 08 to 09 o'clock, within 8 inches of joint: YES - H152.9 ft. FC - Fracture Circumferential, from 03 to 04 o'clock, within 8 inches of joint: YES - H165 ft. FC - Fracture Circumferential, from 01 to 03 o'clock, within 8 inches of joint: YES - SL165 ft. FC - Fracture Circumferential, from 09 to 10 o'clock, within 8 inches of joint: YES - SL173.3 ft. FC - Fracture Circumferential, from 10 to 01 o'clock, within 8 inches of joint: YES - SL181.4 ft. FC - Fracture Circumferential, from 01 to 04 o'clock, within 8 inches of joint: YES - SL181.4 ft. FC - Fracture Circumferential, from 09 to 01 o'clock, within 8 inches of joint: YES - SL189.6 ft. FC - Fracture Circumferential, from 01 to 04 o'clock, within 8 inches of joint: YES - SL189.6 ft. FC - Fracture Circumferential, from 09 to 10 o'clock, within 8 inches of joint: YES - H201.7 ft. FC - Fracture Circumferential, from 08 to 11 o'clock, within 8 inches of joint: YES - SL214 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - SL226.1 ft. FC - Fracture Circumferential, from 08 to 12 o'clock, within 8 inches of joint: YES - SL238.7 ft. FC - Fracture Circumferential, from 08 to 11 o'clock, within 8 inches of joint: YES - SL246.3 ft. FC - Fracture Circumferential, from 08 to 02 o'clock, within 8 inches of joint: YES - SL250.4 ft. FC - Fracture Circumferential, from 08 to 11 o'clock, within 8 inches of joint: YES - SL250.4 ft. FC - Fracture Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES - SL258.4 ft. FC - Fracture Circumferential, from 08 to 11 o'clock, within 8 inches of joint: YES - H258.4 ft. FC - Fracture Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES - SL258.6 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - H262.4 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - SL266.9 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - SL266.9 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish - H270.6 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - SL275.2 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES - SL277 ft. AMH - Downstream Manhole, Survey Begins - 2:45AM

Observation photos (2)

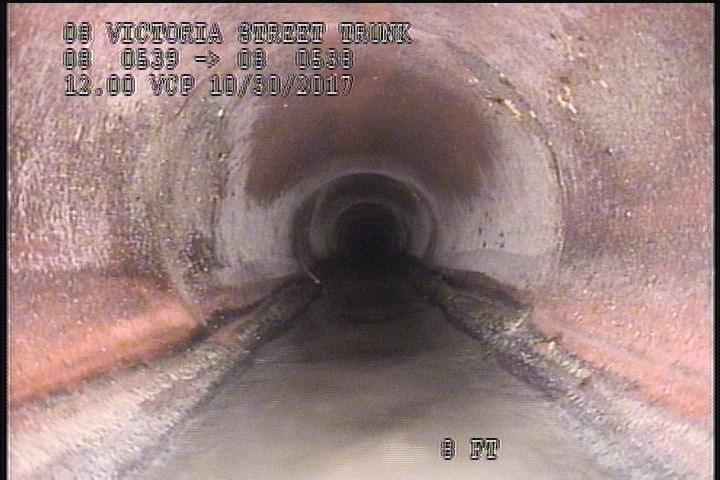

  • General Observation - 12" VCP

    8 ft. - General Observation - 12" VCP

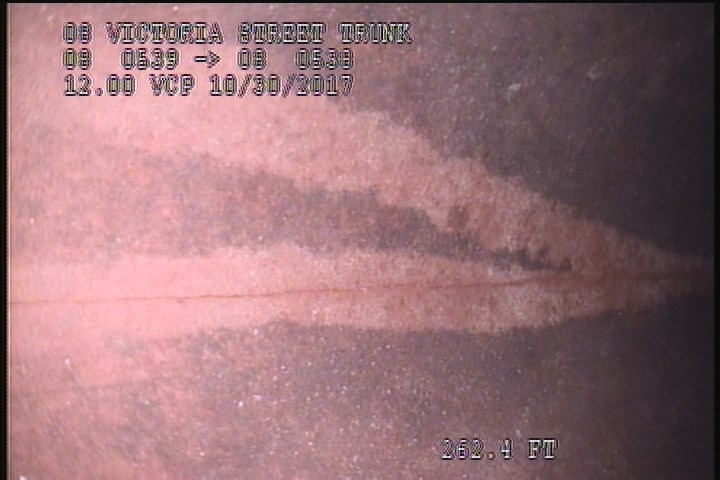

  • Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - H

    258.6 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - H

All inspections of P00601Work order 0635424

Observations (43)

DistanceCodeObservation
165FCSL
226.1FCSL
189.6FCSL
79.1FCSL
107.7FCSL
112.1FCH
266.9FCSL
18.5FCH
201.7FCSL
128.3FCH
87.5FCSL
181.4FCSL
6FCSL
277AMH2:45AM
107.7FCSL
8MGO12" VCP
238.7FCSL
148.8FCH
30.8FCSL
189.6FCH
250.4FCSL
165FCSL
275.2FCSL
214FCSL
0MWL—
0AMH2:10AM
250.4FCSL
51FCH
173.3FCSL
262.4FCSL
2FCSLIGHT
128.3FCSL
181.4FCSL
258.6FLH
266.9FLH
258.4FCH
0MWM—
270.6FCSL
10.1FLHAIRLINE
246.3FCSL
152.9FCH
14.2FCSL
258.4FCSL

Properties (4)

custom_field_three
HAIRLINE JOINT TO JOINT LONGER
custom_field_two
2
customer
LACSD
datetime
2017-10-30T02:02:38-07:00
