Wastewater/Activity/PacpInspection/1.0Sep 21, 2017, 06:37 AM
16 0189_16 0188_09202017_233732.mp4
- Date
- 09/20/2017
- W/O
- 657808
- Weather
- Dry
- Operator/Surveyor
- JUAN B
- Sewer ID
- Z00646
- PipeID
- P13232
- Time
- 11:37 PM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K4980
- Sewer Name
- 16 ARROYO SECO TRUNK, SECTION 3
- City
- PASADENA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 16
- Page No.
- 17
- Purpose
- Routine assessment
- Project
- WO_657808_TV16114_SEP2017
- Material
- NRCP
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 16 0189
- Downstream MH
- 16 0188
- Dir. of Survey
- Downstream
- Length Surveyed
- 366.3 ft.
- Total Length
- 366.3 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 5
Observation photos (2)

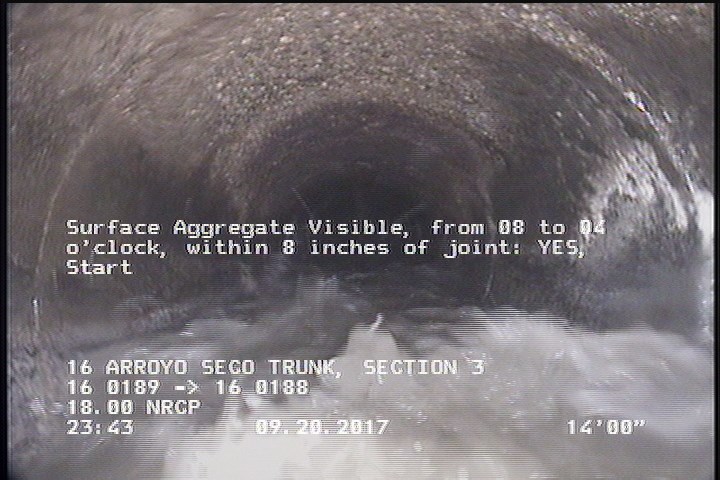

14 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

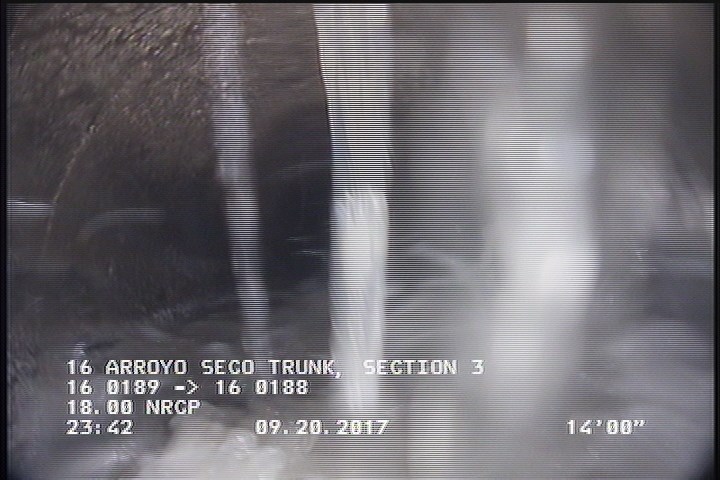

14 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 366.3 | SAV | — |
| 14 | SAV | — |
| 14 | DAGS | — |
| 6.9 | MGO | MAG COATING |
| 0 | MWL | — |
| 0 | MWM | — |
| 0 | AMH | 16 0189 |
| 366.3 | DAGS | — |
| 366.3 | AMH | 16 0188 |
Properties (5)
- additional_info
- SC345972
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-09-20T23:37:08-07:00
- sewer_category
- Gravity
