Wastewater/Activity/PacpInspection/1.0Sep 21, 2017, 07:05 AM
16 0187_16 0186_09212017_000537.mp4
- Date
- 09/21/2017
- W/O
- 657808
- Weather
- Dry
- Operator/Surveyor
- JUAN B
- Sewer ID
- Z00646
- PipeID
- P13230
- Time
- 12:05 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K4980
- Sewer Name
- 16 ARROYO SECO TRUNK, SECTION 3
- City
- PASADENA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 16
- Page No.
- 17
- Purpose
- Routine assessment
- Project
- WO_657808_TV16114_SEP2017
- Material
- NRCP
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 16 0187
- Downstream MH
- 16 0186
- Dir. of Survey
- Downstream
- Length Surveyed
- 111 ft.
- Total Length
- 111 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 5
Observation photos (2)

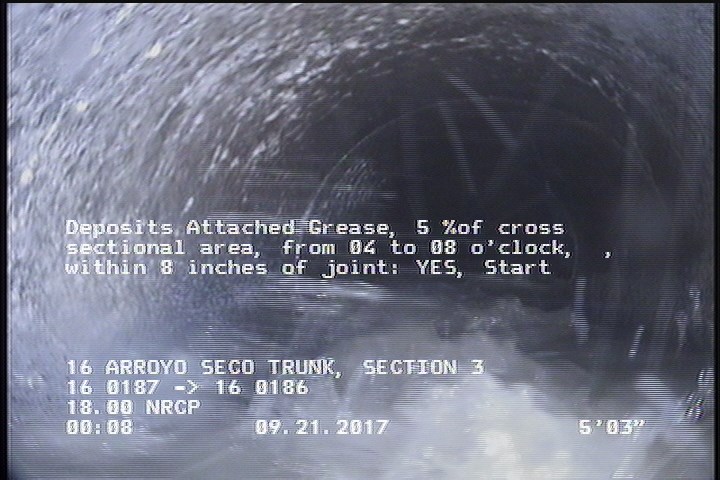

5.2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

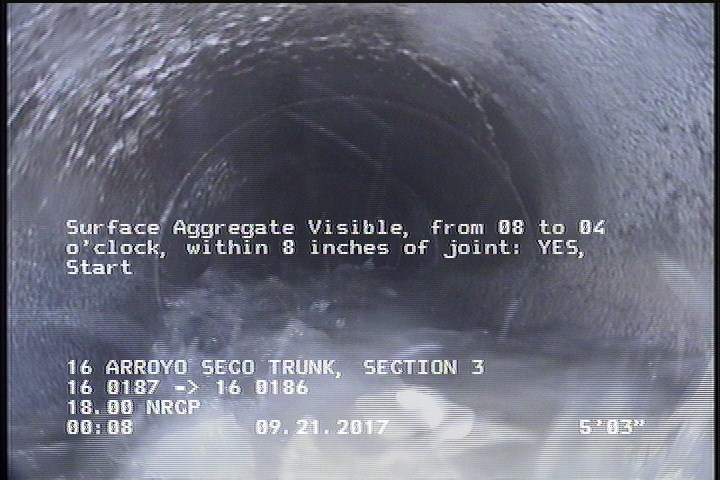

5.2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 31 | TF | — |
| 77.3 | TFC | — |
| 0 | MWL | — |
| 111 | AMH | 16 0186 |
| 111 | DAGS | — |
| 0 | MWM | — |
| 0 | AMH | 16 0187 |
| 5.2 | DAGS | — |
| 5.2 | SAV | — |
| 111 | SAV | — |
Properties (5)
- additional_info
- SC345972
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-09-21T00:05:14-07:00
- sewer_category
- Gravity
