Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 16, 2016, 06:56 AM

  • 29 0039_29 0038 _08152016_235628.mp4

Date
08/15/2016
W/O
582915
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00020
PipeID
P23819
Time
11:56 PM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3637
Sewer Name
29 EASTSIDE INTERCEPTOR TRUNK
City
LONG BEACH
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 03
Page No.
16
Purpose
Routine Assessment
Project
WO_582915_TV29022_JULY2016
Material
Vitrified Clay Pipe
Shape
Circular
Height
21 in.
Width
21 in.
Upstream MH
29 0039
Downstream MH
29 0038
Dir. of Survey
Downstream
Length Surveyed
168.1 ft.
Total Length
168.1 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2F00
O&M Rating
66
Overall Index
2
Overall Quick
—
Overall Rating
66
Pipe schematic from manhole 29 0039 to 29 0038
MH: 29 0039MH: 29 0038downstream0 ft. MGO - General Observation - COCKROACHES IN MANHOLE0 ft. AMH - Upstream Manhole, Survey Begins - 29 00390 ft. MWM - Water Mark, 10 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start166.3 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Finish168.1 ft. AMH - Downstream Manhole, Survey Ends - 29 0038168.1 ft. MGO - General Observation - COCKROACHES IN MANHOLE

Observation photos (3)

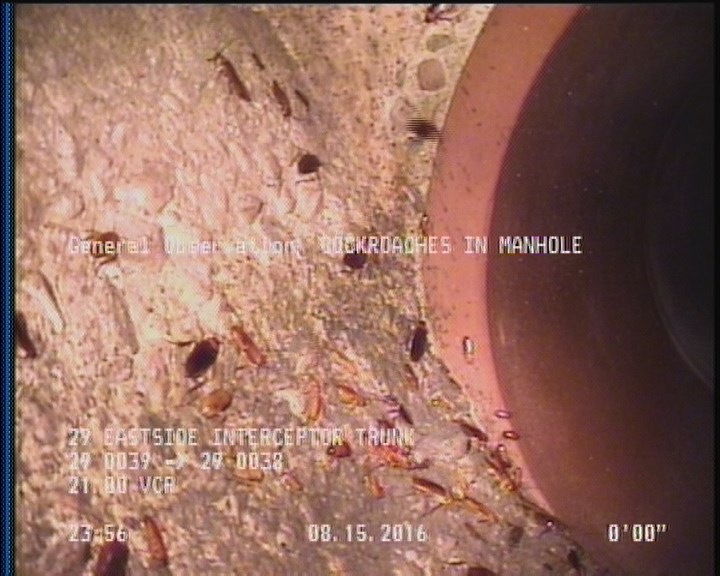

  • General Observation - COCKROACHES IN MANHOLE

    0 ft. - General Observation - COCKROACHES IN MANHOLE

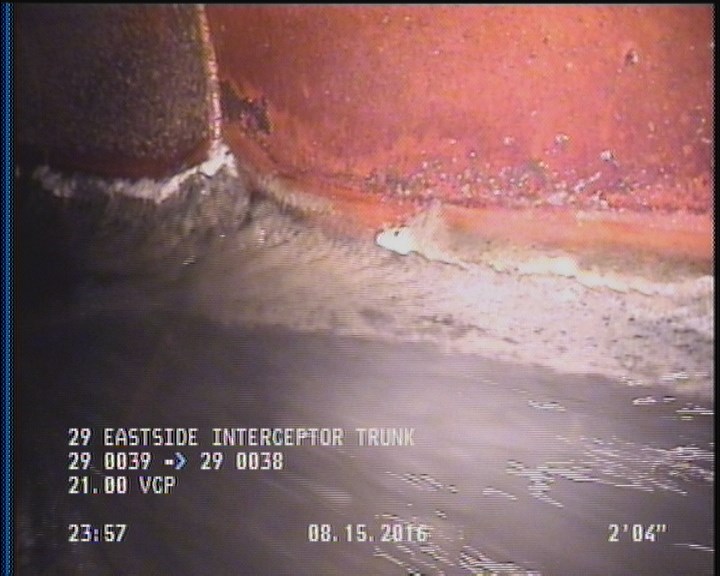

  • Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

  • General Observation - COCKROACHES IN MANHOLE

    168.1 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P23819Work order 582915

Observations (8)

DistanceCodeObservation
0MGOCOCKROACHES IN MANHOLE
168.1AMH29 0038
166.3DAGS—
2DAGS—
0AMH29 0039
0MWM—
0MWL—
168.1MGOCOCKROACHES IN MANHOLE

Properties (5)

additional_info
SC306072
custom_field_two
4
customer
LACSD
datetime
2016-08-15T23:56:03-07:00
sewer_category
Gravity
