Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 16, 2016, 08:53 AM

  • 29 0036_C 0622 _08162016_015606.mp4

Date
08/16/2016
W/O
582915
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00020
PipeID
P23816
Time
1:53 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3637
Sewer Name
29 EASTSIDE INTERCEPTOR TRUNK
City
LONG BEACH
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 03
Page No.
20
Purpose
Routine Assessment
Project
WO_582915_TV29022_JULY2016
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
29 0036
Downstream MH
C 0622
Dir. of Survey
Downstream
Length Surveyed
257 ft.
Total Length
257 ft.
Structural Index
3
Structural Quick
5133
Structural Rating
16
O&M Index
2
O&M Quick
2200
O&M Rating
4
Overall Index
3
Overall Quick
—
Overall Rating
20
Pipe schematic from manhole 29 0036 to C 0622
MH: 29 0036MH: C 0622downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 29 00360 ft. MWM - Water Mark, 15 %of cross sectional area2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start2 ft. CL - Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES, 6ft117.6 ft. MMC - Material Change, Concrete pipe (non-reinfored)117.6 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start117.6 ft. HSV - Hole Soil Visible, at 08 o'clock, within 8 inches of joint: YES130.3 ft. MMC - Material Change, Vitrified clay pipe130.3 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish130.3 ft. RPP - Repair Patch, from 07 to 08 o'clock, within 8 inches of joint: YES - SMALL PATCH257 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish257 ft. AMH - Downstream Manhole, Survey Ends - C 0622257 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 9 O'CLOCK

Observation photos (6)

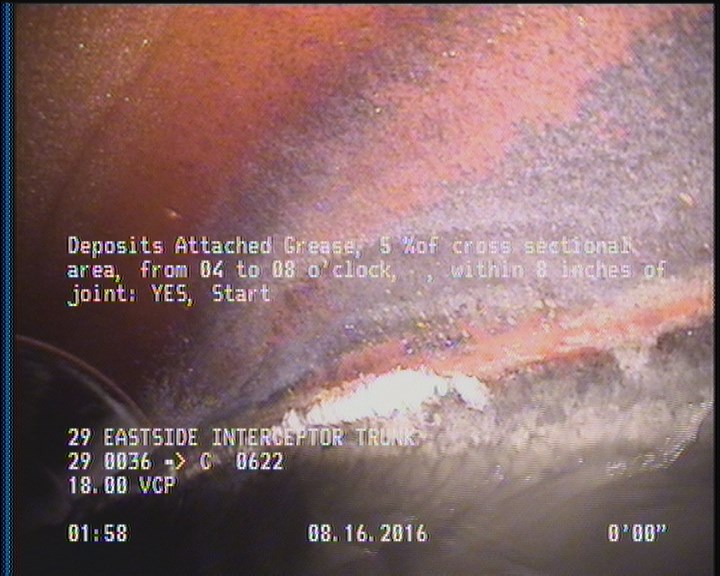

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

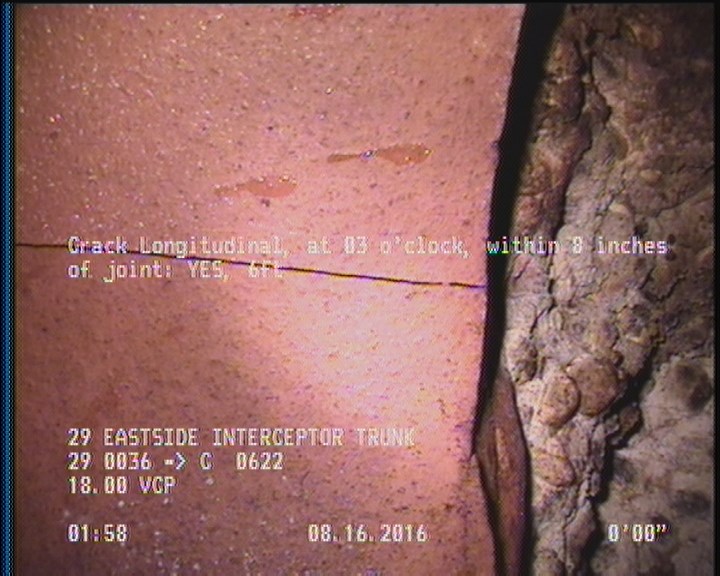

  • Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES, 6ft

    2 ft. - Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES, 6ft

  • Material Change, Concrete pipe (non-reinfored)

    117.6 ft. - Material Change, Concrete pipe (non-reinfored)

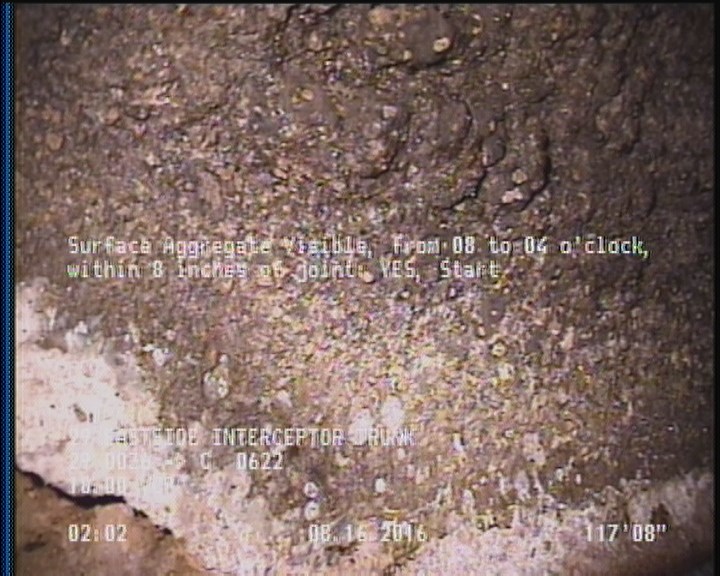

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    117.6 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

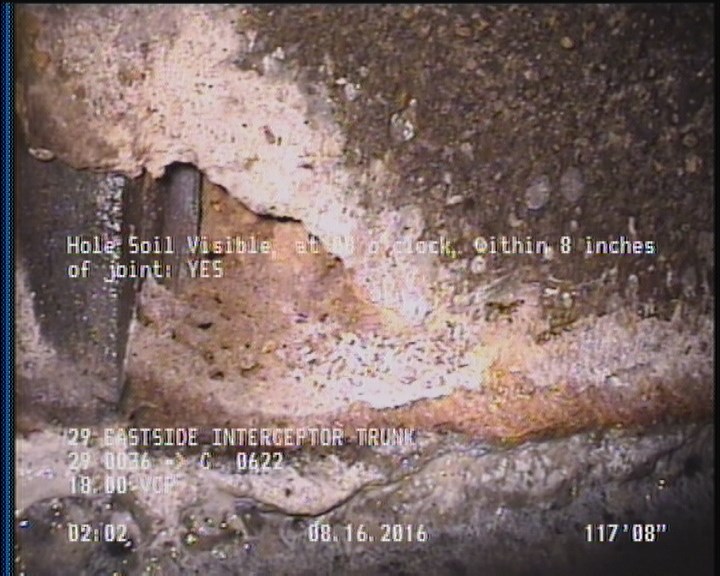

  • Hole Soil Visible, at 08 o'clock, within 8 inches of joint: YES

    117.6 ft. - Hole Soil Visible, at 08 o'clock, within 8 inches of joint: YES

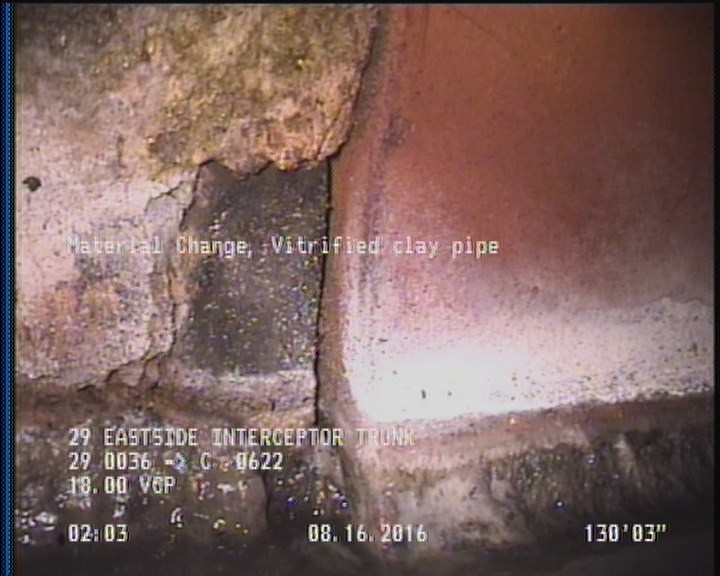

  • Material Change, Vitrified clay pipe

    130.3 ft. - Material Change, Vitrified clay pipe

All inspections of P23816Work order 582915

Observations (14)

DistanceCodeObservation
130.3MMC—
117.6MMC—
257DAGS—
117.6SAV—
130.3SAV—
130.3RPPSMALL PATCH
0MWL—
0AMH29 0036
117.6HSV—
0MWM—
2DAGS—
257AMHC 0622
257MGOACTIVE CONNECTION AT MH 9 O'CLOCK
2CL—

Properties (5)

additional_info
SC306072
custom_field_two
2
customer
LACSD
datetime
2016-08-16T01:53:55-07:00
sewer_category
Gravity
