Wastewater/Activity/PacpInspection/1.0Aug 16, 2016, 07:40 AM
29 0038_29 0037 _08162016_004124.mp4
- Date
- 08/16/2016
- W/O
- 582915
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00020
- PipeID
- P23818
- Time
- 12:40 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3637
- Sewer Name
- 29 EASTSIDE INTERCEPTOR TRUNK
- City
- LONG BEACH
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 03
- Page No.
- 16
- Purpose
- Routine Assessment
- Project
- WO_582915_TV29022_JULY2016
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- 29 0038
- Downstream MH
- 29 0037
- Dir. of Survey
- Downstream
- Length Surveyed
- 567.9 ft.
- Total Length
- 567.9 ft.
- Structural Index
- 2
- Structural Quick
- 2200
- Structural Rating
- 4
- O&M Index
- 2
- O&M Quick
- 2V00
- O&M Rating
- 226
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 230
Observation photos (4)

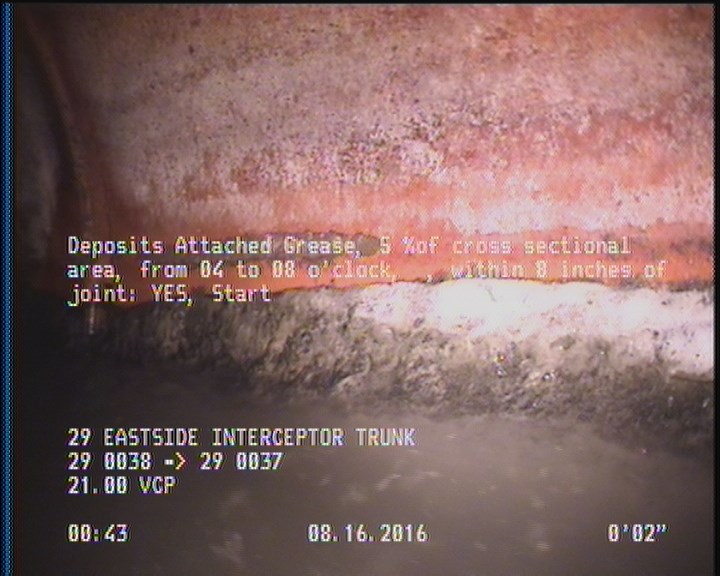

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

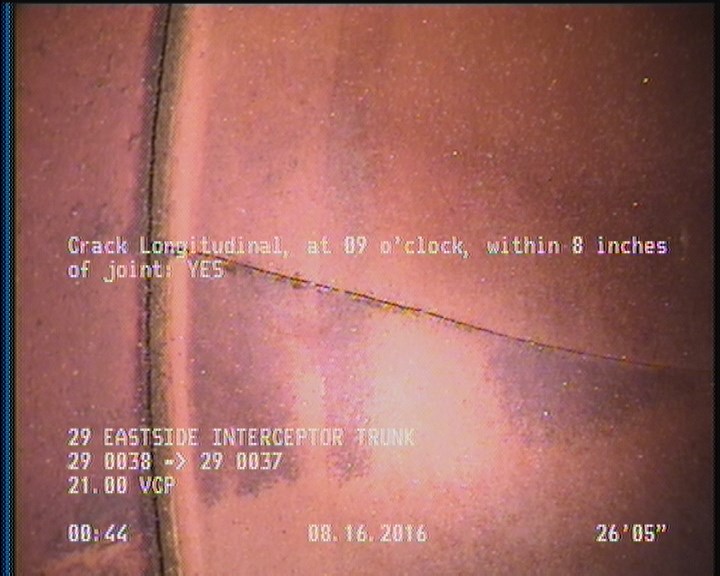

26.4 ft. - Crack Longitudinal, at 09 o'clock, within 8 inches of joint: YES

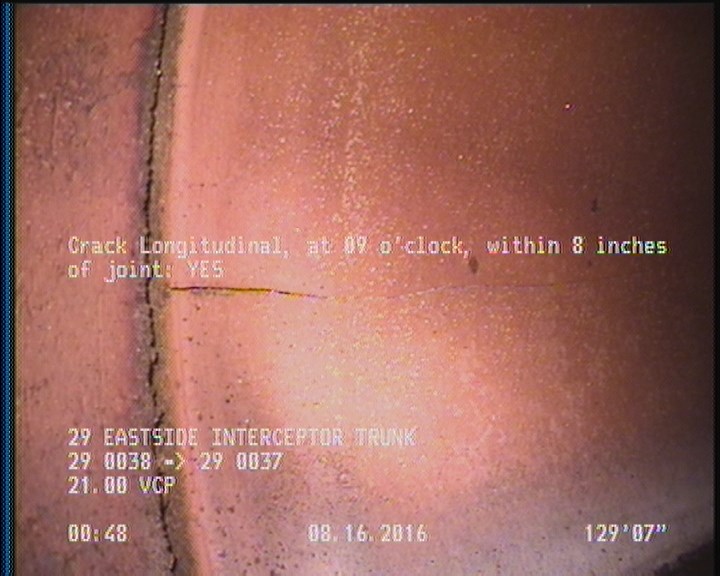

129.6 ft. - Crack Longitudinal, at 09 o'clock, within 8 inches of joint: YES

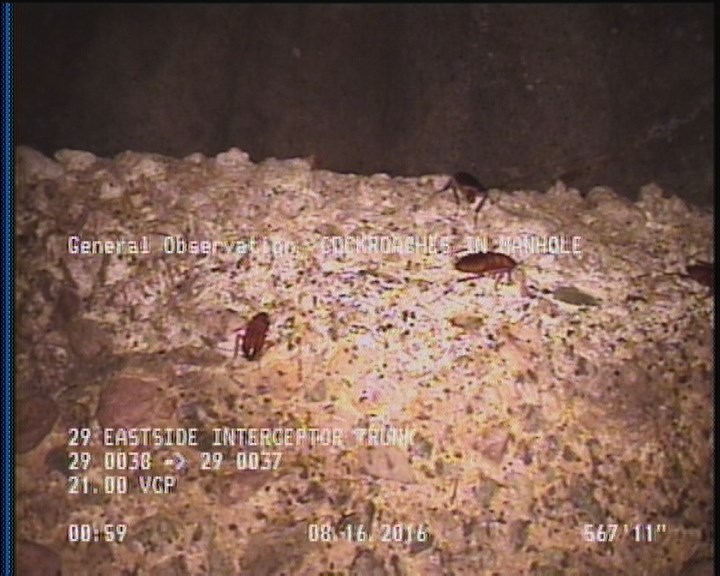

567.9 ft. - General Observation - COCKROACHES IN MANHOLE
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 567.9 | MGO | COCKROACHES IN MANHOLE |
| 2 | DAGS | — |
| 567.9 | AMH | 29 0037 |
| 565.5 | DAGS | — |
| 129.6 | CL | — |
| 0 | AMH | 29 0038 |
| 26.4 | CL | — |
| 0 | MWL | — |
| 0 | MWM | — |
Properties (5)
- additional_info
- SC306072
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-08-16T00:40:56-07:00
- sewer_category
- Gravity
