Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 13, 2017, 07:38 AM

  • 01 1080_STACK_10132017_093051.mp4

Date
10/13/2017
W/O
0667927
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00210
PipeID
P01962
Time
12:38 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G6851
Sewer Name
01 HUNTINGTON PARK TRUNK
City
HUNTINGTON PARK
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
07
Purpose
Maintenance Related
Project
20171013MDM_HUNTING_PARK_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Upstream MH
01 1080
Downstream MH
STACK
Dir. of Survey
Downstream
Length Surveyed
7 ft.
Total Length
7 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
0
Overall Quick
—
Overall Rating
0
Pipe schematic from manhole 01 1080 to STACK
MH: 01 1080MH: STACKdownstream0 ft. AMH - , Survey Begins - 12:45AM1 ft. MGO - General Observation - TOPVIEW MH BOTTOM2 ft. MGO - General Observation - SOUTH STOPLOG GROOVE TOP3 ft. MGO - General Observation - NORTH STOPLOG GROOVE TOP4 ft. MGO - General Observation - SOUTH GROOVE BOTTOM5 ft. MGO - General Observation - SOUTH GROOVE TOP6 ft. MGO - General Observation - NORTH GROOVE BOTTOM7 ft. MGO - General Observation - NORTH GROOVE TOP

Observation photos (7)

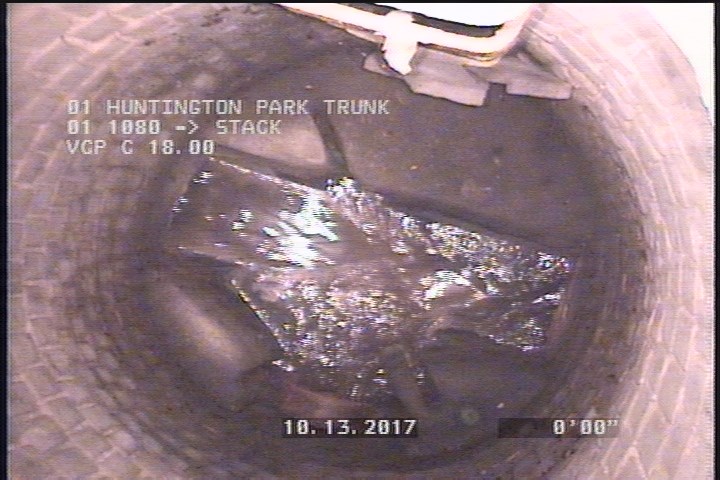

  • General Observation - TOPVIEW MH BOTTOM

    1 ft. - General Observation - TOPVIEW MH BOTTOM

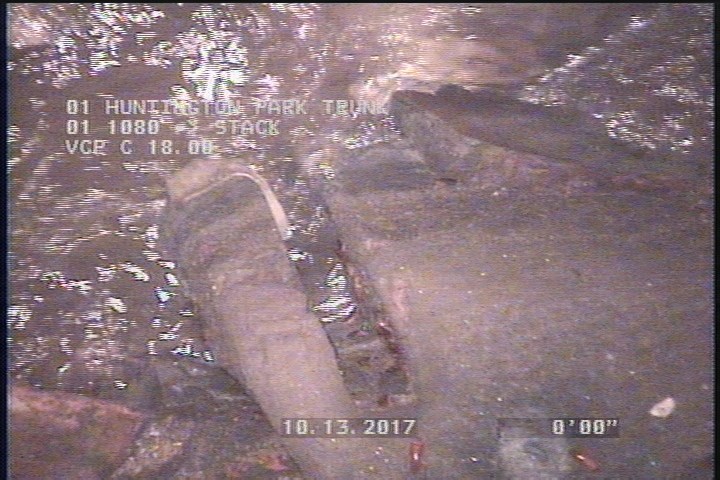

  • General Observation - SOUTH STOPLOG GROOVE TOP

    2 ft. - General Observation - SOUTH STOPLOG GROOVE TOP

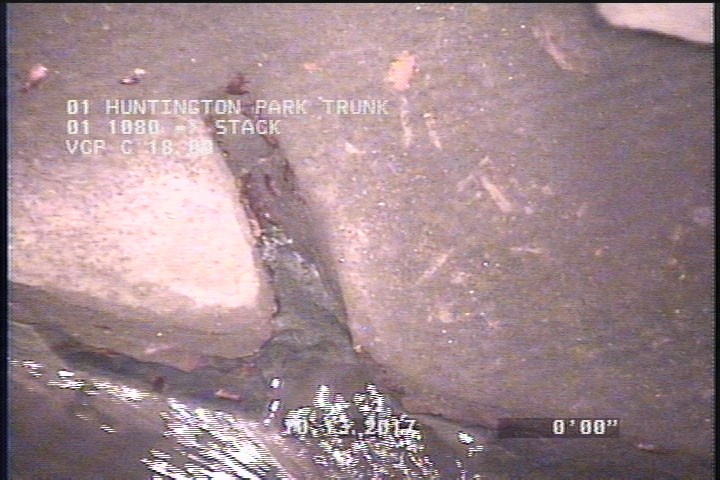

  • General Observation - NORTH STOPLOG GROOVE TOP

    3 ft. - General Observation - NORTH STOPLOG GROOVE TOP

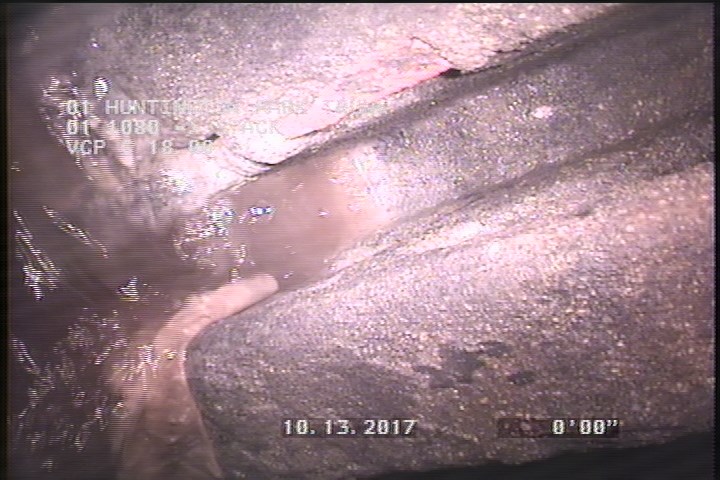

  • General Observation - SOUTH GROOVE BOTTOM

    4 ft. - General Observation - SOUTH GROOVE BOTTOM

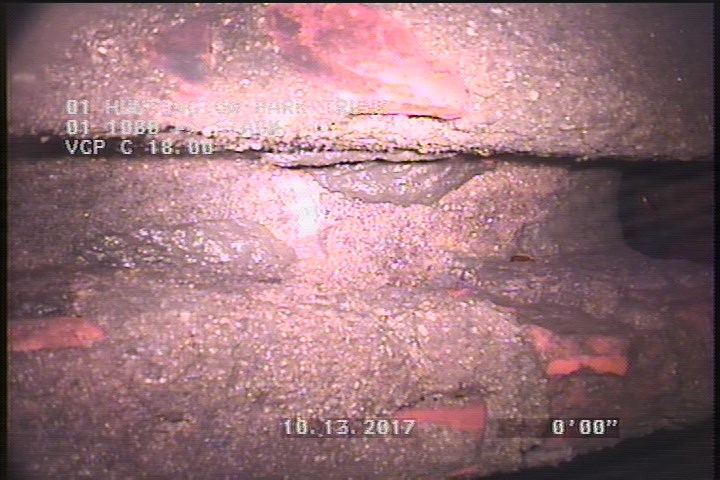

  • General Observation - SOUTH GROOVE TOP

    5 ft. - General Observation - SOUTH GROOVE TOP

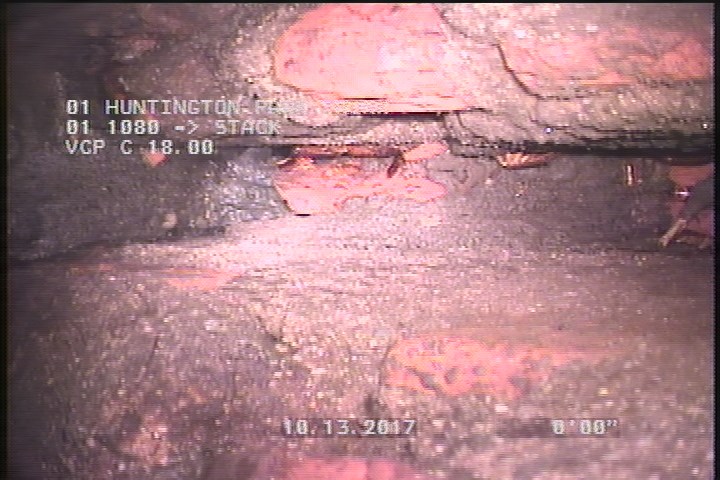

  • General Observation - NORTH GROOVE BOTTOM

    6 ft. - General Observation - NORTH GROOVE BOTTOM

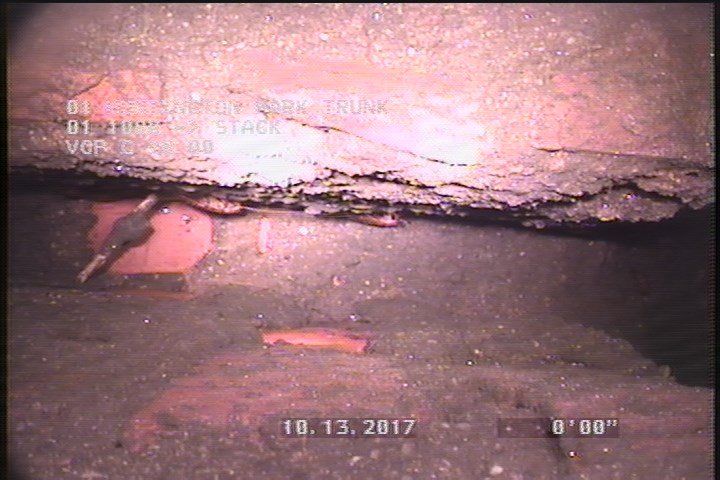

  • General Observation - NORTH GROOVE TOP

    7 ft. - General Observation - NORTH GROOVE TOP

All inspections of P01962Work order 0667927

Observations (8)

DistanceCodeObservation
2MGOSOUTH STOPLOG GROOVE TOP
0AMH12:45AM
3MGONORTH STOPLOG GROOVE TOP
1MGOTOPVIEW MH BOTTOM
5MGOSOUTH GROOVE TOP
7MGONORTH GROOVE TOP
4MGOSOUTH GROOVE BOTTOM
6MGONORTH GROOVE BOTTOM

Properties (3)

additional_info
STOPLOG GROOVES GOOD USEABLE CONDITION
customer
LACSD
datetime
2017-10-13T00:38:25-07:00
