Wastewater/Activity/PacpInspection/1.0Sep 27, 2017, 04:45 AM
18 1261_18 1260_26092017_220601.mp4
- Date
- 09/26/2017
- W/O
- 651863
- Weather
- Dry
- Operator/Surveyor
- JUAN
- Sewer ID
- Z00685
- PipeID
- P26457
- Time
- 9:45 PM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K4984
- Sewer Name
- 18 LA MIRADA RELIEF TRUNK
- City
- LA MIRADA
- Loc. details
- Railway
- Location Code
- L
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 31
- Purpose
- Routine Assessment
- Project
- WO_651863_TV18168_AUG2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 30 in.
- Width
- 30 in.
- Upstream MH
- 18 1261
- Downstream MH
- 18 1260
- Dir. of Survey
- Downstream
- Length Surveyed
- 432.3 ft.
- Total Length
- 432.3 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2200
- O&M Rating
- 4
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 4
Observation photos (2)

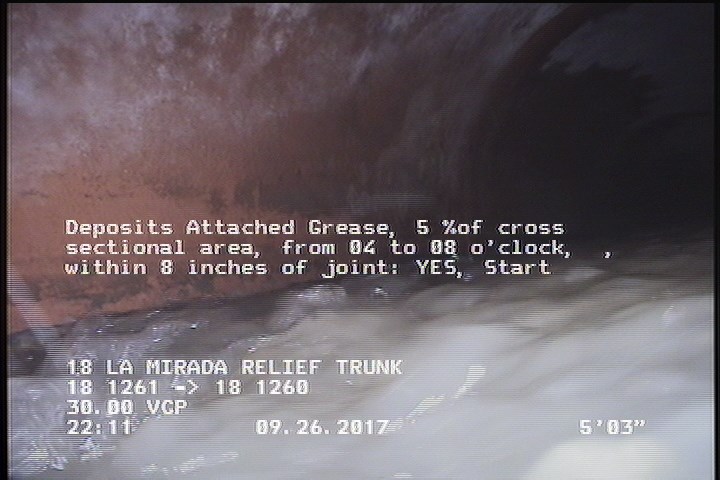

5 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

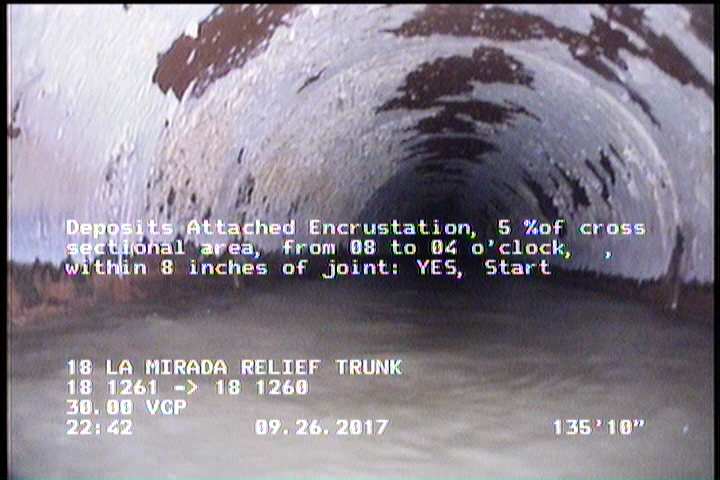

132 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 132 | DAE | — |
| 432.3 | DAGS | — |
| 432.3 | AMH | 18 1260 |
| 432.3 | DAE | — |
| 5 | DAGS | — |
| 0 | AMH | 18 1261 |
| 0.1 | MWM | — |
| 23 | MGO | RESUMING VIDEO |
Properties (6)
- additional_info
- SC345976
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-09-26T21:45:28-07:00
- sewer_category
- Gravity
- year_laid
- 42004
