Wastewater/Activity/PacpInspection/1.0Sep 8, 2017, 10:23 AM
01 0697_01 0696_08092017_033613.mp4
- Date
- 09/08/2017
- W/O
- 657829
- Weather
- Dry
- Operator/Surveyor
- CORTEZ ESTEBAN
- Sewer ID
- Z00199
- PipeID
- P01406
- Time
- 3:23 AM
- Certificate
- U-209-8148
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4920
- Sewer Name
- 01 CALIFORNIA AVENUE EXTENSION TRUNK
- City
- SOUTH GATE
- Loc. details
- Main Highway - Suburban/Rural
- Location Code
- B
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 11
- Purpose
- Routine Assessment
- Project
- WO_657829_TV01115_SEP2017
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 30 in.
- Width
- 30 in.
- Upstream MH
- 01 0697
- Downstream MH
- 01 0696
- Dir. of Survey
- Downstream
- Length Surveyed
- 388.4 ft.
- Total Length
- 388.4 ft.
- Structural Index
- 3
- Structural Quick
- 3121
- Structural Rating
- 5
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 5
Observation photos (2)

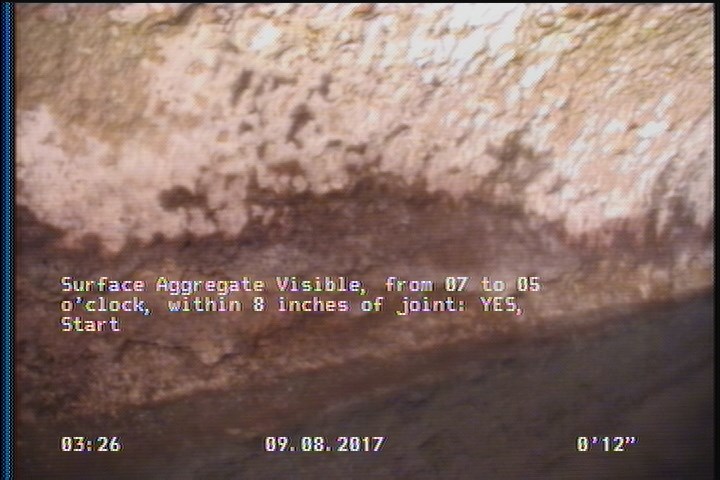

1 ft. - Surface Aggregate Visible, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

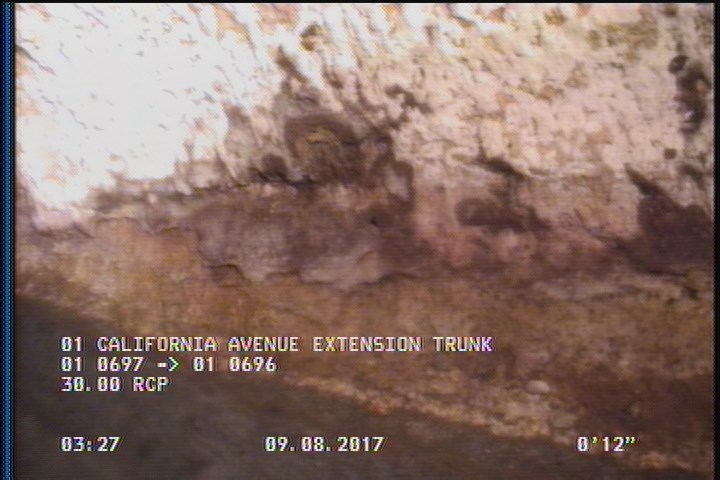

1 ft. - Surface Spalling, from 07 to 05 o'clock, within 8 inches of joint: YES, Start
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 01 0697 |
| 1 | SAV | — |
| 388.4 | AMH | 01 0696 |
| 1 | SSS | — |
| 0 | MWL | — |
| 384.2 | SSS | — |
| 0 | MWM | — |
| 385.9 | SAV | — |
Properties (4)
- additional_info
- SC345812
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-09-08T03:23:47-07:00
