Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 16, 2016, 08:32 AM

  • C 0020A_C 0020_20160916_005841.mp4

Date
09/16/2016
W/O
574348
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00116
PipeID
P09491
Time
1:32 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3584
Sewer Name
C JOINT OUTFALL C - UNIT 1
City
WILMINGTON
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 08
Page No.
17
Purpose
Routine Assessment
Project
WO_574348_TV08064_JULY2016
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
72 in.
Width
72 in.
Upstream MH
C 0020A
Downstream MH
C 0020
Dir. of Survey
Downstream
Length Surveyed
754.6 ft.
Total Length
754.6 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
3
O&M Quick
423B
O&M Rating
47
Overall Index
3
Overall Quick
—
Overall Rating
47
Pipe schematic from manhole C 0020A to C 0020
MH: C 0020AMH: C 0020downstream0 ft. MWM - Water Mark, 60 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - C 0020A0 ft. MWL - Water Level, 25 %of cross sectional area9.5 ft. DSZ - Deposits Settled Other, 15 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: NO361.9 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"463.1 ft. DSZ - Deposits Settled Other, 15 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: NO, Start466.6 ft. MCU - Camera Underwater, Start471.6 ft. MCU - Camera Underwater, Finish517.6 ft. DSZ - Deposits Settled Other, 15 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: NO, Finish640.5 ft. DSZ - Deposits Settled Other, 15 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: NO754.6 ft. AMH - Downstream Manhole, Survey Ends - C 0019754.6 ft. MGO - General Observation - DOES NOT GO TO MH C 0020 GOES TO C 0019

Observation photos (2)

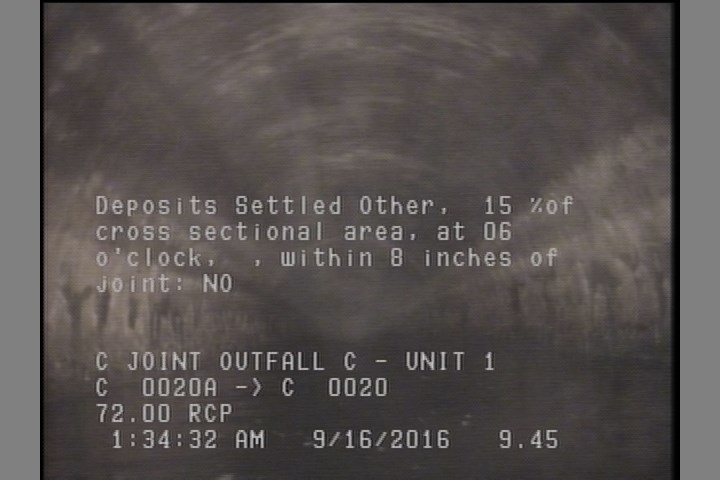

  • Deposits Settled Other, 15 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: NO

    9.5 ft. - Deposits Settled Other, 15 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: NO

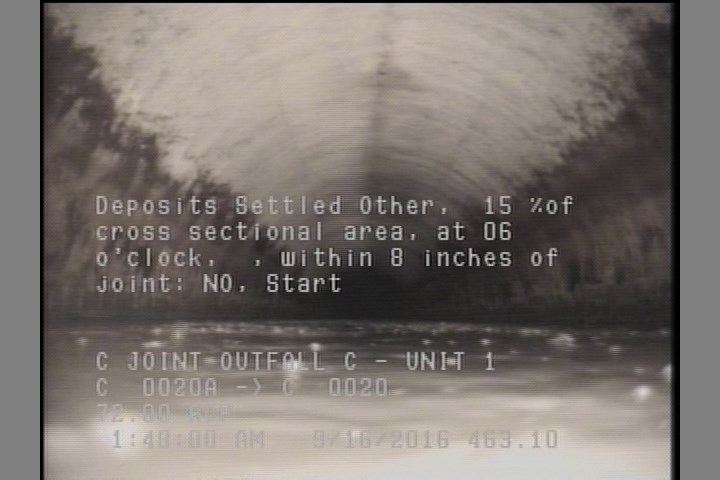

  • Deposits Settled Other, 15 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: NO, Start

    463.1 ft. - Deposits Settled Other, 15 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: NO, Start

All inspections of P09491Work order 574348

Observations (12)

DistanceCodeObservation
471.6MCU—
0MWM—
0AMHC 0020A
466.6MCU—
640.5DSZ—
463.1DSZ—
0MWL—
9.5DSZ—
517.6DSZ—
361.9TF—
754.6AMHC 0019
754.6MGODOES NOT GO TO MH C 0020 GOES TO C 0019

Properties (6)

additional_info
SC306178
custom_field_two
4
customer
LACSD
datetime
2016-09-16T01:32:09-07:00
lining
FR POLY LINE
year_laid
33763
