Wastewater/Activity/PacpInspection/1.0May 9, 2016, 11:13 AM
15 0237_15 0236_20160509_043150.mp4
- Date
- 05/09/2016
- W/O
- 568734
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00627
- PipeID
- P12159
- Time
- 4:13 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3343
- Sewer Name
- 15 SAN JOSE CREEK TRUNK
- City
- INDUSTRY
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 33
- Purpose
- Routine Assessment
- Project
- WO_568734_TV15001_MAY2016
- Sewer Type
- GRAVITY
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 36 in.
- Upstream MH
- 15 0237
- Downstream MH
- 15 0236
- Dir. of Survey
- Downstream
- Length Surveyed
- 358.7 ft.
- Total Length
- 358.7 ft.
- Structural Index
- 2
- Structural Quick
- 3M2M
- Structural Rating
- 349
- O&M Index
- 2
- O&M Quick
- 2[00
- O&M Rating
- 276
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 625
Observation photos (4)

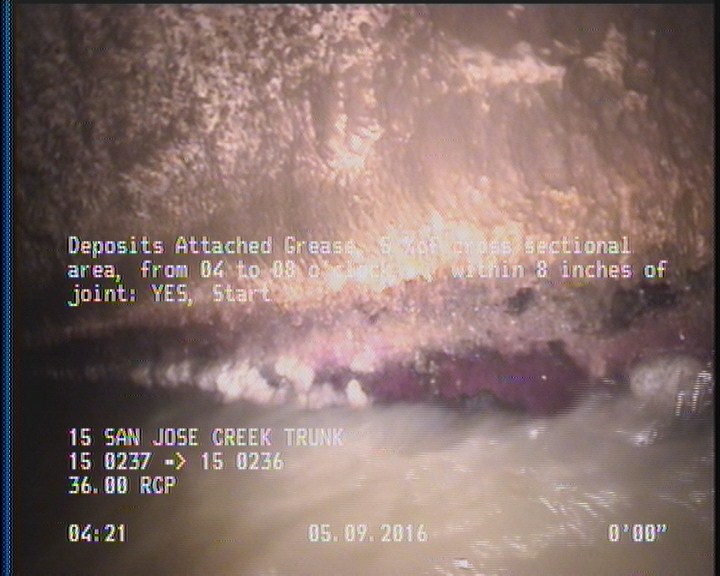

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

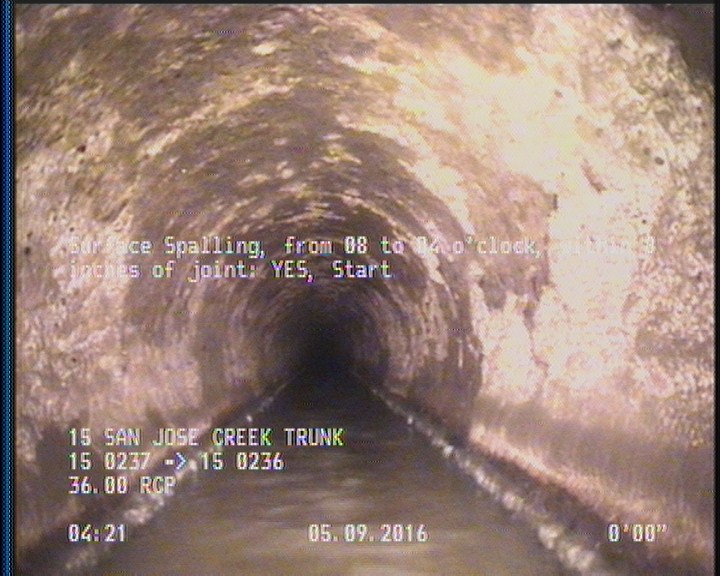

2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

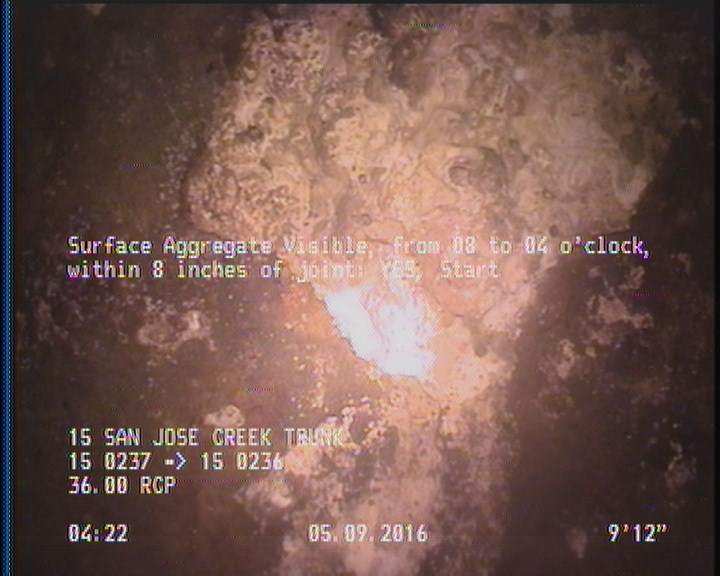

9.5 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

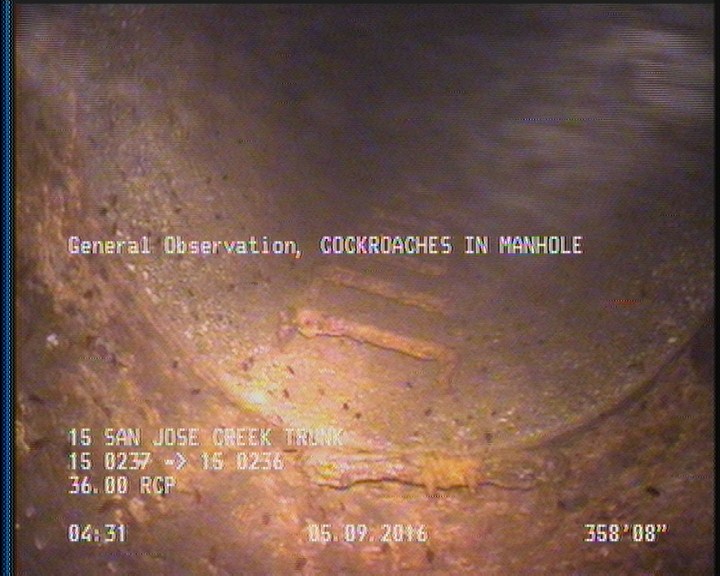

358.7 ft. - General Observation - COCKROACHES IN MANHOLE
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 2 | DAGS | — |
| 0 | AMH | 15 0237 |
| 355.7 | SSS | — |
| 358.7 | MGO | COCKROACHES IN MANHOLE |
| 21.5 | DSZ | — |
| 355.7 | DAGS | — |
| 2 | SSS | — |
| 0 | MWL | — |
| 355.7 | DSZ | — |
| 358.7 | AMH | 15 0236 |
| 0 | MWM | — |
| 355.7 | SAV | — |
| 9.5 | SAV | — |
Properties (4)
- additional_info
- SC305622
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-05-09T04:13:10-07:00
