Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 17, 2016, 09:09 AM

  • 15 0250_15 0249_20160517_024618.mp4

Date
05/17/2016
W/O
568734
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00627
PipeID
P12172
Time
2:09 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3352
Sewer Name
15 SAN JOSE CREEK TRUNK
City
LA PUENTE
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
34
Purpose
Routine Assessment
Project
WO_568734_TV15001_MAY2016
Sewer Type
GRAVITY
Material
Reinforced Concrete Pipe
Shape
Circular
Height
18 in.
Upstream MH
15 0249
Downstream MH
15 0250
Dir. of Survey
Upstream
Length Surveyed
318.9 ft.
Total Length
318.9 ft.
Structural Index
3
Structural Quick
3K00
Structural Rating
183
O&M Index
2
O&M Quick
2L00
O&M Rating
130
Overall Index
2
Overall Quick
—
Overall Rating
313
Pipe schematic from manhole 15 0249 to 15 0250
MH: 15 0249MH: 15 0250upstream0 ft. MGO - General Observation - COCKROACHES IN MANHOLE0 ft. AMH - Upstream Manhole, Survey Ends - 15 02501.1 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish1.1 ft. SAV - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish101.5 ft. TBC - Tap Break-In Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"206.8 ft. TBC - Tap Break-In Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"284.3 ft. TFA - Tap Factory Made Active, at 09 o'clock, -, within 8 inches of joint: NO, 6"304.9 ft. SAV - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start313.9 ft. MGO - General Observation - MAG COATING 40%316.9 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start318.9 ft. AMH - Downstream Manhole, Survey Begins - 15 0249318.9 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 10 O'CLOCK318.9 ft. MWL - Water Level, 15 %of cross sectional area318.9 ft. MWM - Water Mark, 25 %of cross sectional area318.9 ft. MGO - General Observation - COCKROACHES IN MANHOLE

Observation photos (4)

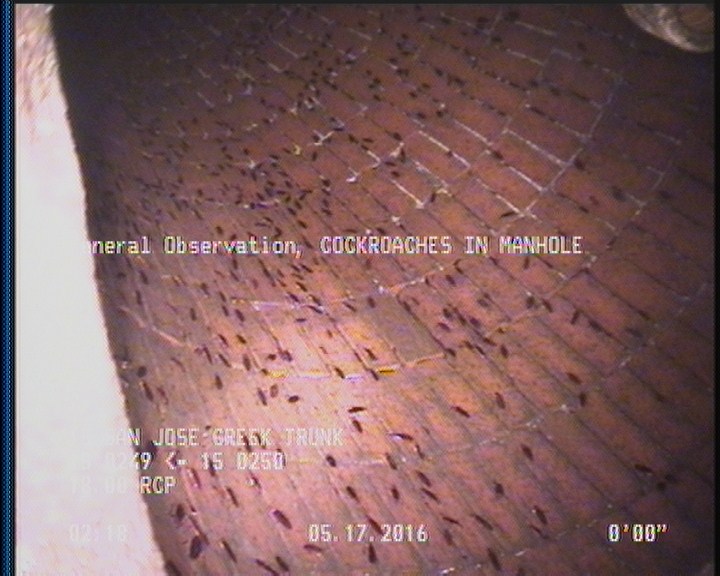

  • General Observation - COCKROACHES IN MANHOLE

    0 ft. - General Observation - COCKROACHES IN MANHOLE

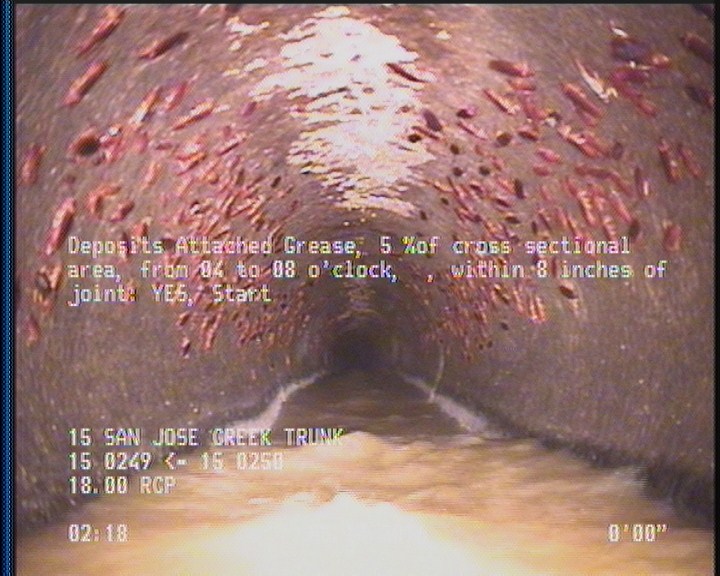

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

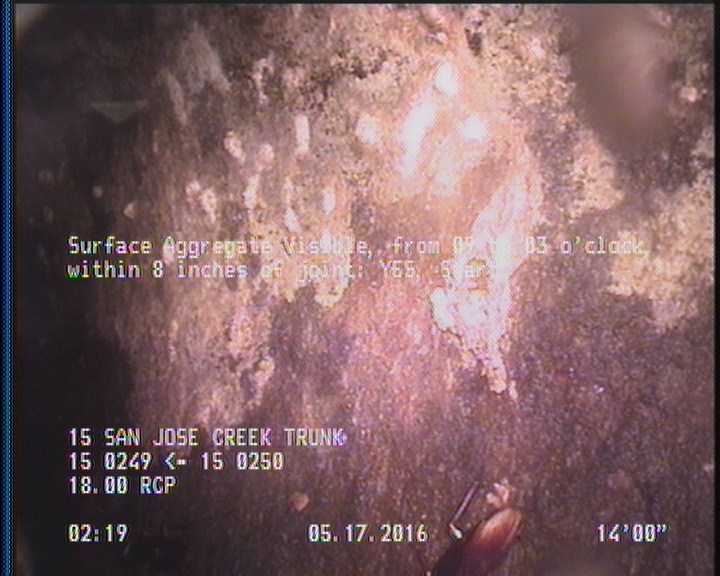

  • Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    14 ft. - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

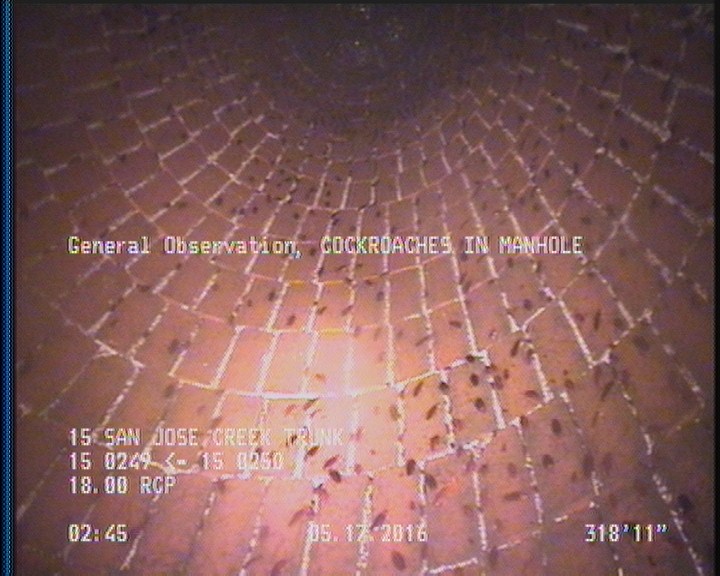

  • General Observation - COCKROACHES IN MANHOLE

    318.9 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P12172Work order 568734

Observations (15)

DistanceCodeObservation
317.8DAGS—
0AMH15 0249
2DAGS—
0MGOACTIVE CONNECTION AT MH 10 O'CLOCK
317.8SAV—
0MWL—
0MWM—
318.9MGOCOCKROACHES IN MANHOLE
0MGOCOCKROACHES IN MANHOLE
14SAV—
34.6TFA—
112.1TBC—
318.9AMH15 0250
5MGOMAG COATING 40%
217.4TBC—

Properties (4)

additional_info
SC305632
custom_field_two
3
customer
LACSD
datetime
2016-05-17T02:09:21-07:00
