Wastewater/Activity/PacpInspection/1.0Aug 3, 2016, 04:35 PM
15 0252_15 0251_20160803_104918.mp4
- Date
- 08/03/2016
- W/O
- 568734
- Weather
- Dry
- Operator/Surveyor
- N.ZAHREDDINE
- Sewer ID
- Z00627
- PipeID
- P12174
- Time
- 9:35 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3416
- Sewer Name
- 15 SAN JOSE CREEK TRUNK
- City
- LA PUENTE
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 34
- Purpose
- Routine Assessment
- Project
- WO_568734_TV15001_MAY2016
- Sewer Type
- GRAVITY
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 18 in.
- Upstream MH
- 15 0252
- Downstream MH
- 15 0251
- Dir. of Survey
- Downstream
- Length Surveyed
- 347.4 ft.
- Total Length
- 347.4 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 1
- O&M Quick
- 2112
- O&M Rating
- 4
- Overall Index
- 1
- Overall Quick
- —
- Overall Rating
- 4
Observation photos (3)

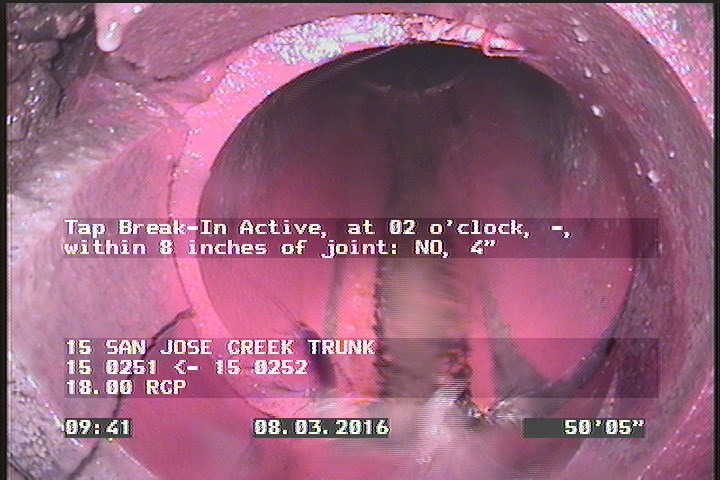

50.4 ft. - Tap Break-In Active, at 02 o'clock, -, within 8 inches of joint: NO, 4"

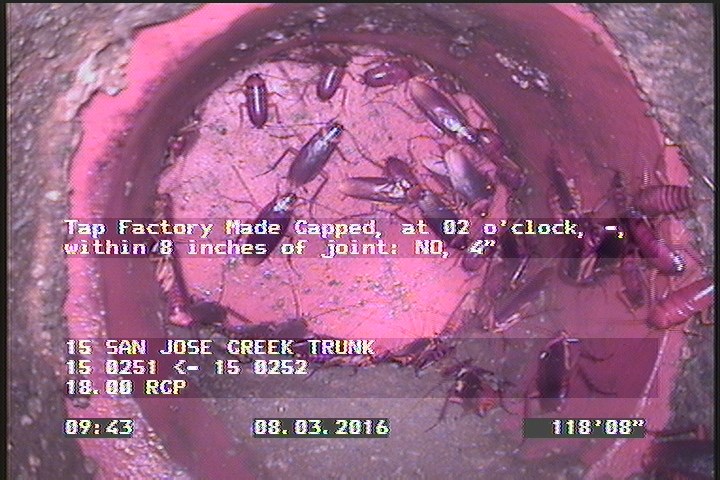

118.6 ft. - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"

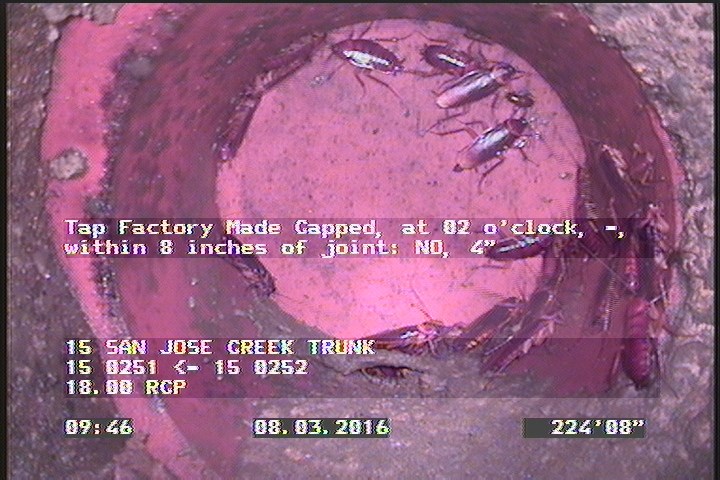

224.7 ft. - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 2 | MGO | MAG.H.C. 30% START |
| 224.7 | TFC | — |
| 347.4 | VC | — |
| 118.6 | TFC | — |
| 0 | VC | — |
| 50.4 | TBA | — |
| 0 | MWL | — |
| 343.9 | OBZ | DEBRIS UNDER WATER |
| 18.3 | OBZ | DEBRIS UNDER WATER |
| 343.9 | MGO | MAG.H.C. 30% FINISH |
| 0 | MWM | — |
| 0 | AMH | 15 0252 |
| 347.4 | AMH | 15 0251 |
Properties (4)
- additional_info
- SC305962
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-08-03T09:35:41-07:00
