Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 29, 2016, 08:19 AM

  • 15 0256_15 0255_20160429_014200.mp4

Date
04/29/2016
W/O
568734
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00627
PipeID
P12178
Time
1:19 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3334
Sewer Name
15 SAN JOSE CREEK TRUNK
City
LA PUENTE
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
34
Purpose
Routine Assessment
Project
WO_568734_TV15001_MAY2016
Sewer Type
GRAVITY
Material
Reinforced Concrete Pipe
Shape
Circular
Height
18 in.
Upstream MH
15 0256
Downstream MH
15 0255
Dir. of Survey
Downstream
Length Surveyed
506.7 ft.
Total Length
506.7 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
412b
O&M Rating
356
Overall Index
2
Overall Quick
—
Overall Rating
356
Pipe schematic from manhole 15 0256 to 15 0255
MH: 15 0256MH: 15 0255downstream0 ft. MGO - General Observation - COCKROACHES IN MANHOLE0 ft. MWL - Water Level, 35 %of cross sectional area0 ft. MWM - Water Mark, 50 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 15 02562 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start8.1 ft. MGO - General Observation - MAG COATING 60%87.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"129.2 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start200 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"306.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"402.9 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"491.2 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"504.8 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish504.8 ft. MGO - General Observation - COCKROACHES IN MANHOLE504.8 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Finish506.7 ft. AMH - Downstream Manhole, Survey Ends - 15 0255

Observation photos (3)

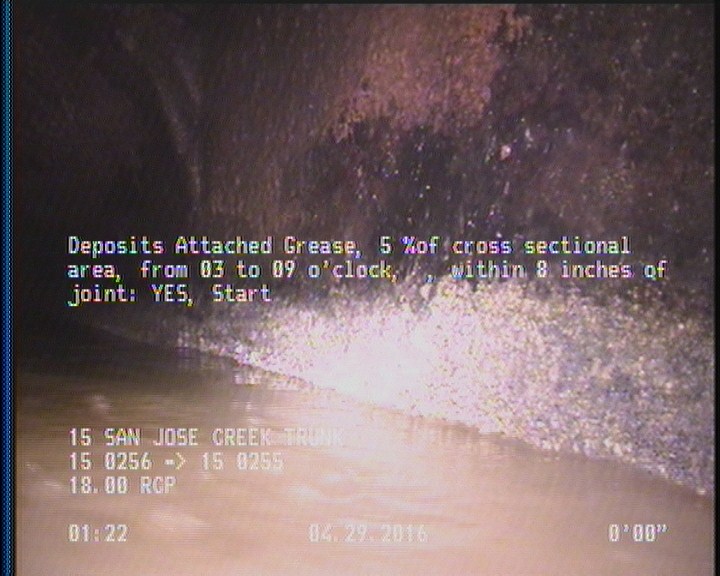

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

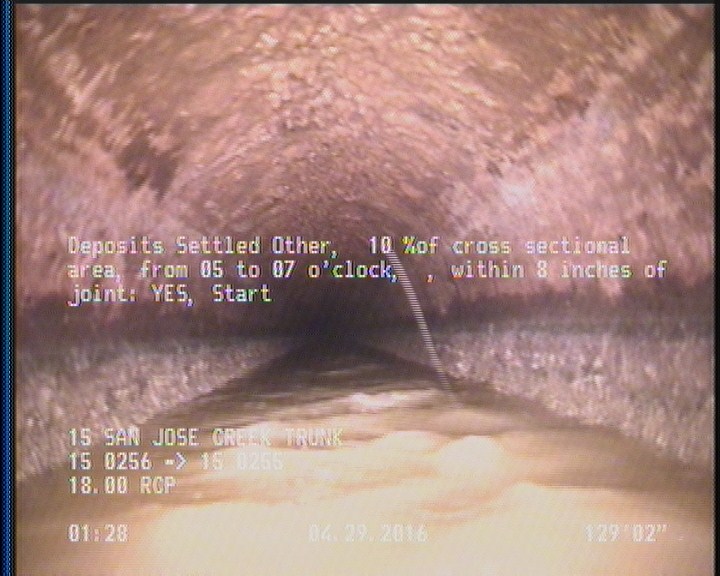

  • Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

    129.2 ft. - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

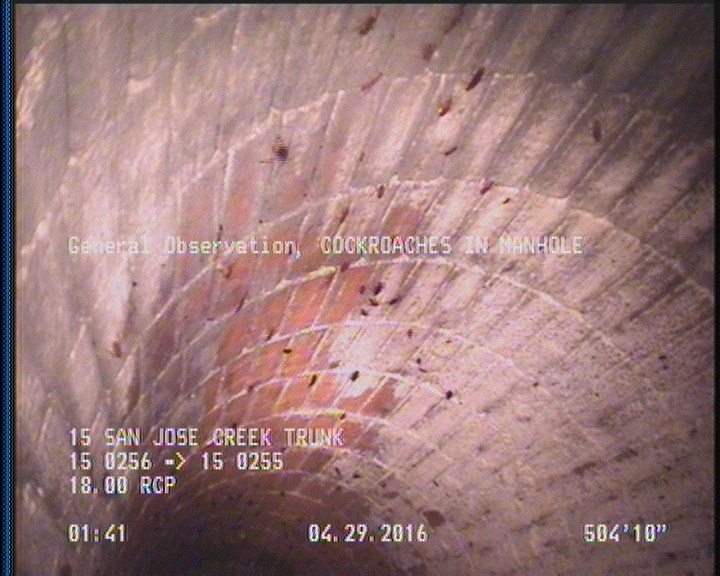

  • General Observation - COCKROACHES IN MANHOLE

    504.8 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P12178Work order 568734

Observations (16)

DistanceCodeObservation
504.8DAGS—
0MGOCOCKROACHES IN MANHOLE
2DAGS—
306.4TFC—
87.8TFC—
504.8MGOCOCKROACHES IN MANHOLE
506.7AMH15 0255
504.8DSZ—
0MWL—
0MWM—
200TFC—
402.9TFC—
129.2DSZ—
491.2TFC—
0AMH15 0256
8.1MGOMAG COATING 60%

Properties (4)

additional_info
SC305608
custom_field_two
4
customer
LACSD
datetime
2016-04-29T01:19:53-07:00
