Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 3, 2016, 03:37 PM

  • 15 0259_15 0258_20160803_095537.mp4

Date
08/03/2016
W/O
568734
Weather
Dry
Operator/Surveyor
N.ZAHREDDINE
Sewer ID
Z00627
PipeID
P12182
Time
8:37 AM
Certificate
U-109-7948
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K3416
Sewer Name
15 SAN JOSE CREEK TRUNK
City
CITY OF INDUSTRY
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
34
Purpose
Routine Assessment
Project
WO_568734_TV15001_MAY2016
Sewer Type
GRAVITY
Material
Reinforced Concrete Pipe
Shape
Circular
Height
18 in.
Upstream MH
15 0259
Downstream MH
15 0258
Dir. of Survey
Downstream
Length Surveyed
401.1 ft.
Total Length
401.1 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2111
O&M Rating
3
Overall Index
2
Overall Quick
—
Overall Rating
3
Pipe schematic from manhole 15 0259 to 15 0258
MH: 15 0259MH: 15 0258downstream0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 15 02590 ft. MWL - Water Level, 20 %of cross sectional area20.1 ft. MGO - General Observation - MAG.H.C. 30% START23.9 ft. OBZ - Obstacles Other, 5 %of cross sectional area, from 05 to 07 o'clock, Start - DEBRIS UNDER WATER75.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"181.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"279 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"377.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"399.2 ft. OBZ - Obstacles Other, 5 %of cross sectional area, from 05 to 07 o'clock, Finish - DEBRIS UNDER WATER399.2 ft. MGO - General Observation - MAG.H.C. 30%FINISH401.1 ft. VC - Vermin Cockroach401.1 ft. AMH - Downstream Manhole, Survey Ends - 15 0258

Observation photos (3)

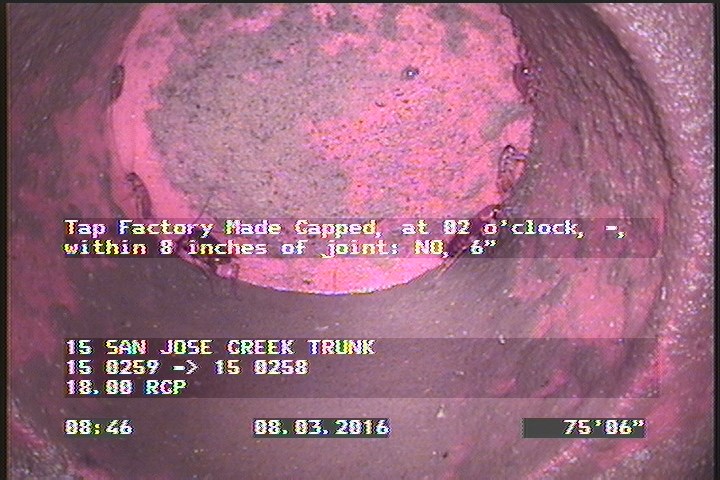

  • Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"

    75.5 ft. - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"

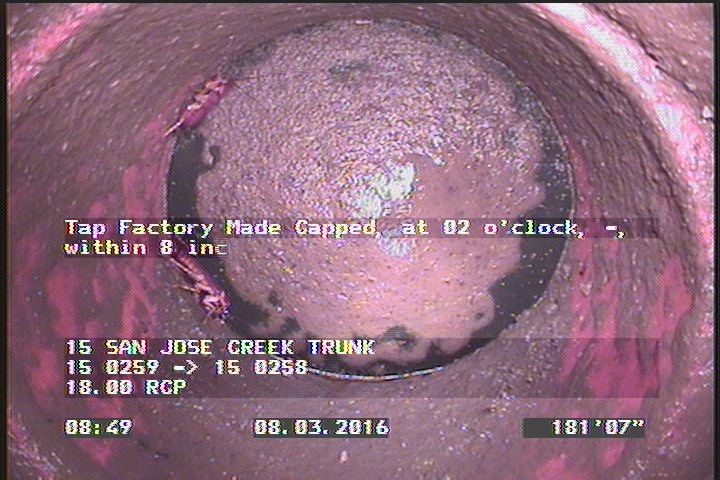

  • Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"

    181.5 ft. - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"

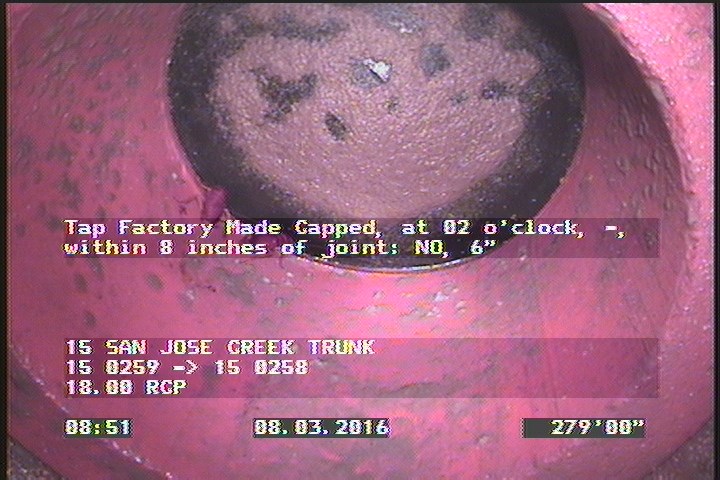

  • Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"

    279 ft. - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"

All inspections of P12182Work order 568734

Observations (13)

DistanceCodeObservation
20.1MGOMAG.H.C. 30% START
181.5TFC—
75.5TFC—
401.1VC—
23.9OBZDEBRIS UNDER WATER
401.1AMH15 0258
0MWM—
399.2OBZDEBRIS UNDER WATER
377.5TFC—
399.2MGOMAG.H.C. 30%FINISH
279TFC—
0AMH15 0259
0MWL—

Properties (4)

additional_info
SC305962
custom_field_two
4
customer
LACSD
datetime
2016-08-03T08:37:45-07:00
