Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 3, 2016, 04:23 PM

  • 15 0253_15 0252_20160803_103515.mp4

Date
08/03/2016
W/O
568734
Weather
Dry
Operator/Surveyor
N.ZAHREDDINE
Sewer ID
Z00627
PipeID
P12175
Time
9:23 AM
Certificate
U-109-7948
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K3416
Sewer Name
15 SAN JOSE CREEK TRUNK
City
CITY OF INDUSTRY
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
34
Purpose
Routine Assessment
Project
WO_568734_TV15001_MAY2016
Sewer Type
GRAVITY
Material
Reinforced Concrete Pipe
Shape
Circular
Height
18 in.
Upstream MH
15 0253
Downstream MH
15 0252
Dir. of Survey
Downstream
Length Surveyed
282 ft.
Total Length
282 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
1
O&M Quick
2112
O&M Rating
4
Overall Index
1
Overall Quick
—
Overall Rating
4
Pipe schematic from manhole 15 0253 to 15 0252
MH: 15 0253MH: 15 0252downstream0 ft. VC - Vermin Cockroach0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 15 02530 ft. MWL - Water Level, 25 %of cross sectional area2 ft. MGO - General Observation - MAG.H.C. 40% START54 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"79 ft. OBZ - Obstacles Other, 5 %of cross sectional area, from 05 to 07 o'clock, Start - DEBRIS UNDER WATER152.6 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"258.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"278.9 ft. OBZ - Obstacles Other, 5 %of cross sectional area, from 05 to 07 o'clock, Finish - DEBRIS UNDER WATER278.9 ft. MGO - General Observation - MAG.H.C. 40% FINISH282 ft. AMH - Downstream Manhole, Survey Ends - 15 0252282 ft. VC - Vermin Cockroach, within 8 inches of joint: NO

Observation photos (3)

  • Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"

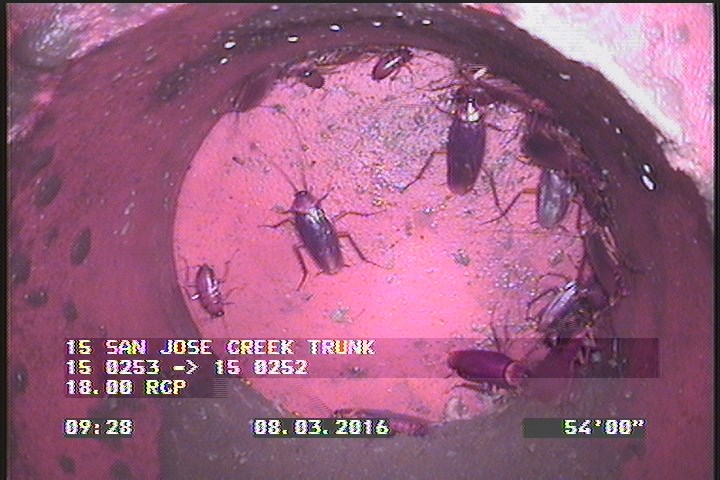

    54 ft. - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"

  • Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"

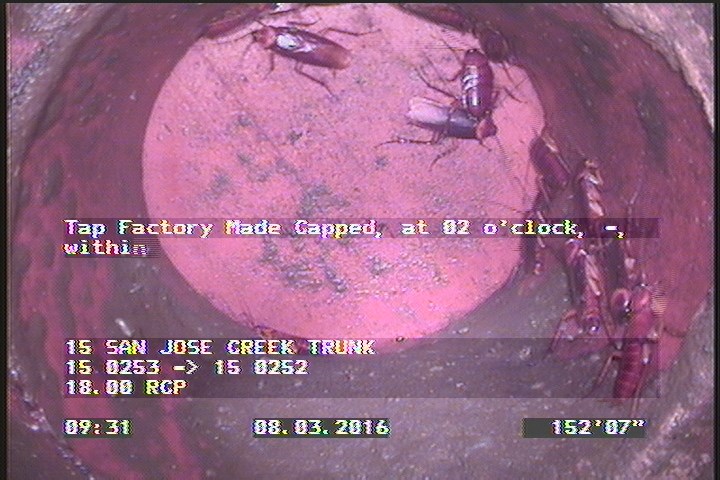

    152.6 ft. - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"

  • Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"

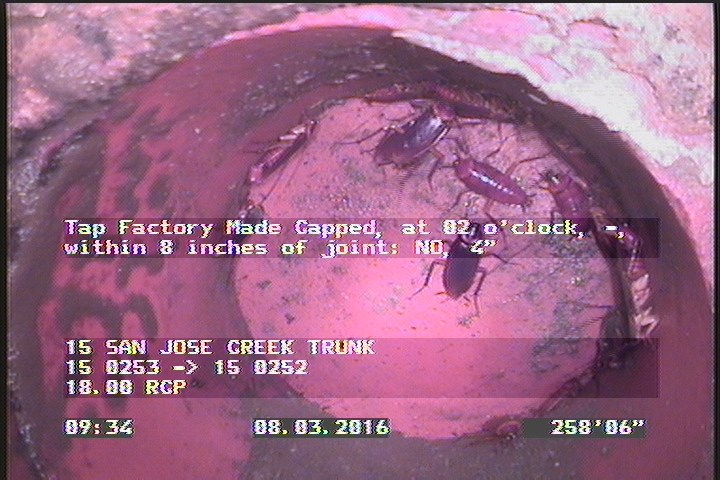

    258.5 ft. - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"

All inspections of P12175Work order 568734

Observations (13)

DistanceCodeObservation
79OBZDEBRIS UNDER WATER
0VC—
0MWM—
2MGOMAG.H.C. 40% START
0AMH15 0253
278.9OBZDEBRIS UNDER WATER
282AMH15 0252
282VC—
54TFC—
258.5TFC—
278.9MGOMAG.H.C. 40% FINISH
0MWL—
152.6TFC—

Properties (4)

additional_info
SC305962
custom_field_two
4
customer
LACSD
datetime
2016-08-03T09:23:01-07:00
