Wastewater/Activity/PacpInspection/1.0Apr 16, 2015, 09:53 AM
22 1448_22 1447_20150416_032759.mp4
- Date
- 04/16/2015
- W/O
- 496785
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00795
- PipeID
- P21156
- Time
- 2:53 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K2336
- Sewer Name
- 22 CAMERON RELIEF TRUNK
- City
- WEST COVINA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 35
- Purpose
- V
- Project
- WO_496785_TV22009_2015MARCH
- Sewer Type
- GRAVITY
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 33 in.
- Upstream MH
- 22 1447
- Downstream MH
- 22 1448
- Dir. of Survey
- Upstream
- Length Surveyed
- 378 ft.
- Total Length
- 378 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 412V
- O&M Rating
- 234
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 234
Observation photos (5)

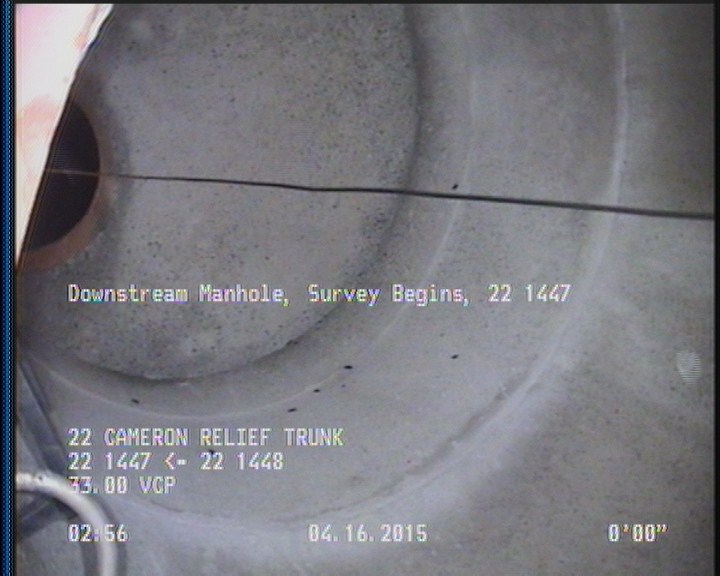

0 ft. - Downstream Manhole, Survey Begins - 22 1447

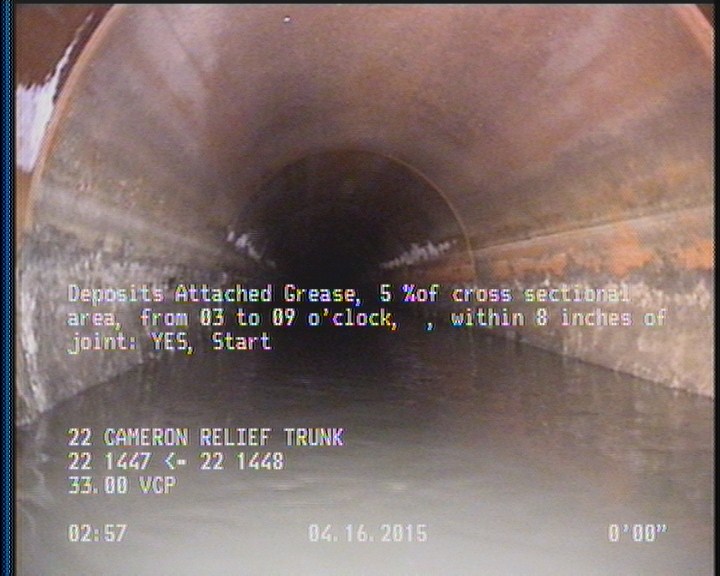

0 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

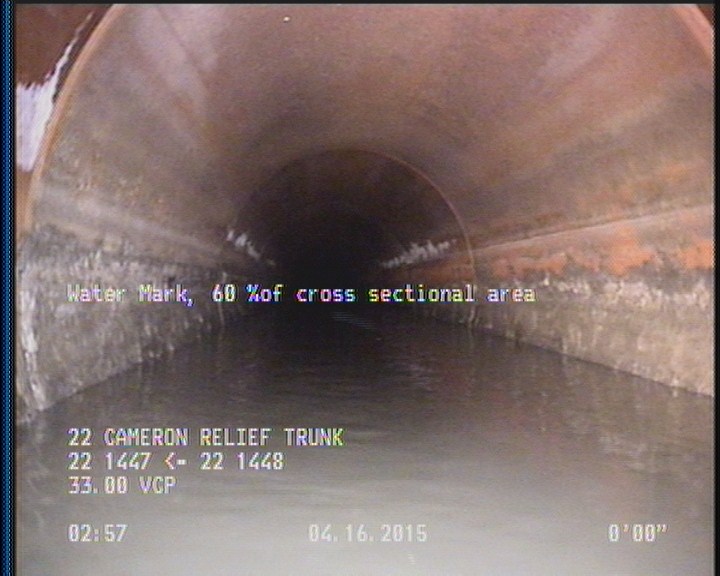

0 ft. - Water Mark, 60 %of cross sectional area

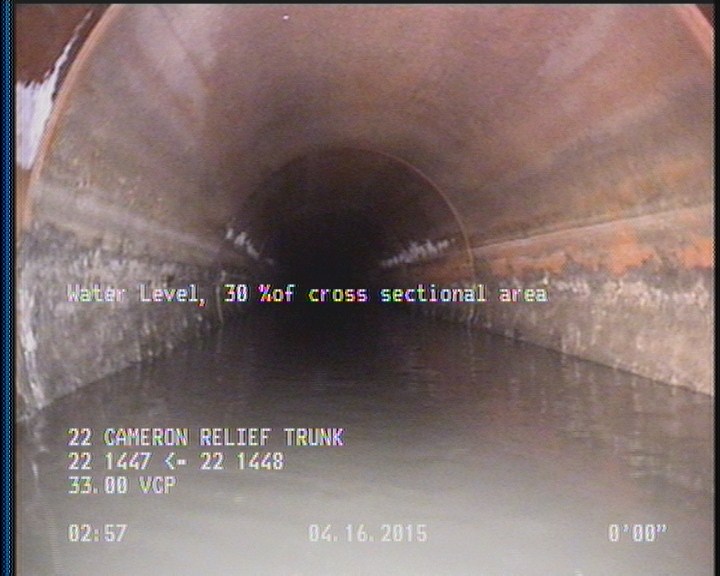

0 ft. - Water Level, 30 %of cross sectional area

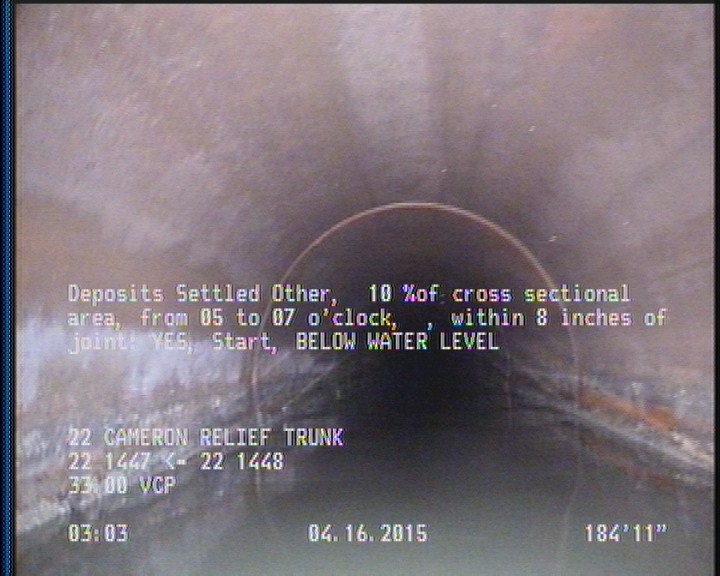

181.1 ft. - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start - BELOW WATER LEVEL
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 378 | DSZ | — |
| 0 | AMH | 22 1447 |
| 0 | DAGS | — |
| 0 | MGO | — |
| 378 | DAGS | — |
| 0 | MWM | — |
| 0 | MWL | — |
| 181.1 | DSZ | BELOW WATER LEVEL |
| 378 | MSA | DUE TO DEBRIS |
Properties (5)
- additional_info
- SC207761
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2015-04-16T02:53:16-07:00
- year_laid
- 19930211
