Wastewater/Activity/PacpInspection/1.0Apr 21, 2015, 05:30 AM
22 1363_22 1362_20150420_223321.mp4
- Date
- 04/20/2015
- W/O
- 496785
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00795
- PipeID
- P16644
- Time
- 10:30 PM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K2359
- Sewer Name
- 22 CAMERON RELIEF TRUNK
- City
- WEST COVINA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 31
- Purpose
- Routine Assessment
- Project
- WO_496785_TV22009_2015MARCH
- Sewer Type
- GRAVITY
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 24 in.
- Upstream MH
- 22 1363
- Downstream MH
- 22 1362
- Dir. of Survey
- Downstream
- Length Surveyed
- 34 ft.
- Total Length
- 34 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 0
- Overall Quick
- —
- Overall Rating
- 0
Observation photos (4)

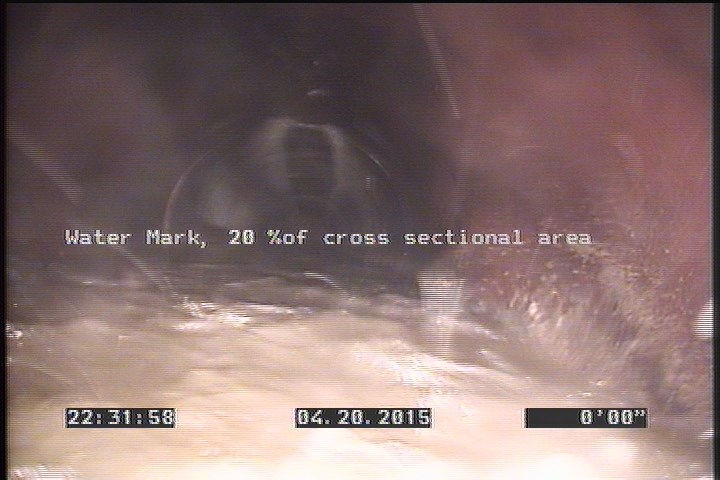

0 ft. - Water Mark, 20 %of cross sectional area

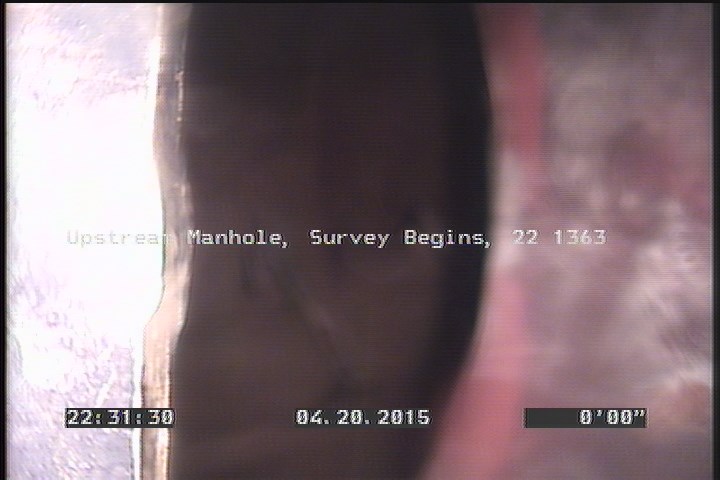

0 ft. - Upstream Manhole, Survey Begins - 22 1363

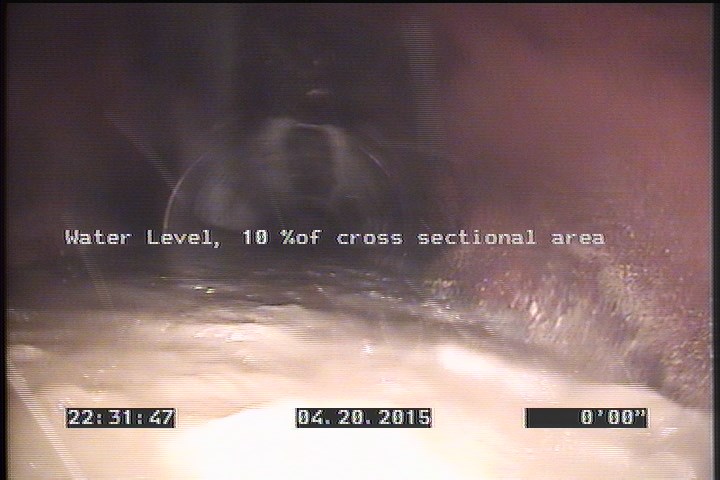

0 ft. - Water Level, 10 %of cross sectional area

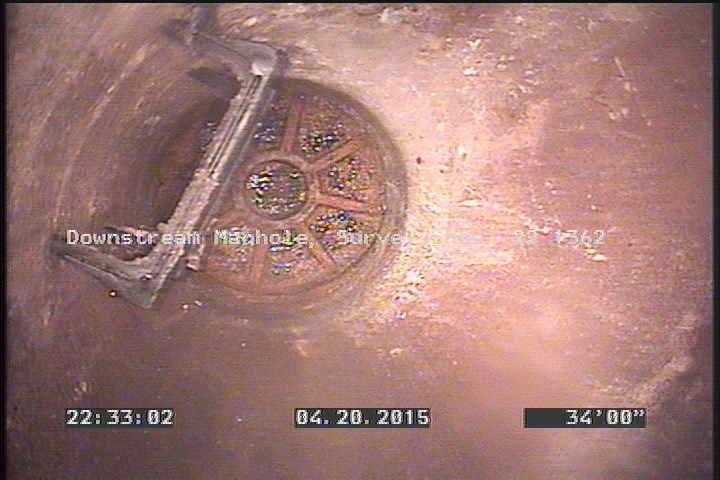

34 ft. - Downstream Manhole, Survey Ends - 22 1362
Observations (4)
| Distance | Code | Observation |
|---|---|---|
| 34 | AMH | 22 1362 |
| 0 | MWM | — |
| 0 | AMH | 22 1363 |
| 0 | MWL | — |
Properties (5)
- additional_info
- 200712
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2015-04-20T22:30:59-07:00
- year_laid
- 19890123
