Wastewater/Activity/PacpInspection/1.0Apr 13, 2015, 11:36 AM
22 1385_22 1384_20150413_045535.mp4
- Date
- 04/13/2015
- W/O
- 496785
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00795
- PipeID
- P16627
- Time
- 4:36 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K2335
- Sewer Name
- 22 CAMERON RELIEF TRUNK
- City
- WEST COVINA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 36
- Purpose
- Routine Assessment
- Project
- WO_496785_TV22009_2015MARCH
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 27 in.
- Upstream MH
- 22 1385
- Downstream MH
- 22 1384
- Dir. of Survey
- Downstream
- Length Surveyed
- 347.6 ft.
- Total Length
- 347.6 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2S00
- O&M Rating
- 200
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 200
Observation photos (6)

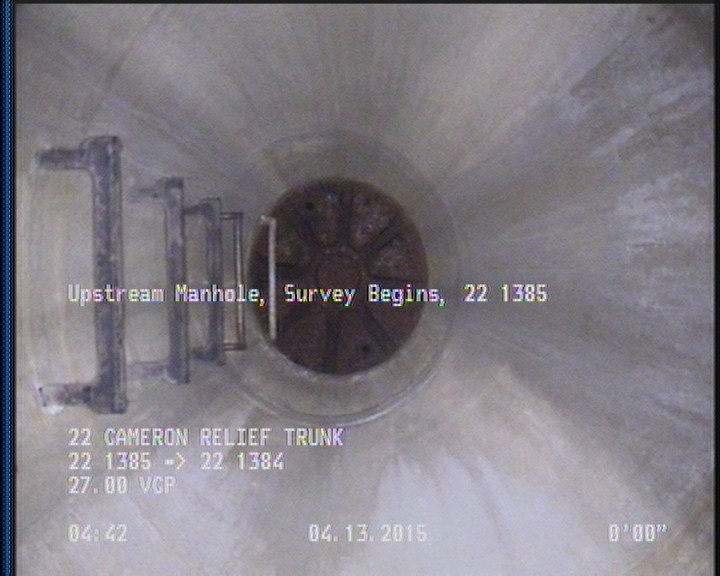

0 ft. - Upstream Manhole, Survey Begins - 22 1385

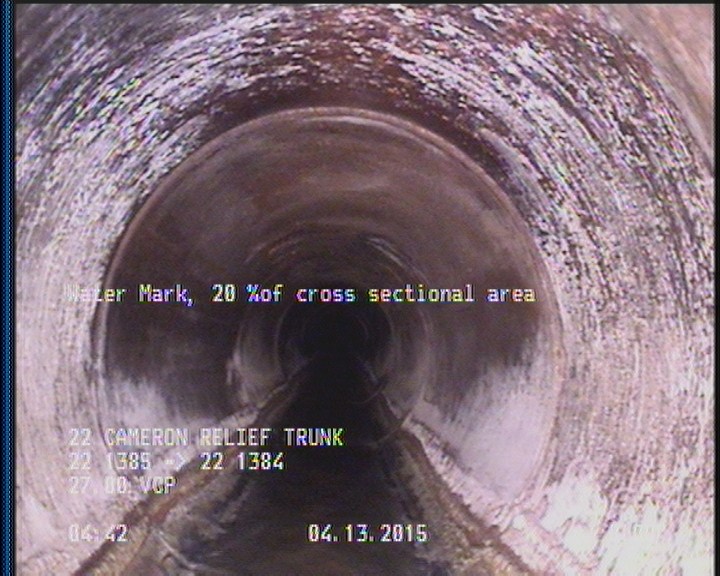

0 ft. - Water Mark, 20 %of cross sectional area
0 ft. - Water Level, 10 %of cross sectional area

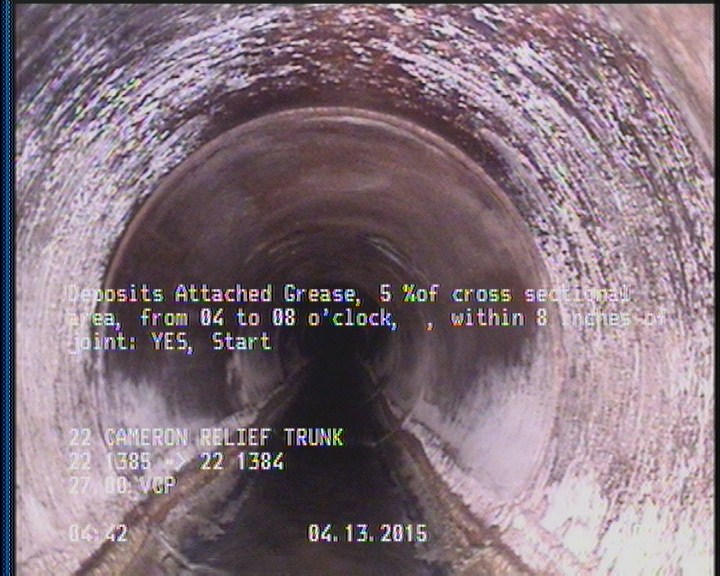

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

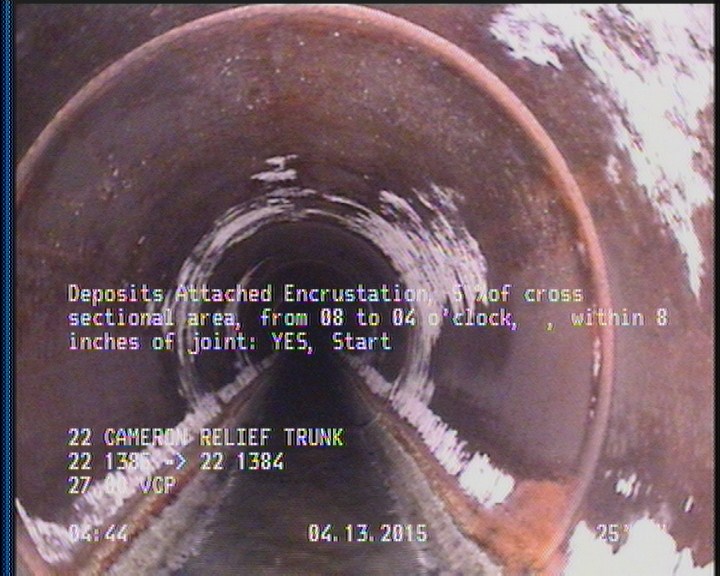

25.4 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start

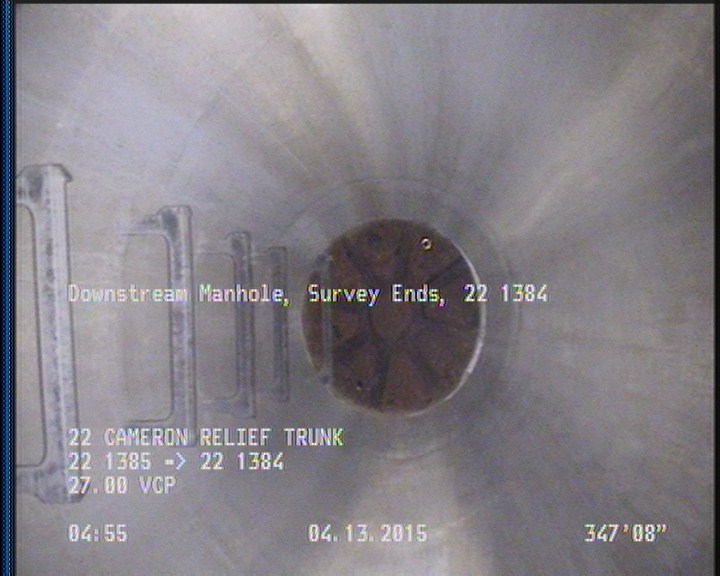

347.6 ft. - Downstream Manhole, Survey Ends - 22 1384
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 2 | DAGS | — |
| 25.4 | DAE | — |
| 0 | AMH | 22 1385 |
| 0 | MWM | — |
| 0 | MWL | — |
| 179.4 | DAE | — |
| 347.6 | AMH | 22 1384 |
| 345.2 | DAGS | — |
Properties (6)
- additional_info
- SC207758
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2015-04-13T04:36:05-07:00
- sewer_category
- GRAVITY
- year_laid
- 19890723
