Wastewater/Activity/PacpInspection/1.0Aug 24, 2017, 05:48 AM
18 0816_18 0815 _23082017_225811.mp4
- Date
- 08/23/2017
- W/O
- 651582
- Weather
- Dry
- Operator/Surveyor
- JUAN B
- Sewer ID
- Z00707
- PipeID
- P14679
- Time
- 10:48 PM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K4697
- Sewer Name
- 18 SO WHITTIER OUTFALL TR, SECT 5
- City
- WHITTIER
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 20
- Purpose
- Routine Assessment
- Project
- WO_651582_TV18113_AUG2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 18 0816
- Downstream MH
- 18 0815
- Dir. of Survey
- Downstream
- Length Surveyed
- 208.2 ft.
- Total Length
- 208.2 ft.
- Structural Index
- 4
- Structural Quick
- 4100
- Structural Rating
- 4
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 6
Observation photos (2)

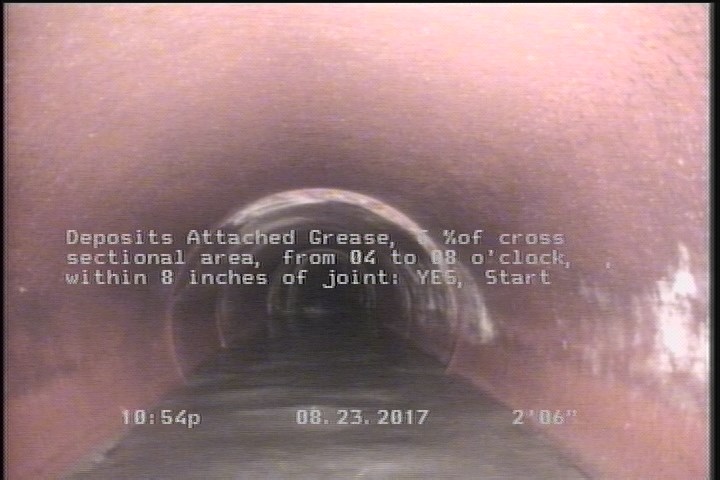

2.5 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

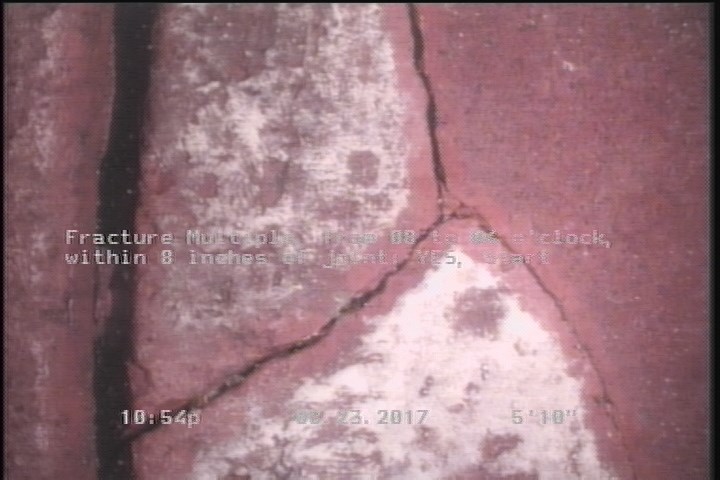

5.9 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 2.5 | DAGS | — |
| 208.2 | MGO | CONNECTION AT 3 OC |
| 0 | MWM | — |
| 208.2 | DAGS | — |
| 5.9 | FM | — |
| 107.8 | TB | — |
| 0 | AMH | 18 0816 |
| 11.6 | TBA | — |
| 208.2 | FM | — |
| 56.8 | TB | — |
| 208.2 | AMH | 18 0815 |
Properties (5)
- additional_info
- SC345636
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2017-08-23T22:48:09-07:00
- sewer_category
- Gravity
