Wastewater/Activity/PacpInspection/1.0Jul 26, 2017, 11:50 PM
- Date
- 07/26/2017
- W/O
- 651582
- Weather
- Dry
- Operator/Surveyor
- COREY D
- Sewer ID
- Z00707
- PipeID
- P14685
- Time
- 4:50 PM
- Certificate
- U-912-159863
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K4783
- Sewer Name
- 18 SO WHITTIER OUTFALL TR, SECT 5
- City
- WHITTIER
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 20
- Purpose
- Routine Assessment
- Project
- WO_651582_TV18113_AUG2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 18 0822
- Downstream MH
- 18 0821
- Dir. of Survey
- Downstream
- Length Surveyed
- 82.4 ft.
- Total Length
- 82.4 ft.
- Structural Index
- 4
- Structural Quick
- 4B00
- Structural Rating
- 56
- O&M Index
- 2
- O&M Quick
- 2B00
- O&M Rating
- 32
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 88
Observation photos (4)

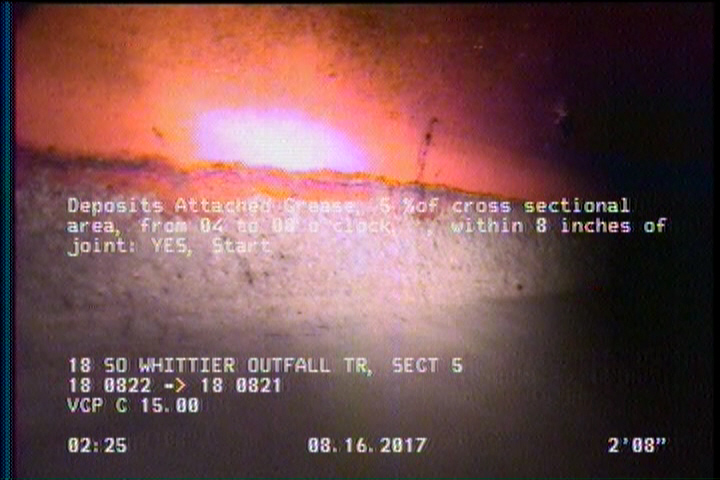

2.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

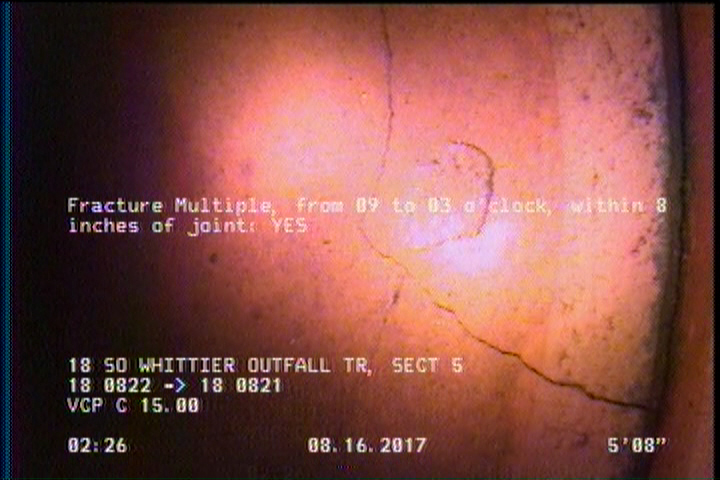

5.1 ft. - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

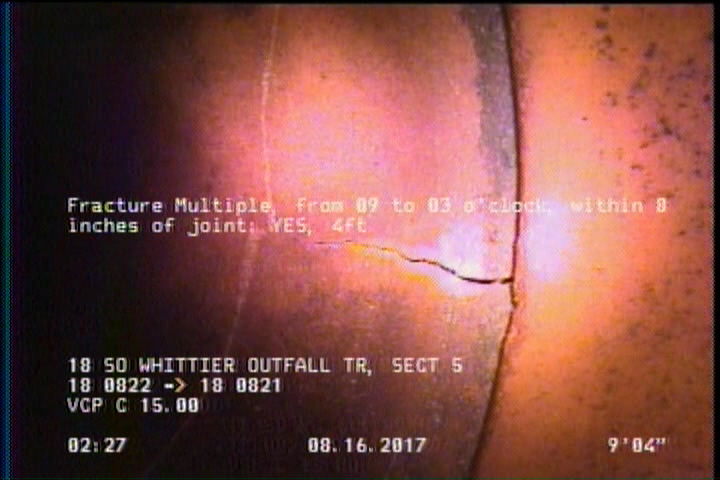

9 ft. - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, 4ft

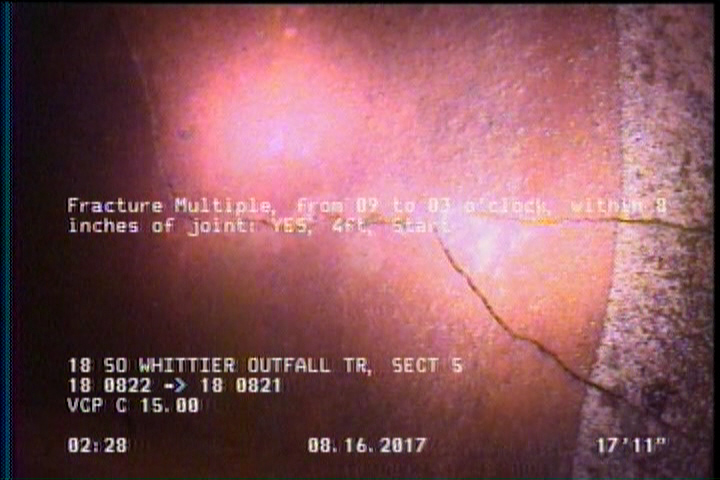

17.1 ft. - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, 4ft, Start
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 79.1 | FM | — |
| 41 | TB | — |
| 47 | TBC | — |
| 79.1 | DAGS | — |
| 9 | FM | — |
| 17.1 | FM | — |
| 0 | AMH | 18 0822 |
| 5.1 | FM | — |
| 82.4 | AMH | 18 0821 |
| 0 | MWM | — |
| 2.1 | DAGS | — |
| 82.1 | MGO | CONNECTION AT MH |
| 0 | MWL | — |
Properties (5)
- additional_info
- SC344613
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2017-07-26T16:50:42-07:00
- sewer_category
- Gravity
