Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 18, 2014, 09:45 PM

  • 22 0276_22 0275_20141222_073152.mp4

Date
12/18/2014
W/O
480783
Weather
Dry
Operator/Surveyor
ERU
Sewer ID
Z00793
PipeID
P16562
Time
1:45 PM
Certificate
123456
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K1986-SC189551
Sewer Name
22 CAMERON TRUNK, SECTS 1,2,&3
City
WEST COVINA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
36
Purpose
Routine Assessment
Project
WO_480783_TV22015_2014DECEMBER
Material
Reinforced Concrete Pipe
Shape
Circular
Height
15 in.
Upstream MH
22 0275
Downstream MH
22 0276
Dir. of Survey
Upstream
Length Surveyed
332.3 ft.
Total Length
332.3 ft.
Structural Index
3
Structural Quick
3L00
Structural Rating
189
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
189
Pipe schematic from manhole 22 0275 to 22 0276
MH: 22 0275MH: 22 0276upstream0 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: NO, 8"0 ft. AMH - Upstream Manhole, Survey Ends - 07323.2 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish76.8 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: YES, 6"181.1 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: YES, 6"278 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: YES, 6"316 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start330 ft. MGO - General Observation - MAG COATING THROUGHOUT PIPE332.3 ft. MWL - Water Level, 15 %of cross sectional area332.3 ft. AMH - Downstream Manhole, Survey Begins - 0717332.3 ft. MWM - Water Mark, 20 %of cross sectional area332.3 ft. TFA - Tap Factory Made Active, at 03 o'clock, -, within 8 inches of joint: NO, 8"

Observation photos (2)

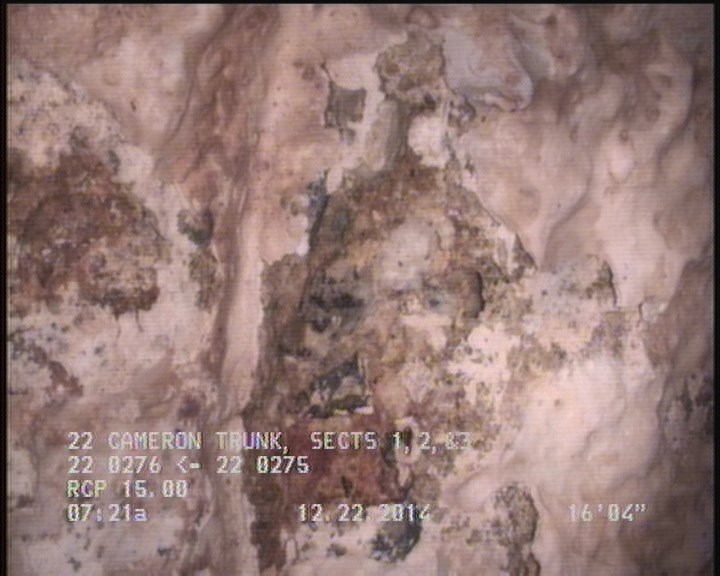

  • General Observation - MAG COATING THROUGHOUT PIPE

    2.3 ft. - General Observation - MAG COATING THROUGHOUT PIPE

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    16.3 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P16562Work order 480783

Observations (12)

DistanceCodeObservation
0MWL—
16.3SAV—
255.5TFA—
332.3TF—
0AMH0717
329.1SAV—
0MWM—
0TFA—
151.2TFA—
332.3AMH0732
54.3TFC—
2.3MGOMAG COATING THROUGHOUT PIPE

Properties (4)

custom_field_two
CR 3
customer
LACSD
datetime
2014-12-18T13:45:35-08:00
sewer_category
GRAVITY
