Wastewater/Activity/PacpInspection/1.0Sep 28, 2017, 05:41 AM
14 1124_14 1123_09272017_224152.mp4
- Date
- 09/27/2017
- W/O
- 658225
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z01179
- PipeID
- P26076
- Time
- 10:41 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4736
- Sewer Name
- 14 WEST SIDE RELIEF TRUNK
- City
- LANCASTER
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 14
- Page No.
- 10
- Purpose
- Routine Assessment
- Project
- WO_658225_TV14056_SEP2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 24 in.
- Width
- 24 in.
- Upstream MH
- 14 1124
- Downstream MH
- 14 1123
- Dir. of Survey
- Downstream
- Length Surveyed
- 9.3 ft.
- Total Length
- 9.3 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2300
- O&M Rating
- 6
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 6
Observation photos (2)

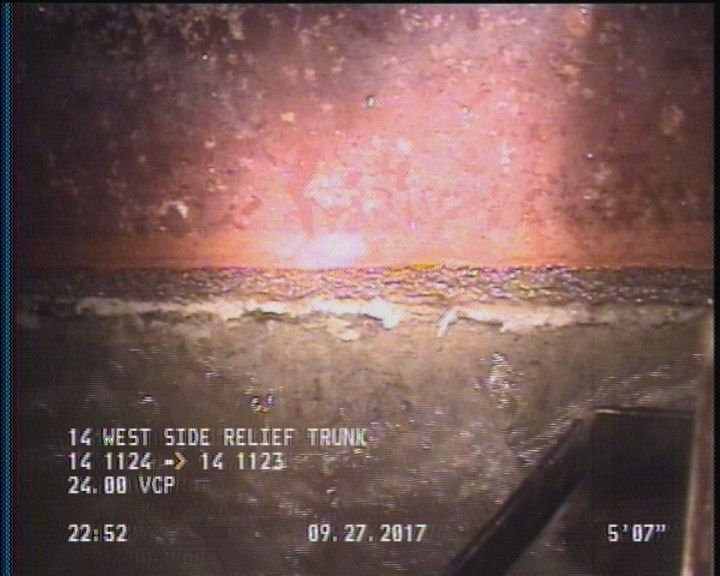

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
5.6 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 8.2 | DAGS | — |
| 0 | MWM | — |
| 0 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 5.6 | DAE | — |
| 0 | MWL | — |
| 0 | AMH | 14 1124 |
| 2 | DAGS | — |
| 9.3 | AMH | 14 1123 |
Properties (6)
- additional_info
- SC345749
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-09-27T22:41:36-07:00
- sewer_category
- Gravity
- year_laid
- 40175
