Wastewater/Activity/PacpInspection/1.0Sep 26, 2017, 06:29 AM
14 1114_14 1113_09252017_232932.mp4
- Date
- 09/25/2017
- W/O
- 658225
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z01179
- PipeID
- P26066
- Time
- 11:29 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4734
- Sewer Name
- 14 WEST SIDE RELIEF TRUNK
- City
- LANCASTER
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 14
- Page No.
- 10
- Purpose
- Routine Assessment
- Project
- WO_658225_TV14056_SEP2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 24 in.
- Width
- 24 in.
- Upstream MH
- 14 1114
- Downstream MH
- 14 1113
- Dir. of Survey
- Downstream
- Length Surveyed
- 31.7 ft.
- Total Length
- 31.7 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2600
- O&M Rating
- 12
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 12
Observation photos (1)

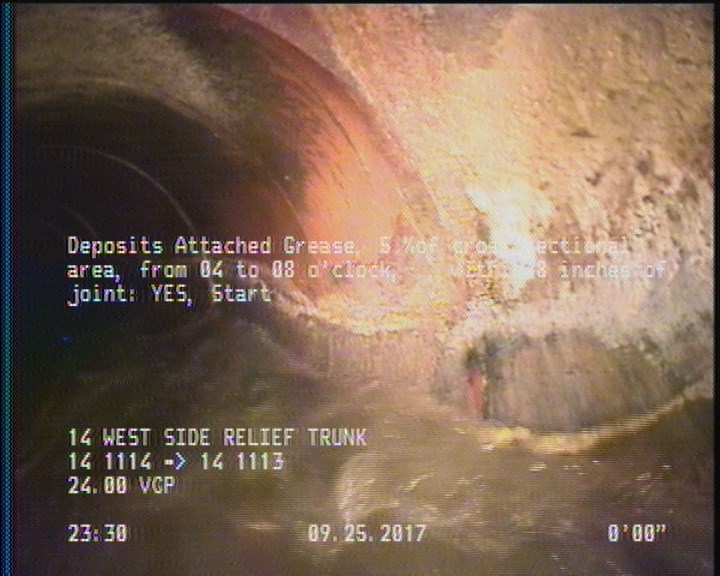

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (6)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 30.6 | DAGS | — |
| 2 | DAGS | — |
| 0 | MWL | — |
| 0 | AMH | 14 1114 |
| 31.7 | AMH | 4 1113 |
Properties (6)
- additional_info
- SC345747
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-09-25T23:29:01-07:00
- sewer_category
- Gravity
- year_laid
- 40175
