Wastewater/Activity/PacpInspection/1.0Oct 30, 2017, 03:41 PM
03 0043_03 0042_10302017_084926.mp4
- Date
- 10/30/2017
- W/O
- 0671123
- Weather
- Dry
- Operator/Surveyor
- SANTIAGO OBREGON
- Sewer ID
- Z00366
- PipeID
- P05063
- Time
- 8:41 AM
- Certificate
- U-1014-06022541
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7549
- Sewer Name
- 03 LOS COYOTES DIAGONAL TRUNK
- City
- LAKEWOOD
- Loc. details
- Main Highway - Suburban/Rural
- Location Code
- B
- Use of Sewer
- Sanitary Sewer
- District
- District 03
- Page No.
- 09
- Purpose
- Maintenance Related
- Project
- 20171030SHO_LOS_COYOTES_DIAGONAL_TRUNK
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Upstream MH
- 03 0043
- Downstream MH
- 03 0042
- Dir. of Survey
- Downstream
- Length Surveyed
- 106.7 ft.
- Total Length
- 106.7 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 4
- O&M Quick
- 4131
- O&M Rating
- 7
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 7
Observation photos (3)

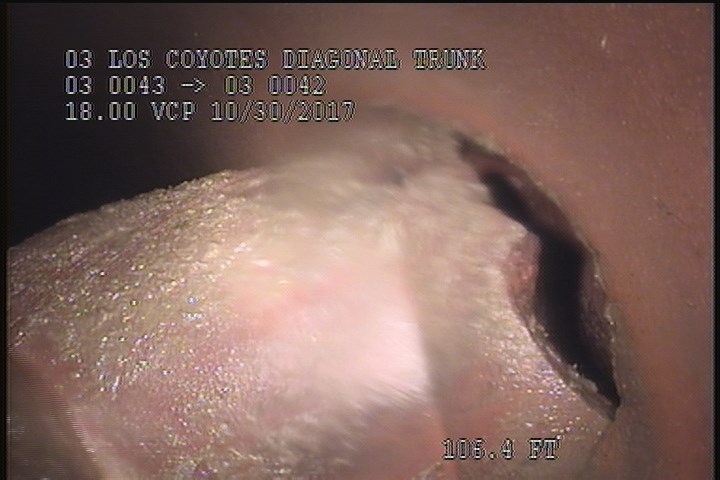

106.4 ft. - Tap Factory Made Intruding, at 02 o'clock, -, -, within 8 inches of joint: YES, 6", 5" - INTRUDING INTO THE WATER

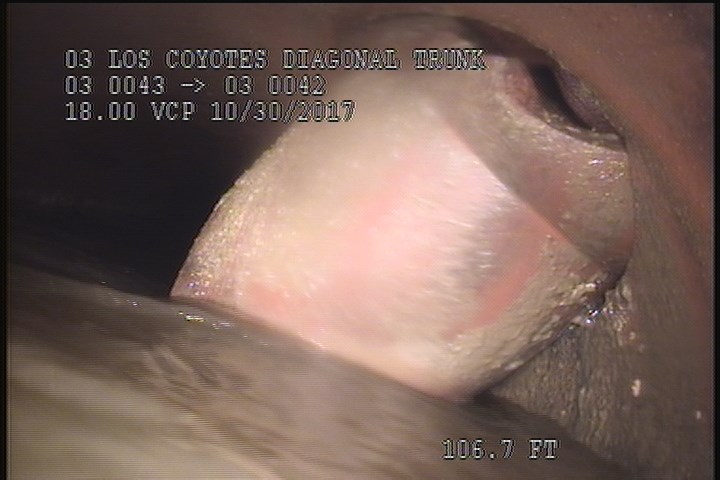

106.7 ft. - General Photograph - OF THE INTRUDING CONNECTION

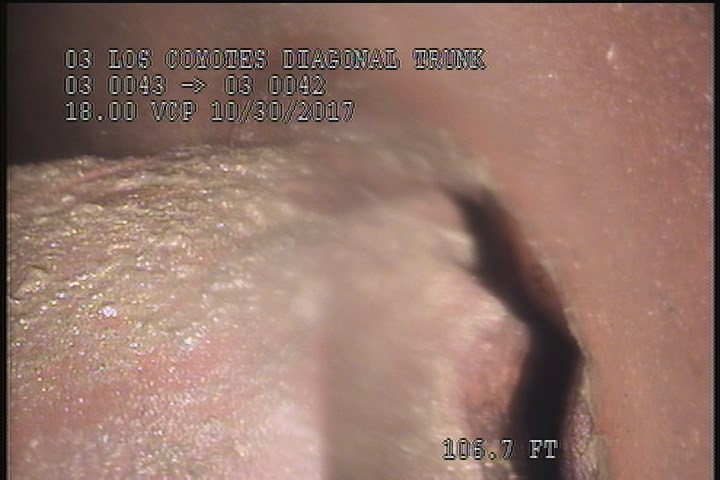

106.7 ft. - General Photograph - OF THE INTRUDING CONNECTION
Observations (6)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 0 | MWM | — |
| 0 | AMH | 0850 |
| 106.7 | MGP | OF THE INTRUDING CONNECTION |
| 106.4 | TFI | INTRUDING INTO THE WATER |
| 106.7 | MGP | OF THE INTRUDING CONNECTION |
Properties (5)
- additional_info
- LOOKING AT CONDITION OF INTRUDING CONNECTION
- custom_field_three
- 107' TO THE INTRUDING CONNECTION
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2017-10-30T08:41:30-07:00
