Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 23, 2017, 10:14 AM

  • Section#1_04 0088_04 0087__10232017__G6855.mp4

Date
10/23/2017
W/O
0667677
Weather
Dry
Operator/Surveyor
REVELES
Sewer ID
Z00417
PipeID
P11826
Time
3:14 AM
Certificate
U-115-06022630
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G6855
Sewer Name
04 WARING AVENUE TRUNK
City
West Hollywood
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 04
Page No.
01
Purpose
Capital Improvement Program Assesment
Project
10232017VMR_WARING_AVENUE_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Upstream MH
04 0088
Downstream MH
04 0087
Dir. of Survey
Downstream
Length Surveyed
287 ft.
Total Length
287 ft.
Structural Index
2
Structural Quick
342A
Structural Rating
39
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
39
Pipe schematic from manhole 04 0088 to 04 0087
MH: 04 0088MH: 04 0087downstream0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 03:00 AM0 ft. MWM - Water Mark, 20 %of cross sectional area2 ft. CC - Crack Circumferential, from 09 to 11 o'clock, within 8 inches of joint: YES7 ft. CM - Crack Multiple, from 12 to 03 o'clock, within 8 inches of joint: YES12.3 ft. CC - Crack Circumferential, from 01 to 03 o'clock, within 8 inches of joint: YES18.2 ft. CL - Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES18.6 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: YES, 4" - OPEN19.9 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES20.8 ft. CL - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES23.4 ft. CL - Crack Longitudinal, at 09 o'clock, within 8 inches of joint: YES27.7 ft. CL - Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES28 ft. TF - Tap Factory Made, at 11 o'clock, -, within 8 inches of joint: YES, 4" - OPEN29.5 ft. CL - Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES34.7 ft. CL - Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES37.2 ft. CL - Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES45.2 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 4" - OPEN45.7 ft. CL - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES48.3 ft. CM - Crack Multiple, from 11 to 03 o'clock, within 8 inches of joint: YES51.7 ft. CL - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES59.5 ft. CM - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES59.6 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 4" - OPEN60.6 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 4"63.7 ft. CL - Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES66.5 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 4"76.8 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 4" - OPEN90.2 ft. CC - Crack Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES90.5 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 4"91 ft. CL - Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES97.9 ft. CM - Crack Multiple, from 09 to 11 o'clock, within 8 inches of joint: YES287 ft. AMH - Downstream Manhole, Survey Ends - 04:23 AM

Observation photos (1)

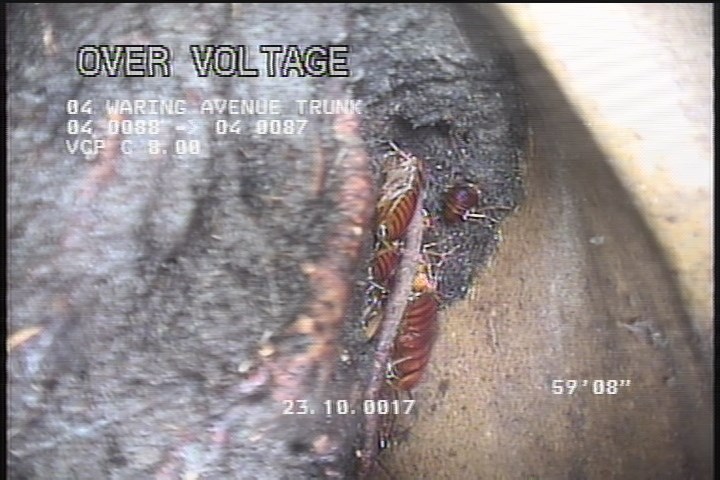

  • Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 4" - OPEN

    59.6 ft. - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 4" - OPEN

All inspections of P11826Work order 0667677

Observations (31)

DistanceCodeObservation
59.5CM—
59.6TFOPEN
2CC—
37.2CL—
18.6TFOPEN
66.5TF—
0MWL—
19.9CL—
0AMH03:00 AM
60.6TF—
90.2CC—
34.7CL—
51.7CL—
23.4CL—
48.3CM—
91CL—
76.8TFOPEN
45.2TFOPEN
90.5TFA—
7CM—
63.7CL—
287AMH04:23 AM
27.7CL—
0MWM—
45.7CL—
29.5CL—
18.2CL—
28TFOPEN
12.3CC—
97.9CM—
20.8CL—

Properties (3)

custom_field_two
3
customer
LACSD
datetime
2017-10-23T03:14:44-07:00
