30 0360_30 0359 _29082017_042752.mp4
- Date
- 08/29/2017
- W/O
- 652021
- Weather
- Dry
- Operator/Surveyor
- KYLE A.
- Sewer ID
- Z00854
- PipeID
- P17996
- Time
- 4:02 AM
- Certificate
- 07009000
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4807
- Sewer Name
- 30 CLIFTON P.P. FORCE MAIN GRAVITY TRUNK
- City
- REDONDO BEACH
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 30
- Page No.
- 07
- Purpose
- Routine Assessment
- Project
- WO_652021_TV30011_AUG2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 10 in.
- Width
- 10 in.
- Upstream MH
- 30 0359
- Downstream MH
- 30 0360
- Dir. of Survey
- Upstream
- Length Surveyed
- 211.5 ft.
- Total Length
- 211.5 ft.
- Structural Index
- 2
- Structural Quick
- 3428
- Structural Rating
- 28
- O&M Index
- 1
- O&M Quick
- 1100
- O&M Rating
- 1
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 29
Observation photos (12)
25.2 ft. - Crack Multiple, from 09 to 01 o'clock, within 8 inches of joint: YES
34.5 ft. - Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES
40.1 ft. - Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES
121.3 ft. - Crack Multiple, from 10 to 12 o'clock, within 8 inches of joint: YES
127.1 ft. - Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES
132.8 ft. - Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES
139.4 ft. - Crack Longitudinal, at 04 o'clock, within 8 inches of joint: YES
163.6 ft. - Crack Multiple, from 10 to 11 o'clock, within 8 inches of joint: YES

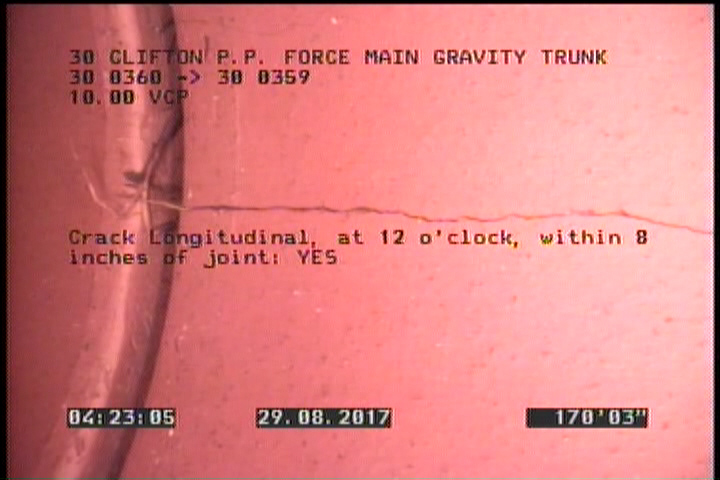

170.3 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

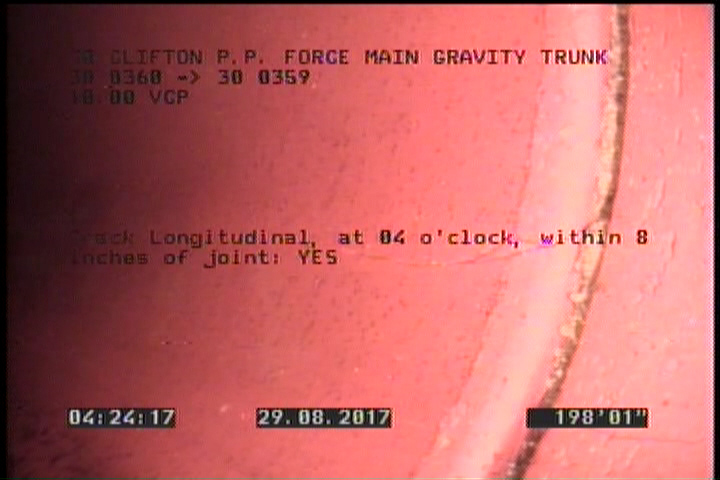

198.1 ft. - Crack Longitudinal, at 04 o'clock, within 8 inches of joint: YES

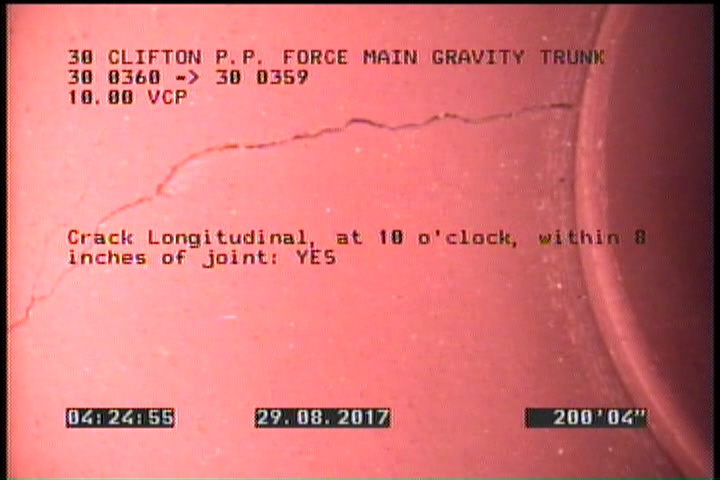

200.4 ft. - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES
201.2 ft. - Fracture Longitudinal, at 08 o'clock, within 8 inches of joint: YES
Observations (21)
| Distance | Code | Observation |
|---|---|---|
| 200.4 | CL | — |
| 64.7 | TB | — |
| 25.2 | CM | — |
| 201.2 | FL | — |
| 49.5 | TB | — |
| 90.8 | TB | — |
| 40.1 | CL | — |
| 132.8 | CL | — |
| 34.5 | CL | — |
| 121.3 | CM | — |
| 198.1 | CL | — |
| 211.5 | AMH | 30 0360 |
| 163.6 | RFJ | — |
| 0 | MWM | — |
| 0 | AMH | 30 0359 |
| 5.4 | TB | — |
| 170.3 | CL | — |
| 139.4 | CL | — |
| 163.6 | CM | — |
| 0 | MWL | — |
| 127.1 | CL | — |
Properties (5)
- additional_info
- SC353038
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-08-29T04:02:09-07:00
- sewer_category
- Gravity
