Wastewater/Activity/PacpInspection/1.0Aug 29, 2017, 11:49 AM
30 0362_30 0361 _29082017_053826.mp4
- Date
- 08/29/2017
- W/O
- 652021
- Weather
- Dry
- Operator/Surveyor
- KYLE A.
- Sewer ID
- Z00854
- PipeID
- P17998
- Time
- 4:49 AM
- Certificate
- 07009000
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4807
- Sewer Name
- 30 CLIFTON P.P. FORCE MAIN GRAVITY TRUNK.
- City
- REDONDO BEACH
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 30
- Page No.
- 07
- Purpose
- Routine Assessment
- Project
- WO_652021_TV30011_AUG2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 10 in.
- Width
- 10 in.
- Upstream MH
- 30 0362
- Downstream MH
- 30 0361
- Dir. of Survey
- Downstream
- Length Surveyed
- 90.3 ft.
- Total Length
- 90.3 ft.
- Structural Index
- 3
- Structural Quick
- 3321
- Structural Rating
- 11
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 11
Observation photos (4)

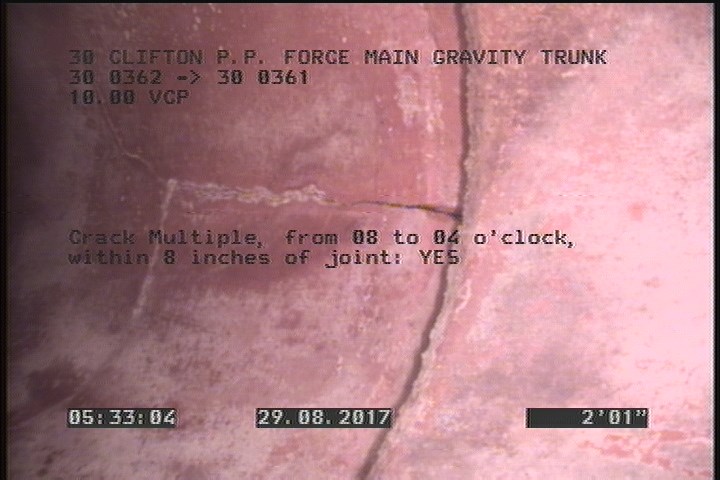

2.1 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

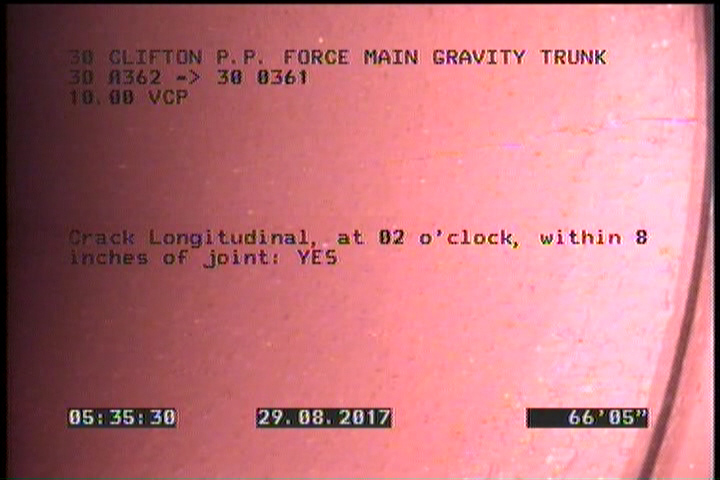

66.4 ft. - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES

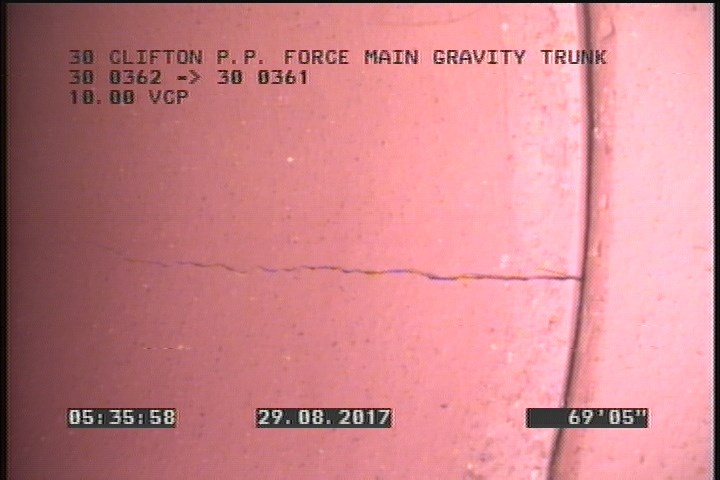

69.4 ft. - Fracture Longitudinal, at 11 o'clock, within 8 inches of joint: YES

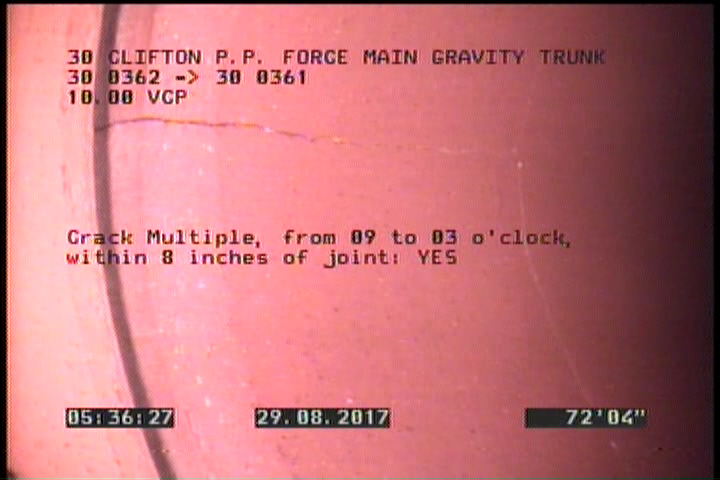

72.3 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 2.1 | CM | — |
| 0 | MWL | — |
| 45.8 | TB | — |
| 69.4 | FL | — |
| 90.3 | MSA | REACHED ABANDONED SURVEY MARK |
| 0 | AMH | 30 0362 |
| 72.3 | CM | — |
| 66.4 | CL | — |
| 0 | MWM | — |
Properties (5)
- additional_info
- SC353038
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-08-29T04:49:48-07:00
- sewer_category
- Gravity
