Wastewater/Activity/PacpInspection/1.0Sep 7, 2017, 06:37 AM
05 0941_05 0940 _06092017_233730.mp4
- Date
- 09/06/2017
- W/O
- 651797
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00548
- PipeID
- P06173
- Time
- 11:37 PM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4859
- Sewer Name
- 05 120TH STREET EXTENSION #2 TRUNK
- City
- INGLEWOOD
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 12
- Purpose
- Routine Assessment
- Project
- WO_651797_TV05001_AUG2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 05 0940
- Downstream MH
- 05 0941
- Dir. of Survey
- Upstream
- Length Surveyed
- 308.3 ft.
- Total Length
- 308.3 ft.
- Structural Index
- 3
- Structural Quick
- 3121
- Structural Rating
- 5
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 5
Observation photos (2)

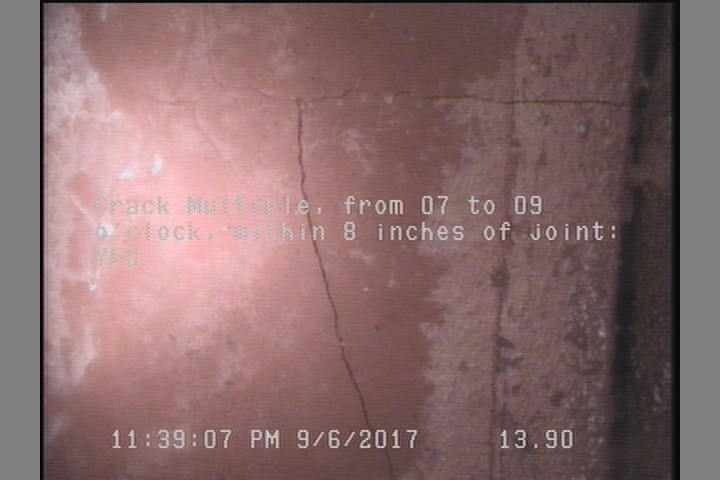

13.9 ft. - Crack Multiple, from 07 to 09 o'clock, within 8 inches of joint: YES

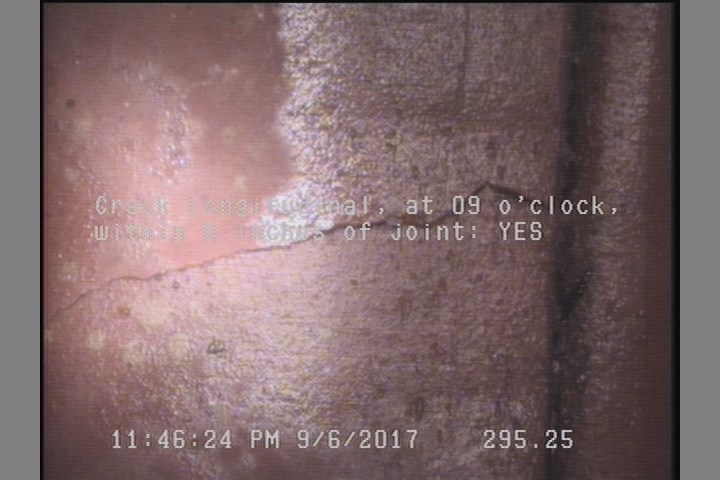

295.3 ft. - Crack Longitudinal, at 09 o'clock, within 8 inches of joint: YES
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 13.9 | CM | — |
| 295.3 | CL | — |
| 0 | MGO | CONNECTION AT MH 9 O'CLOCK |
| 0 | MWM | — |
| 308.3 | AMH | 05 0941 |
| 0 | AMH | 05 0940 |
| 307 | MGO | SPALLING THROUGHOUT THE REACH FROM 08 TO 04 O'CLOCK |
Properties (5)
- additional_info
- SC345918
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-09-06T23:37:06-07:00
- sewer_category
- Gravity
