Wastewater/Activity/PacpInspection/1.0Aug 30, 2017, 11:12 AM
F 0114_F 0113 _30082017_042413.mp4
- Date
- 08/30/2017
- W/O
- 651793
- Weather
- Dry
- Operator/Surveyor
- KYLE A.
- Sewer ID
- Z00041
- PipeID
- P10244
- Time
- 4:12 AM
- Certificate
- 07009000
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4809
- Sewer Name
- F JOINT OUTFALL F - UNIT 5
- City
- NORWALK
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 34
- Purpose
- Routine Assessment
- Project
- WO_651793_TV02237_AUG2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- F 0114
- Downstream MH
- F 0113
- Dir. of Survey
- Downstream
- Length Surveyed
- 346.3 ft.
- Total Length
- 346.3 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2200
- O&M Rating
- 4
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 4
Observation photos (5)

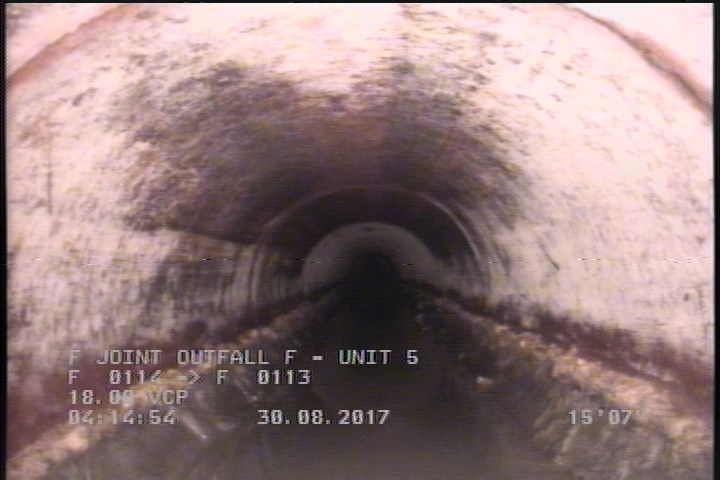

15.6 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: NO, Start

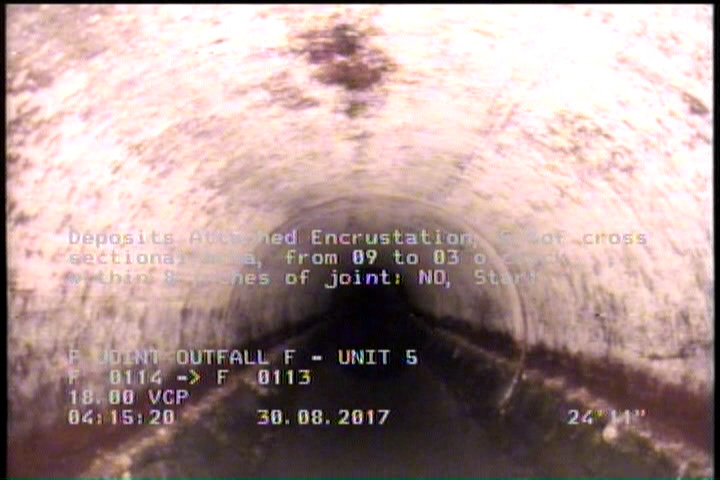

24.9 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: NO, Start

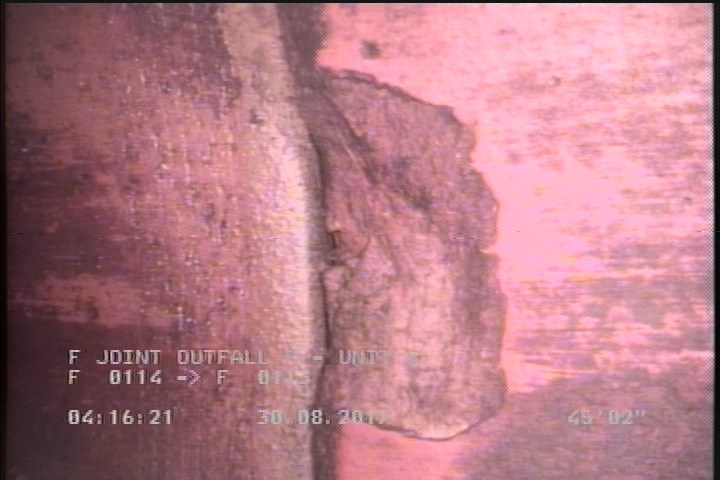

45.2 ft. - General Photograph - CHIP IN PIPE AT JOINT

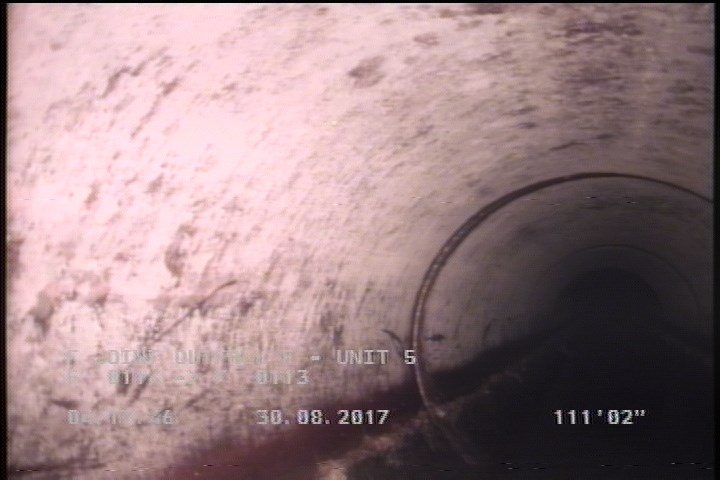

111.2 ft. - General Photograph

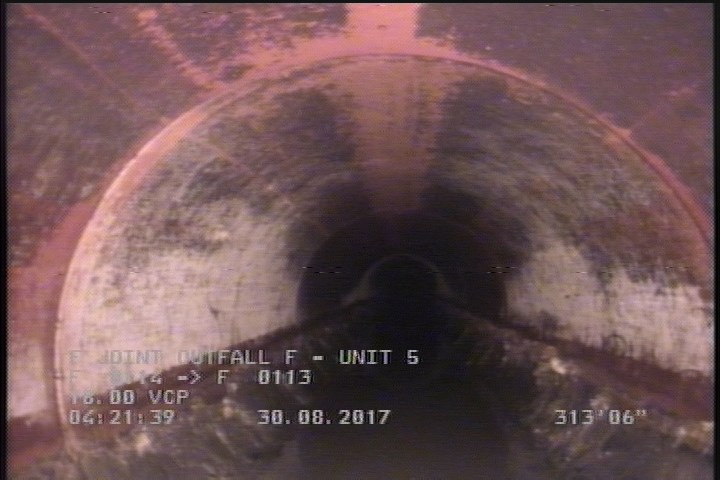

313.5 ft. - General Photograph
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 346.3 | AMH | F 0113 |
| 346.3 | MGO | UNKNOWN CONNECTION AT MH 3 OCLOCK |
| 0 | MWL | — |
| 0 | AMH | F 0114 |
| 24.9 | DAE | — |
| 313.5 | MGP | — |
| 45.2 | MGP | CHIP IN PIPE AT JOINT |
| 342.9 | DAGS | — |
| 15.6 | DAGS | — |
| 111.2 | MGP | — |
| 127.5 | DAE | — |
| 0 | MWM | — |
Properties (5)
- additional_info
- SC353041
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-08-30T04:12:43-07:00
- sewer_category
- Gravity
