Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 30, 2017, 07:45 AM

  • F 0103_F 0102 _30082017_012101.mp4

Date
08/30/2017
W/O
651793
Weather
Dry
Operator/Surveyor
KYLE A.
Sewer ID
Z00041
PipeID
P10233
Time
12:45 AM
Certificate
07009000
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4809
Sewer Name
F JOINT OUTFALL F - UNIT 5
City
NORWALK
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
33
Purpose
Routine Assessment
Project
WO_651793_TV02237_AUG2017
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
F 0103
Downstream MH
F 0102
Dir. of Survey
Downstream
Length Surveyed
261.3 ft.
Total Length
261.3 ft.
Structural Index
3
Structural Quick
3200
Structural Rating
6
O&M Index
2
O&M Quick
2200
O&M Rating
4
Overall Index
3
Overall Quick
—
Overall Rating
10
Pipe schematic from manhole F 0103 to F 0102
MH: F 0103MH: F 0102downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - F 01030 ft. MGO - General Observation - CONNECTION AT MH 3 OCLOCK23.2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: NO, Start60.8 ft. DSF - Deposits Settled Fine, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: NO, Start258.4 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: NO, Finish258.4 ft. DSF - Deposits Settled Fine, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: NO, Finish261.2 ft. MGO - General Observation - CONNECTION AT MH 3 OCLOCK261.3 ft. AMH - Downstream Manhole, Survey Ends - F 0102

Observation photos (1)

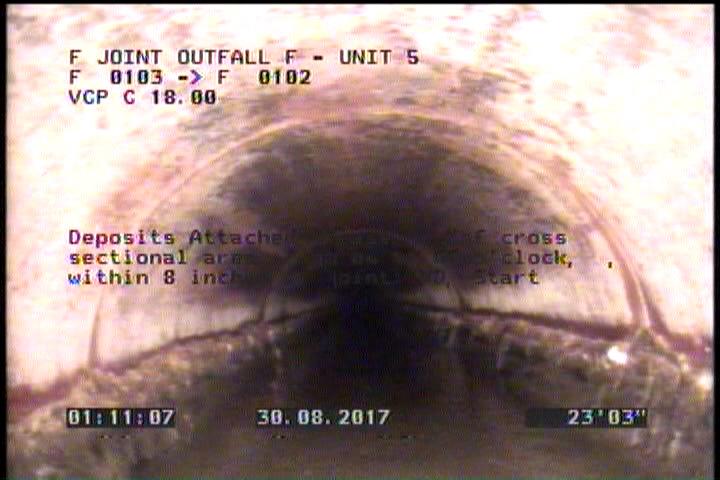

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: NO, Start

    23.2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: NO, Start

All inspections of P10233Work order 651793

Observations (10)

DistanceCodeObservation
0MWL—
261.3AMHF 0102
0MWM—
258.4DAGS—
0AMHF 0103
261.2MGOCONNECTION AT MH 3 OCLOCK
258.4DSF—
60.8DSF—
23.2DAGS—
0MGOCONNECTION AT MH 3 OCLOCK

Properties (5)

additional_info
SC353041
custom_field_two
4
customer
LACSD
datetime
2017-08-30T00:45:23-07:00
sewer_category
Gravity
