Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 30, 2017, 07:47 AM

  • F 0102_F 0101_30082017_013620.mp4

Date
08/30/2017
W/O
651793
Weather
Dry
Operator/Surveyor
KYLE A.
Sewer ID
Z00041
PipeID
P10232
Time
12:47 AM
Certificate
07009000
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4809
Sewer Name
F JOINT OUTFALL F - UNIT 5
City
NORWALK
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
33
Purpose
Routine Assessment
Project
WO_651793_TV02237_AUG2017
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
F 0102
Downstream MH
F 0101
Dir. of Survey
Downstream
Length Surveyed
269 ft.
Total Length
269 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2300
O&M Rating
6
Overall Index
2
Overall Quick
—
Overall Rating
6
Pipe schematic from manhole F 0102 to F 0101
MH: F 0102MH: F 0101downstream0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - F 01020 ft. MGO - General Observation - CONNECTION AT MH 3 OCLOCK0 ft. MWL - Water Level, 10 %of cross sectional area18.4 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: NO, Start99.2 ft. DAE - Deposits Attached Encrustation, 5 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: NO, Start163.1 ft. DSF - Deposits Settled Fine, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: NO, Start266.5 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: NO, Finish266.6 ft. DSF - Deposits Settled Fine, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: NO, Finish266.6 ft. DAE - Deposits Attached Encrustation, 5 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: NO, Finish269 ft. AMH - Downstream Manhole, Survey Ends - F 0101269 ft. MGO - General Observation - CONNECTION AT MH 3 OCLOCK

Observation photos (2)

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: NO, Start

    18.4 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: NO, Start

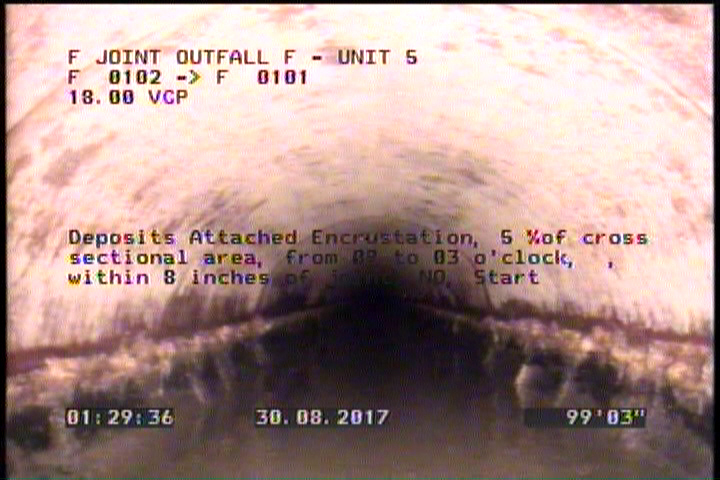

  • Deposits Attached Encrustation, 5 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: NO, Start

    99.2 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: NO, Start

All inspections of P10232Work order 651793

Observations (12)

DistanceCodeObservation
18.4DAGS—
266.5DAGS—
0MWM—
163.1DSF—
99.2DAE—
266.6DSF—
269AMHF 0101
0AMHF 0102
266.6DAE—
0MGOCONNECTION AT MH 3 OCLOCK
269MGOCONNECTION AT MH 3 OCLOCK
0MWL—

Properties (5)

additional_info
SC353041
custom_field_two
4
customer
LACSD
datetime
2017-08-30T00:47:29-07:00
sewer_category
Gravity
